Place of Origin:
Shanghai, China
Brand Name:
Carterberg
Certification:
IATF16949
Model Number:
CB-1141

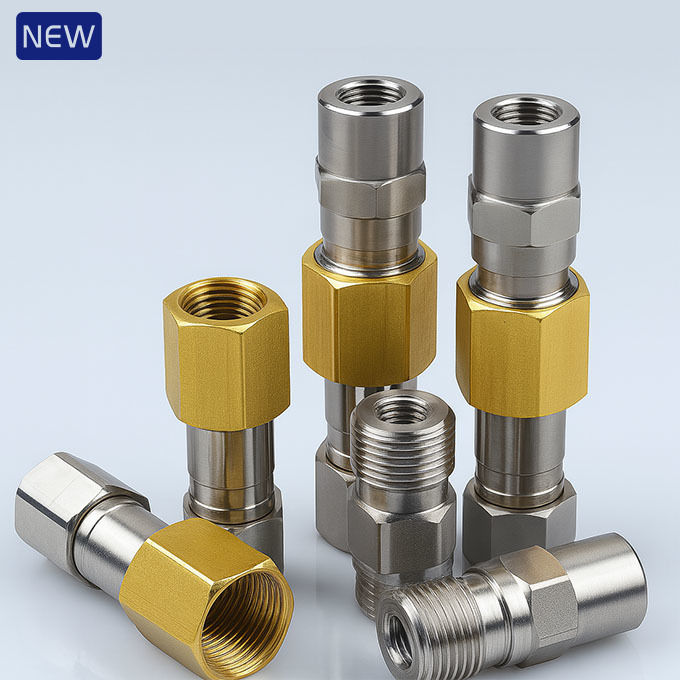

The CB-1141 quick coupler is designed for portable hydraulic jacks and high-pressure lifting systems. Featuring a 316 stainless steel body and a brass locking sleeve, it combines corrosion resistance with wear protection. The threaded locking mechanism ensures secure connections even in vibration-heavy environments, while the compact mating seal minimizes separation forces—allowing connection and disconnection under residual pressure up to 5000 PSI.
| Specification | Value |
|---|---|
| Body Size | 1/4 inch |
| Rated Pressure | 10,000 PSI |
| Rated Flow | 3 GPM |
| Temperature Range | -20°C to +120°C |
| Seal Material (Standard) | NBR (Nitrile Rubber) |
|
PART NO |
LS |
LP |
L |
HEX1 |
HEX2 |
HEX3 |
T |
|
CB-RK08SM-12S |
50.7 |
69.9 |
106.8 |
22 |
25 |
22 |
NPT1/4 |
CB-1141 is ideal for mobile hydraulic jacking tools used in roadside service trucks, vehicle lifting kits, and high-pressure maintenance systems. Its threaded design offers enhanced security, while the hybrid materials ensure performance across challenging environments.
• Proven under 10,000 PSI continuous duty cycles.
• Brass + stainless hybrid structure provides an ideal balance of strength and wear resistance.
• Safer in confined spaces thanks to anti-disconnect design.
• Field-tested compatibility with legacy 1141-style systems.
