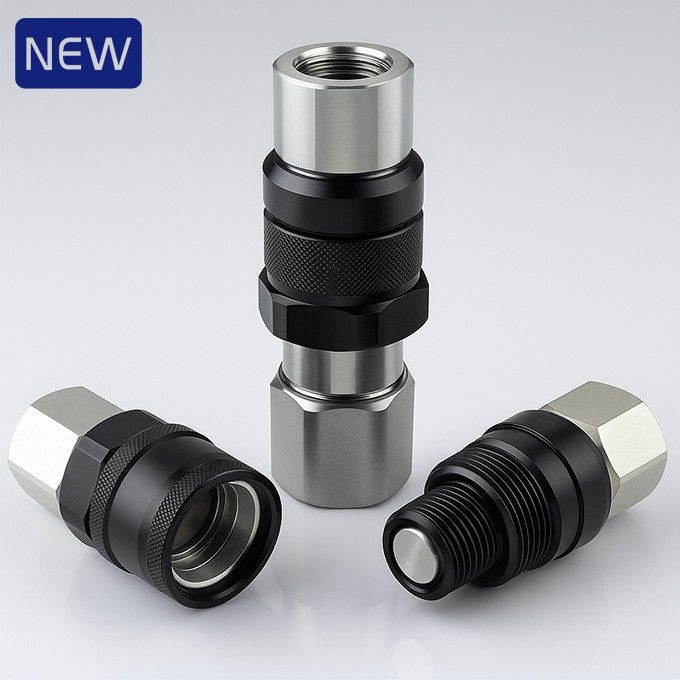

CB-SP-6FN-VEP is Carterberg's newly launched threaded quick coupling designed for demanding hydraulic systems requiring flat-face integrity and safe operation under residual pressure. As part of our latest product lineup, this model is currently categorized under our New Products section and will be migrated to a specific threaded coupler category after launch evaluation.
| Parameter | Value |
|---|---|
| Body Sizes Available | 1/2", 5/8", 3/4", 1", 1-1/2" |
| Rated Pressure | 7000 PSI (1/2" to 3/4")6000 PSI (1")5000 PSI (1-1/2") |
| Rated Flow | 12 – 152 GPM |
| Temperature Range | -20°C to +120°C |
| Standard Seal Material | NBR (Nitrile Rubber) |
| Valve Type | Flat-face, flush-valving |
| Locking System | Threaded sleeve, manual connect |
| Residual Pressure Capability | Yes |

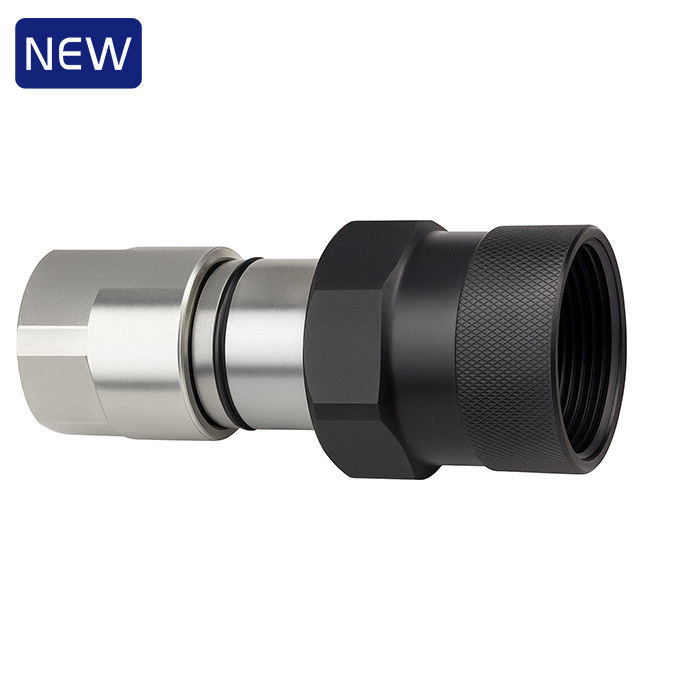

Female (Socket)
|
PART NO |
LS |
D |
HEX1 |
HEX2 |
A |
T |
|
CB-S4S-6FN-VEP |
103.5 |
Φ49 |
S36 六角 |
S46 六角 |
16.5 |
G1/2 NPT1/2 |
|
CB-S6S-6FN-VEP |
114 |
Φ53.7 |
S41 六角 |
S50 六角 |
20 |
G3/4 NPT3/4 |
|
CB-S8S-6FN-VEP |
133.5 |
Φ58.8 |
S46 六角 |
S55 六角 |
21 |
G1 NPT1 |
|
CB-S10S-6FN-VEP |
145.2 |
Φ68.7 |
S55 六角 |
S65 六角 |
21 |
G1-1/4 NPT1-1/4 |
|
CB-S12S-6FN-VEP |
187.5 |
Φ92 |
S65 六角 |
S85 六角 |
21 |
G1-1/2 NPT1-1/2 |

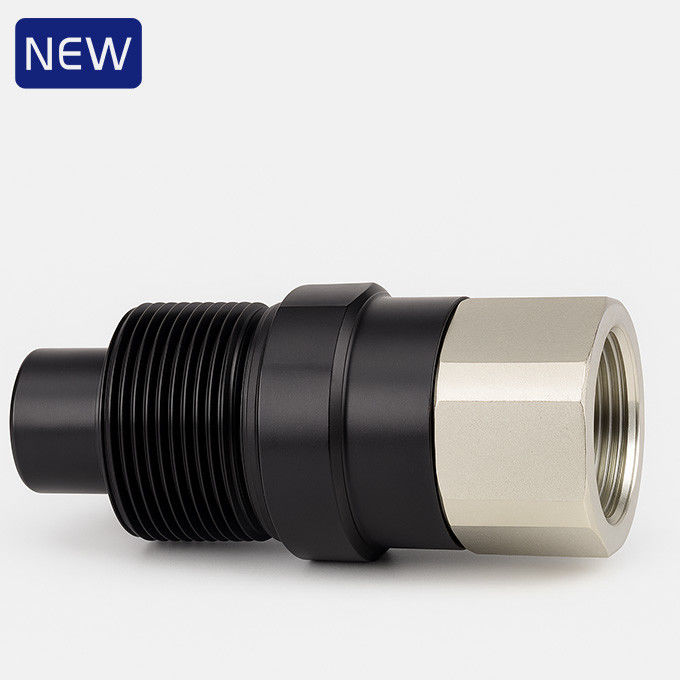

Male (Plug)
|
PART NO |
LS |
C |
d |
E |
HEX2 |
A |
T |
|
CB-P4S-6FN-VEP |
95 |
18.8 |
24.54 |
M40*3 |
S36 六角 |
16.5 |
G1/2 NPT1/2 |
|
CB-P6S-6FN-VEP |
98.8 |
19.5 |
27.04 |
M45*3 |
S36 六角 |
20 |
G3/4 NPT3/4 |
|
CB-P8S-6FN-VEP |
113.9 |
24 |
29.95 |
M50*3 |
S46 六角 |
21 |
G1 NPT1 |
|
CB-P10S-6FN-VEP |
123.5 |
24.8 |
36.05 |
M58*3 |
S55 六角 |
21 |
G1-1/4 NPT1-1/4 |
|
CB-P16S-6FN-VEP |
150 |
31.5 |
57 |
Tr80*4 |
S65 六角 |
21 |
G1-1/2 NPT1-1/2 |
Currently published as a New Product, CB-SP-6FN-VEP will be reassigned under the Carterberg Thread-to-Connect Flat-Face Coupler category following product launch assessment and market feedback.
