Place of Origin:
Shanghai, China
Brand Name:
Carterberg
Certification:
IATF16949
Model Number:
CB-SPS-3FM-B

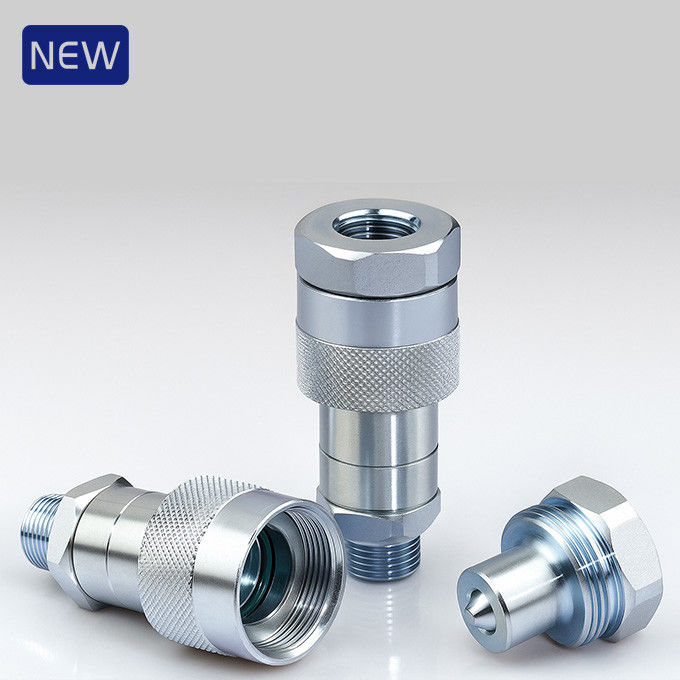

The CB-SPS-3FM-B is Carterberg’s latest addition to its high-pressure coupler lineup. Featuring a precision-machined thread-lock sleeve and compact steel body, this model is designed specifically for portable hydraulic jacks and other extreme-pressure systems. As a newly released item, it is currently listed in our New Arrivals section and will be formally categorized under the "Thread-to-Connect" family following its launch phase.
| Parameter | 1/4" Model | 3/8" Model |
|---|---|---|
| Rated Pressure | 10,000 PSI (690 bar) | 10,000 PSI (690 bar) |
| Flow Rate (Typical) | 3 GPM | 6 GPM |
| Temperature Range | -20°C to +120°C | -20°C to +120°C |
| Seal Material | NBR (standard) | NBR (standard) |
| Connection Style | Thread-to-connect | Thread-to-connect |
| Interchange Compatibility | Parker 3000 / Faster PVVM | Parker 3000 / Faster PVVM |

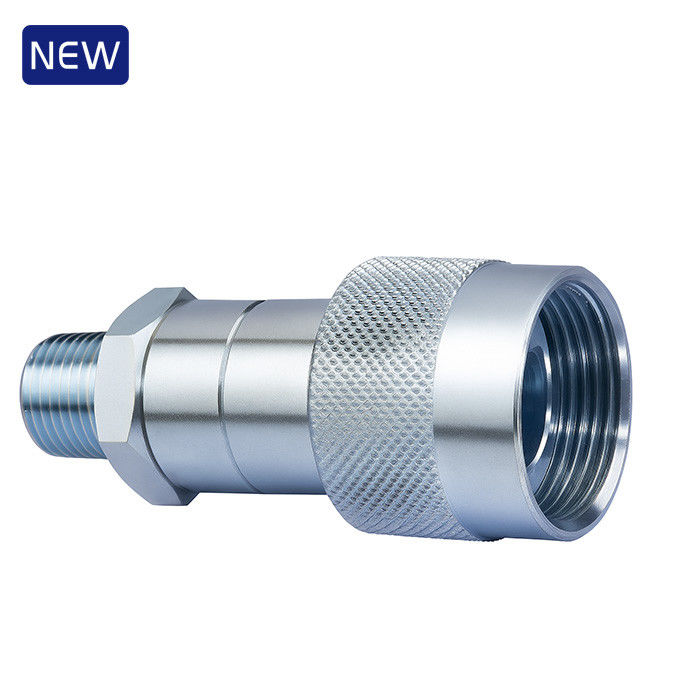

Female (Socket)
|
PART NO |
LS |
D |
HEX1 |
A |
T |
|
CB-S2S-3FM-B |
59.6 |
28.5 |
22 |
13.5 |
NPT1/4 |
|
CB-S3S-3FM-B |
72.5 |
35 |
25 |
14.4 |
NPT3/8 |

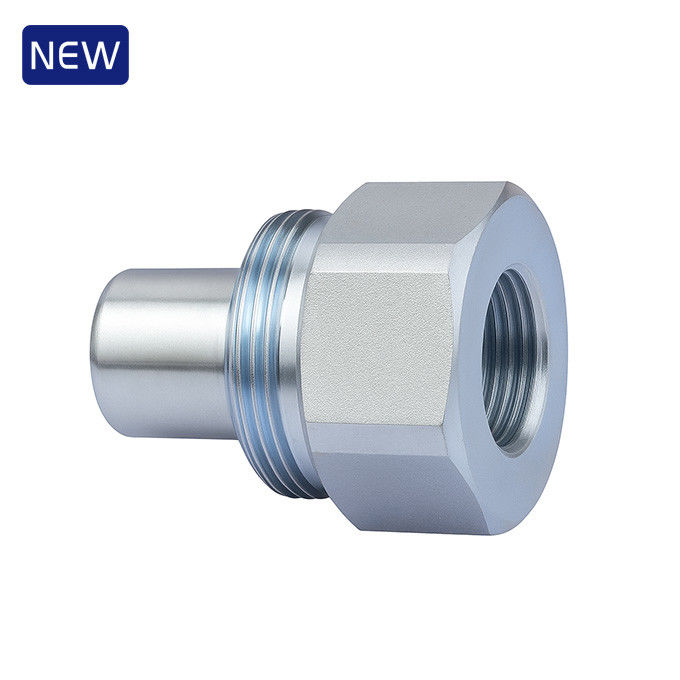

Male (Plug)
|
PART NO |
LP |
C |
HEX2 |
A |
T |
|
CB-P2S-3FM-B |
32.5 |
11.2 |
19 |
13 |
NPT1/4 |
|
CB-P3S-3FM-B |
35 |
16 |
32 |
13.5 |
NPT3/8 |
CB-SPS-3FM-B fills a unique gap in Carterberg's threaded coupler series. While other models are optimized for large flow rates or high-cycle use, this unit focuses on ultra-high pressure stability in a compact form factor. The threaded sleeve locking design minimizes the risk of accidental disconnection or backflow leakage—especially critical in hydraulic lifting tools, where personnel and equipment safety is paramount. Its compatibility with existing global coupler standards like Parker 3000 and Faster PVVM makes it a reliable drop-in upgrade for system integrators or OEM rebuilds.
Once the early-stage performance validation concludes, CB-SPS-3FM-B will be integrated into Carterberg’s Threaded Hydraulic Coupling category, alongside other high-pressure variants such as CB-SPS-3FN-FD86 and CB-SPS-3FN-W26000. Until then, it remains discoverable under the New Arrivals section for easy access and customer feedback.
