Name: threaded hydraulic quick couplings cb rk spm
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: CB-RK-SPM
Availability: InStock

Home > products > New Products >

threaded hydraulic quick couplings cb rk spm

Place of Origin:

Shanghai, China

Brand Name:

Carterberg

Certification:

IATF16949

Model Number:

CB-RK-SPM

Request A Quote

Product Details

Serise:

Threaded-hydraulic-quick-coupling

Size:

RK08, RK12, RK16, RK20, RK25

Material:

Carbon Steel, Zinc-Nickel Plated

Working Pressure:

6090 Psi

Rated Flow:

6 To 76 Gpm

Operating Temperature:

-30°C To +120°C

Application:

Special-Purpose Vehicles, Non-Leak Hydraulic Systems, Interchangeability In OEM Systems

Interchangeable:

Stucchi VR , Voswinkel RK Series

Payment & Shipping Terms

Minimum Order Quantity

Negotiation

Price

Negotiation

Packaging Details

carton

Delivery Time

7-20 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Supply Ability

5000~20000 pc/month

threaded hydraulic quick couplings cb sps 3f bd

Get Best Price

threaded-hydraulic-quick-couplings-cb-sps-6fm-ptr

Get Best Price

threaded-hydraulic-quick-couplings-cb-sps-6fn-vep

Get Best Price

threaded-hydraulic-quick-couplings-cb-sps-3fm-b

Get Best Price

86-021-37214610

Contact Now

Product Description

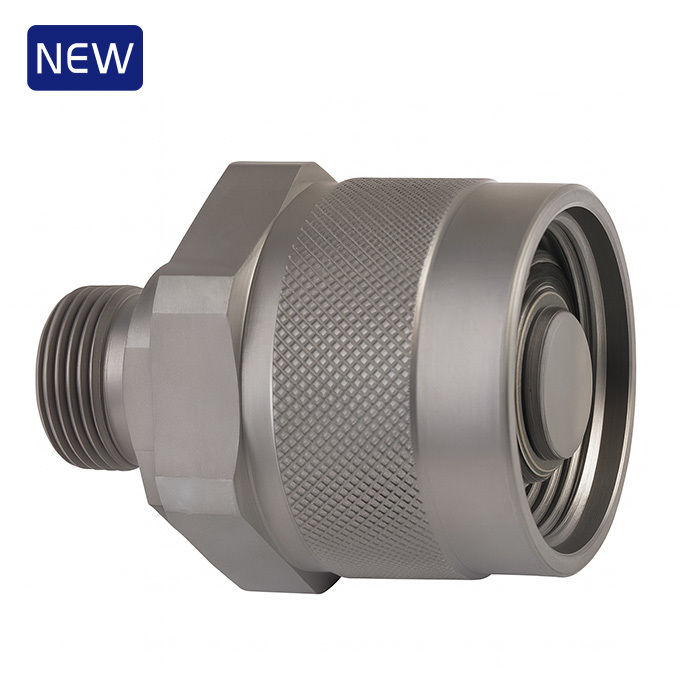

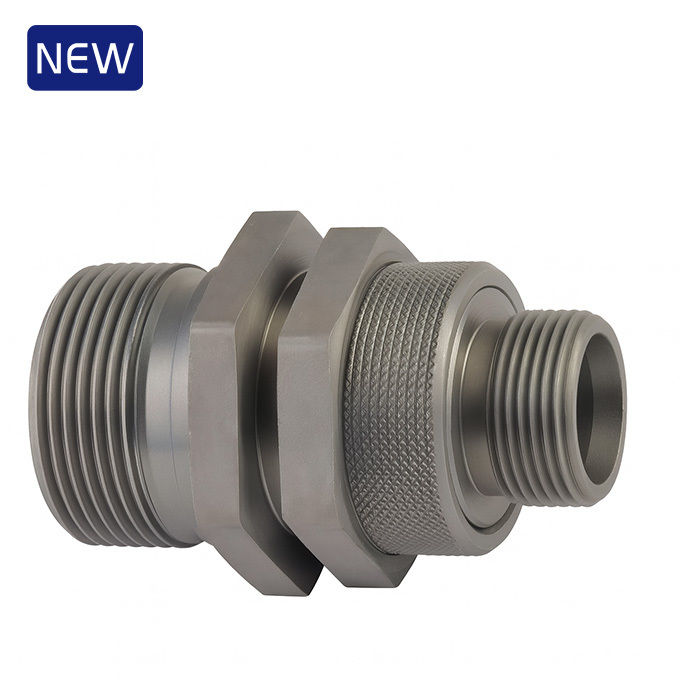

Carterberg CB-RK-SPM Thread-to-Connect Hydraulic Coupling

Flat-Face Valve | Residual Pressure Connect | Anti-Spill Design | Zinc Plated Steel

The Carterberg CB-RK-SPM is a thread-to-connect hydraulic quick coupling built for high-performance systems requiring clean disconnection and residual pressure compatibility. Designed with a flush-face valve structure and hardened threaded sleeve, this coupling ensures secure operation under demanding flow and impulse conditions — without the risk of fluid spillage. It is fully compatible with Stucchi VR and Voswinkel RK series, offering seamless interchangeability across various applications.

Key Features

• Flush-Face Design for No-Spill Performance

Valve interfaces seal tightly during connection and disconnection to prevent leakage or fluid loss.

• Residual Pressure Connect/Disconnect

Rated for up to 10 MPa (1450 PSI) residual pressure from either side — ideal for pressurized hydraulic systems in critical environments.

• Threaded Sleeve Locking Mechanism

Uses a steel sleeve with internal threads, providing secure mating with male thread fittings and strong resistance to vibration and separation.

• Zinc Nickel Plating for Corrosion Resistance

Advanced surface treatment ensures long-term anti-rust protection in harsh outdoor or mobile equipment settings.

• Valve Stop with Alignment Guard

Special valve stop retainer guarantees precise axial alignment and reliable sealing during use.

Technical Specifications

Parameter	Value
Sizes Available	RK08, RK12, RK16, RK20, RK25
Rated Pressure	6090 PSI (420 bar)
Flow Rate	6 to 76 GPM (based on size)
Temperature Range	-30°C to +120°C
Seal Material	NBR (Nitrile)
Standard Material	Carbon Steel, Zinc-Nickel Plated
Valve Type	Flat-Face, Two-Way Shut-Off
Connection Mechanism	Threaded Sleeve (Manual)
Residual Pressure Support	Up to 10 MPa (from both sides)

Dimensional Overview

Female (Socket)

PART NO	LS	D	HEX1	HEX3	A	T	H
CB-RK08SM-12S	63.4	39	S22	S32	12	M20*1.5	13.5
CB-RK08SM-10L	62.4	39	S22	S32	11	M16*1.5	13.5
CB-RK08SM-15L	63.4	39	S22	S32	14	M22*1.5	13.5
CB-RK12SM-16S	75.5	54.5	S24	S46	14	M24*1.5	17.5
CB-RK12SM-15L	73.5	54.5	S24	S46	12	M22*1.5	17.5
CB-RK16SM-20S	83	66	S32	S60	16	M30*2	22.5
CB-RK16SM-16S	81	66	S32	S60	14	M24*1.5	22.5
CB-RK16SM-18L	79	66	S32	S60	12	M26*1.5	22.5
CB-RK16SM-15L	79	66	S32	S60	12	M22*1.5	22.5
CB-RK20SM-25S	109	64	S41	S55	18	M36*2	26
CB-RK20SM-20S	107	64	S41	S55	16	M30*2	26
CB-RK20SM-28L	105	64	S41	S55	14	M36*2	26
CB-RK20SM-22L	105	64	S41	S55	14	M30*2	26
CB-RK20SM-18L	103	64	S41	S55	12	M26*1.5	26
CB-RK25SM-38S	135	91.2	S55	S80	23	M52*2	34.5
CB-RK25SM-35L	135	91.2	S55	S80	16	M45*2	34.5

Male (Plug)

PART NO	LP	d	HEX2	HEX4	HEX5	A	T	h
CB-RK08PM-12S	59	M32*3	S36	S36	S25	12	M20*1.5	24
CB-RK08PM-10L	58	M32*3	S36	S36	S25	11	M16*1.5	24
CB-RK08PM-15L	59	M32*3	S36	S36	S25	14	M22*1.5	24
CB-RK12PM-16S	75.5	M36*3	S41	S41	S32	14	M24*1.5	28.7
CB-RK12PM-15L	73.5	M36*3	S41	S41	S32	12	M22*1.5	28.7
CB-RK16PM-20S	79.2	M48*3	S55	S50	S15	16	M30*2	35.2
CB-RK16PM-16S	77.2	M48*3	S55	S50	S15	14	M24*1.5	35.2
CB-RK16PM-18L	75.2	M48*3	S55	S50	S15	12	M26*1.5	35.2
CB-RK16PM-15L	75.2	M48*3	S55	S50	S15	12	M22*1.5	35.2
CB-RK20PM-25S	97	M54*4	S55	S60	S46	18	M36*2	43.5
CB-RK20PM-20S	95	M54*4	S55	S60	S46	16	M30*2	43.5
CB-RK20PM-28L	93	M54*4	S55	S60	S46	14	M36*2	43.5
CB-RK20PM-22L	93	M54*4	S55	S60	S46	14	M30*2	43.5
CB-RK20PM-18L	91	M54*4	S55	S60	S46	12	M26*1.5	43.5
CB-RK25PM-38S	124.8	M79*4	S85		S55	22	M52*2	58
CB-RK25PM-35L	118.8	M79*4	S85		S55	16	M45*2	58

Application Scenarios

• Special-Purpose Vehicles

Such as fire engines, construction machinery, cleaning trucks, and mobile mixing equipment.

• Non-Leak Hydraulic Systems

Including any application requiring clean break couplings, spill-free fluid handling, and pressure-safe disconnection.

• Interchangeability in OEM Systems

Suitable for system upgrades or replacements with Stucchi VR / Voswinkel RK series.

Why It Matters

The CB-RK-SPM stands out in its category for combining no-spill connection, residual pressure compatibility, and robust threaded locking — all in a corrosion-resistant body. For engineers and system integrators seeking a cleaner, safer, and globally compatible solution, this Carterberg model delivers without compromise.
