Place of Origin:
Shanghai, China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-SP-6FN-PD

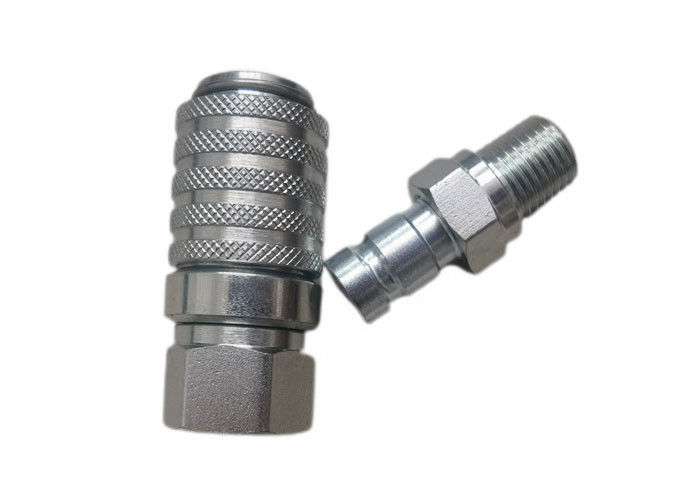

PD series Diagnostic Hydraulic Quick Couplings
Materials:

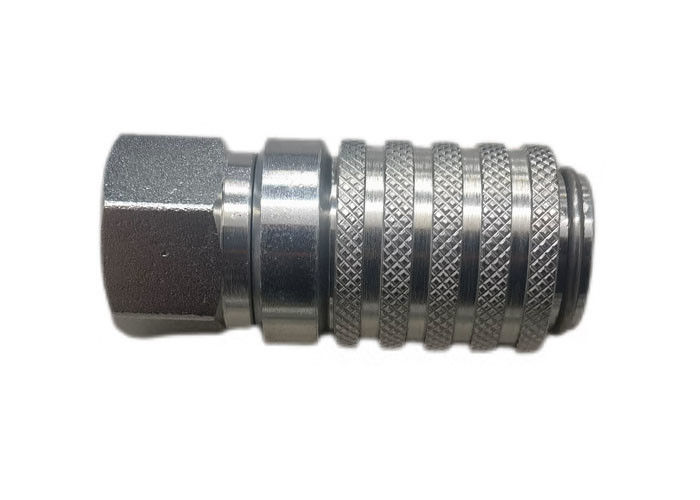

Coupling:Steel(zinc chromate plating)

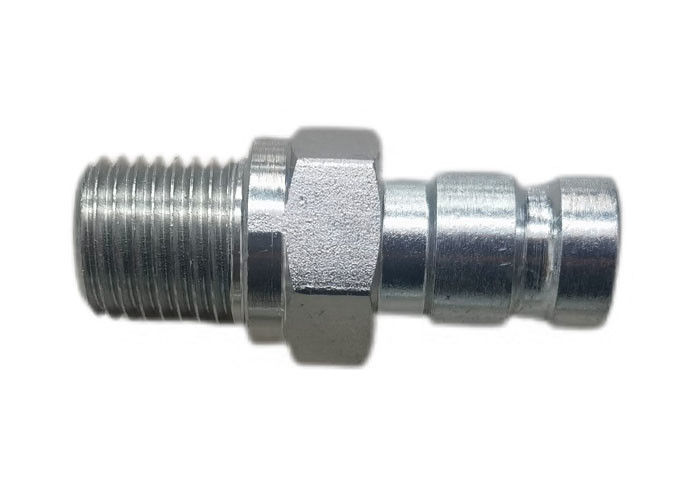

Nipple:Hardened steel(zinc chromate plating)
Features:
1, Nipples meet or exceed SAEJ 1502 and ISO 15171-1 design and performance specification Technical features
2, Diagnostic couplings provide easily accessible test points for performance testing of hydraulic and pneumatic systems.
3, A safety sleeve lock prevents accidental disconnection. Push-to-connect operation allows one hand operation when connecting the coupling;

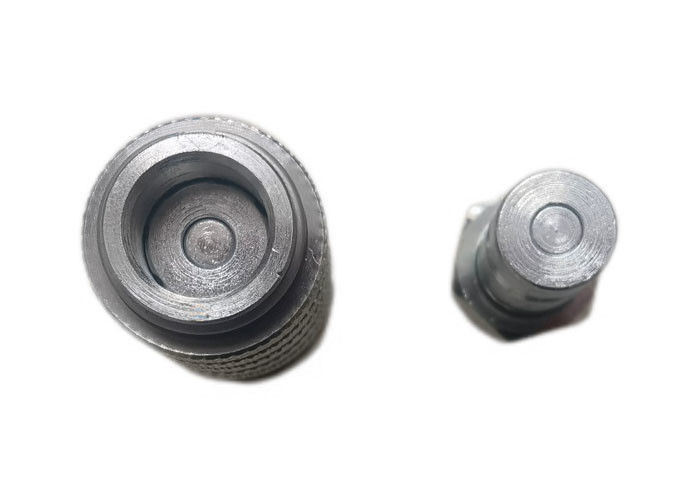

4, Flush-faced poppet for a minimal air inclusion when connecting ,minimal fluid loss during disconnection and for an easy cleaning.
5, NBR ( Nitrile )as standard.Other seal materials FKM (Viton TM),EPDM(Ethylene propylene)are available upon request.
lnterchange: Parker PD Series
Rated Pressure (Mpa) | Rated Flow (L/min) | Temperature range(std seals) | Standard seal material |
42 | 5 | -20℃~+80℃ | NBR |
PARTNO. | Thread | D1 | L1 | CH |
CB-S1S-13FN | NPT1/8 | 24.5 | 42.5 | 21 |
CB-S2S-13FN | NPT1/4 | 24.5 | 54 | 21 |
PARTNO. | Thread | D1 | L1 | L2 | CH |
CB-P1S-13FN | NPT1/8 | 12.6 | 17.8 | 37.5 | 17 |
CB-P2S-13FN | NPT1/4 | 12.6 | 17.8 | 41.5 | 19 |
