Place of Origin:
Shanghai, China
Brand Name:
Carterberg
Certification:
IATF16949
Model Number:
CB-SP-6FN-VEP
The CB-SP-6FN-VEP is Carterberg’s heavy-duty threaded-lock flat face hydraulic quick coupling, engineered for high-pressure and residual-pressure applications. Featuring a flush valve design and a manually threaded locking sleeve, it ensures a secure, leak-minimized connection even in harsh working conditions. This model stands out in the Carterberg flat face family as the ideal solution where safe connection under pressure and vibration resistance are critical.
| Feature | Description |
|---|---|
| Threaded Sleeve Locking | The female coupler uses a threaded sleeve to manually secure the connection with the male coupler, preventing disconnection due to vibration or dragging. |
| Connects Under Residual Pressure | The male nipple is designed to allow coupling even when residual pressure is present, reducing downtime during tool or hose change-outs. |
| Flush Valve Design | Flat-face valves minimize fluid spillage during disconnection and reduce air inclusion during reconnection. |
| Solid Steel Barstock Construction | All couplers are precision-machined from solid carbon steel for superior strength and resistance to hydraulic shock and impulse. |
| Anti-Blowout BFT Seal | The nitrile rubber seal with bonded BFT structure offers excellent sealing reliability under extreme conditions. |
| Eco-Friendly Chrome Plating | Advanced surface treatment improves corrosion resistance, making it suitable for outdoor and humid environments. |
| Size (inches) | Thread Type | Rated Pressure (PSI) | Rated Flow (GPM) |
|---|---|---|---|
| 1/2 | G1/2 | 7000 | 12 |
| 5/8 | G3/4 | 7000 | 28 |
| 3/4 | G1 | 7000 | 50 |
| 1 | G1-1/4 | 6000 | 88 |
| 1-1/2 | G1-1/2 | 5000 | 152 |
• Temperature Range: -20°C to +120°C
• Seal Material: NBR (Nitrile Rubber)
• Body Material: Carbon steel with chrome plating
• Compliance: ISO 16028
• Interchangeable with: STUCCHI VEP Series

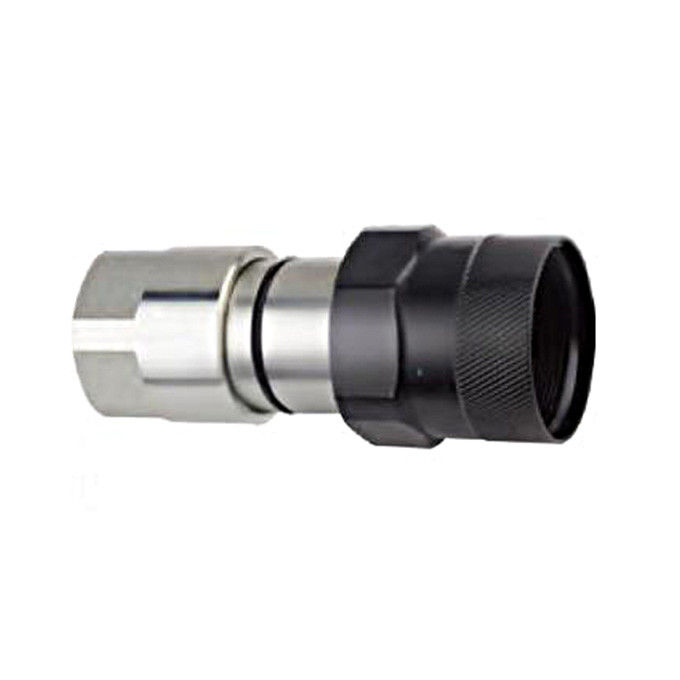

Female (Socket)
|
PART NO |
LS |
D |
HEX1 |
HEX2 |
A |
T |
|
CB-S4S-6FN-VEP |
103.5 |
Φ49 |
S36 六角 |
S46六角 |
16.5 |
G1/2 NPT1/2 |
|
CB-S6S-6FN-VEP |
114 |
Φ53.7 |
S41六角 |
S50六角 |
20 |
G3/4 NPT3/4 |
|
CB-S8S-6FN-VEP |
133.5 |
Φ58.8 |
S46六角 |
S55六角 |
21 |
G1 NPT1 |
|
CB-S10S-6FN-VEP |
145.2 |
Φ68.7 |
S55六角 |
S65六角 |
21 |
G1-1/4 NPT1-1/4 |
|
CB-S12S-6FN-VEP |
187.5 |
Φ92 |
S65六角 |
S85六角 |
21 |
G1-1/2 NPT1-1/2 |
|

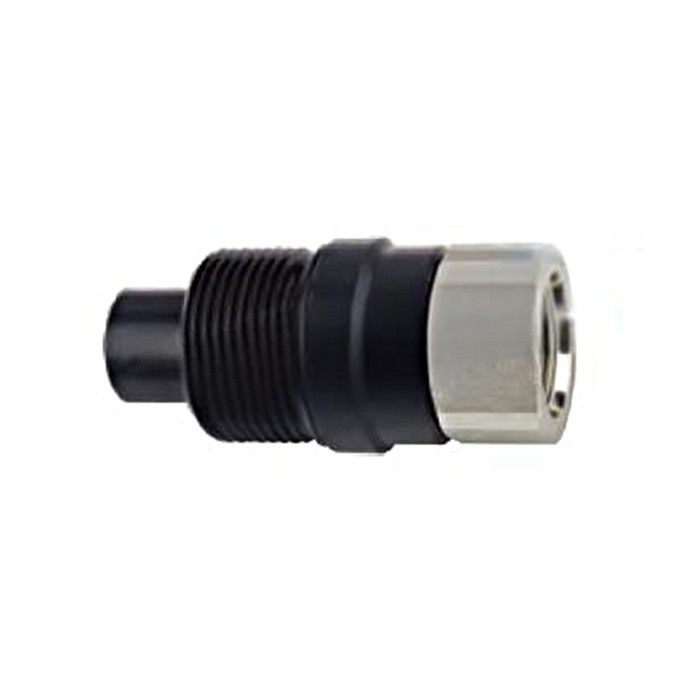

PART NO |
LS |
C |
d |
E |
HEX2 |
A |
T |
|
CB-P4S-6FN-VEP |
95 |
18.8 |
24.54 |
M40*3 |
S36六角 |
16.5 |
G1/2 NPT1/2 |
|
CB-P6S-6FN-VEP |
98.8 |
19.5 |
27.04 |
M45*3 |
S36六角 |
20 |
G3/4 NPT3/4 |
|
CB-P8S-6FN-VEP |
113.9 |
24 |
29.95 |
M50*3 |
S46六角 |
21 |
G1 NPT1 |
|
CB-P10S-6FN-VEP |
123.5 |
24.8 |
36.05 |
M58*3 |
S55六角 |
21 |
G1-1/4 NPT1-1/4 |
|
CB-P16S-6FN-VEP |
150 |
31.5 |
57 |
Tr80*4 |
S65六角 |
21 |
G1-1/2 NPT1-1/2 |
