Place of Origin:
Shanghai, China
Brand Name:
Carterberg
Certification:
IATF16949
Model Number:
CB-SP-6FN-PTF
| Feature | Description |
|---|---|
| Mechanical Sleeve Lock | Prevents unintended disconnection caused by dragging, vibration, or sudden movement—essential for mobile machines. |
| Flat Face Non-Spill Valve | Prevents fluid leakage or air inclusion during connect/disconnect operations. Clean and safe for operators and systems. |
| Dust Guard Outer Sleeve | Covers the push-sleeve area to keep out dirt, sand, or debris, extending valve life. |
| Hardened Steel Body | Machined from barstock and heat-treated for shock and vibration resistance. |
| Bonded Seal with PTFE Backup | NBR seals with anti-blowout support ensure seal integrity under pressure surges. |
| Multi-Ball Lock Mechanism | Provides precise alignment and reduces hose torsion stress. |
| ISO 16028 Compatibility | Interchangeable with other flat face couplers adhering to ISO 16028. |
| Body Size (inches) | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | 1-1/2 | 2 |
|---|---|---|---|---|---|---|---|---|
| Rated Pressure (PSI) | 5000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Rated Flow (GPM) | 3 | 6 | 12 | 20 | 28 | 50 | 80 | 100 |
| Temperature Range | -20°C to +120°C | |||||||
| Standard Seal Material | NBR (Nitrile Rubber) | |||||||
| Connection Type | Sleeve-lock push-to-connect | |||||||
| Thread Type | BSPP or NPT (per part number list) | |||||||

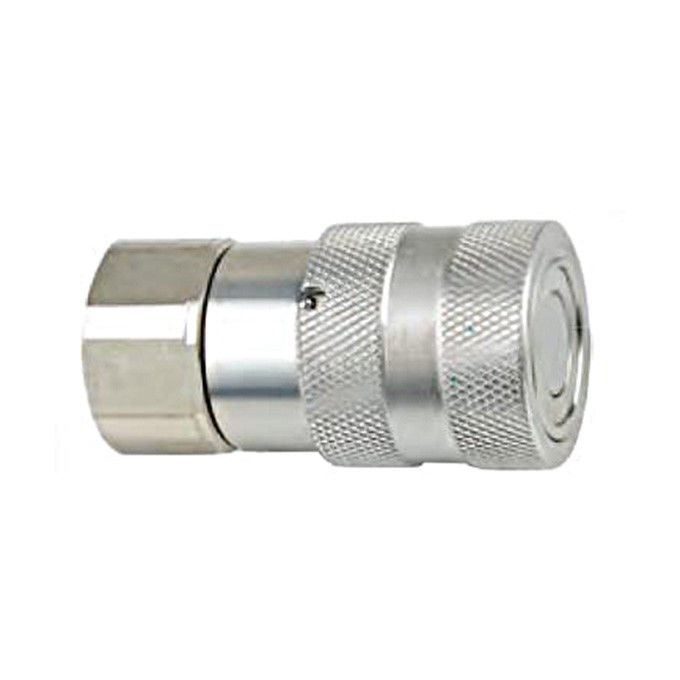

Female(Socket)
|
PART NO |
LS |
D |
HEX1 |
A |
T |
|
CB-S2S-6FN-PTF |
58.2 |
28 |
22 |
14 |
G1/4 NPT1/4 |
|
CB-S3S-6FN-PTF |
68.1 |
32 |
27 |
14 |
G3/8 NPT3/8 |
|
CB-S3S-6FN-PTF |
73.3 |
32 |
27 |
18 |
G1/2 NPT1/2 |
|
CB-S4S-6FN-PTF |
75.1 |
38 |
32 |
18 |
G1/2 NPT1/2 |
|
CB-S4S-6FN-PTF |
81.1 |
38 |
36 |
20 |
G3/4 NPT3/4 |
|
CB-S6S-6FN-PTF |
79.9 |
42 |
36 |
22 |
G3/4 NPT3/4 |
|
CB-S8S-6FN-PTF |
99.2 |
48 |
41 |
23 |
G1 NPT1 |
|
CB-S10S-6FN-PTF |
111.5 |
56 |
55 |
24 |
G1-1/4 NPT1-1/4 |
|
CB-S12S-6FN-PTF |
150 |
79.5 |
65 |
30 |
G1-1/2 NPT1-1/2 |
|
CB-S16S-6FN-PTF |
167 |
98.5 |
85 |
31 |
G2 NPT2 |

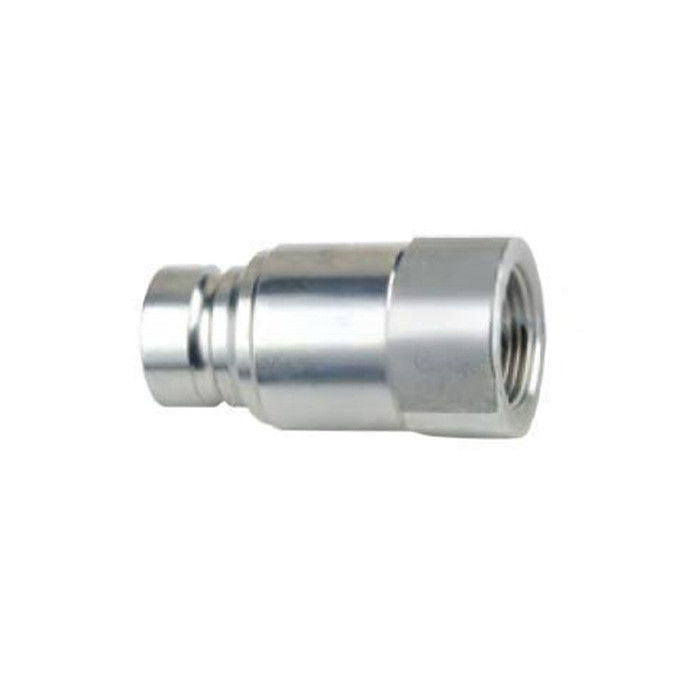

Male (Plug)
|
PART NO |
LP |
d |
C |
HEX2 |
A |
T |
|
CB-P2S-6FN-PTF |
48 |
16.1 |
36 |
22 |
15.5 |
G1/4 NPT1/4 |
|
CB-P3S-6FN-PTF |
61.5 |
19.7 |
40.5 |
24 |
16 |
G3/8 NPT3/8 |
|
CB-P3S-6FN-PTF |
61.5 |
19.7 |
40.5 |
27 |
16 |
G1/2 NPT1/2 |
|
CB-P4S-6FN-PTF |
68 |
24.5 |
48 |
32 |
16 |
G1/2 NPT1/2 |
|
CB-P4S-6FN-PTF |
73 |
24.5 |
48 |
36 |
18 |
G3/4 NPT3/4 |
|
CB-P6S-6FN-PTF |
70.5 |
27 |
50.5 |
36 |
19 |
G3/4 NPT3/4 |
|
CB-P8S-6FN-PTF |
85.5 |
30 |
57 |
41 |
23 |
G1 NPT1 |
|
CB-P10S-6FN-PTF |
90 |
36 |
55 |
55 |
24 |
G1-1/4 NPT1-1/4 |
|
CB-P12S-6FN-PTF |
112 |
57 |
74 |
65 |
30 |
G1-1/2 NPT1-1/2 |
|
CB-P16S-6FN-PTF |
123.9 |
73 |
92 |
75 |
31 |
G2 NPT2 |
