Flat Face Hydraulic High Pressure Quick Coupler With Locking Sleeve 1/4"

Flat Face Hydraulic High Pressure Quick Coupler With Locking Sleeve 1/4"

  • High Light

    Flat Face High Pressure Hydraulic Couplings

    ,

    Hydraulic Quick Joint Coupling

    ,

    Locking Sleeve Hydraulic Quick Coupling 1/4"

  • Size
    1/4"-1"
  • Structure
    Socket And Plug
  • Standard
    ISO16028
  • Type
    Coupling
  • Material
    Carbon Steel
  • Connection
    Female & Male
  • Application
    Oil,Gas And General Chemical Service
  • Working Pressure
    10000 PSI
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-2
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

Flat Face Hydraulic High Pressure Quick Coupler With Locking Sleeve 1/4"

Flat face design with a patented locking sleeve High Pressure Hydraulic Coupling

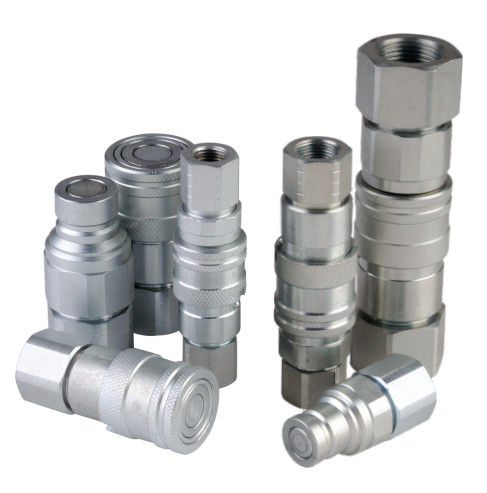

The high-pressure hydraulic quick release coupling features a flat face design with a patented locking sleeve that automatically rotates when connected. The auto locking system prevents unwanted disconnection and provides leak-free quick connect and quick release solutions in pressurized applications. The quick coupling sleeve must be aligned in between the locking pin and the release notch or disconnection.

The coupling is available in sizes ranging from 1/8” to 3/8” and port options BSP and NPT. The flat face, locking design and durable carbon steel material provide reliable quick connect solutions in applications with a working pressure of 700 – 720 bar up to 10,000 psi. The flat face design limits fluid leakage and contamination of hydraulic circuits in high pressure applications such as emergency cutting tools, mobile construction and industrial machinery and equipment.



BODY SIZE Rated Pressure (PSI) Rated Flow (GPM) Temperature range(std seals) Standard seal material
1/4" 5000 3 -20℃~+80℃ NBR
3/8" 3000 6
1/2" 3000 12
3/4" 3000 28
1" 3000 50





Our numerous case studies offer a quick peek into how we help our customers to improve productivity, efficiency and safety in numerous hydraulic applications. Preventing hydraulic leaks and unplanned machinery downtime is critical to meeting productivity requirements. Our hydraulic solutions improve not only hydraulic applications but your overall business operations and performance.

We offers a vast product line with:

Flat face quick couplers

Threaded quick couplers

Poppet style couplers

Threaded poppet style couplers

High pressure quick couplings

Multi-coupler plates

Quick coupler dust caps and accessories

Check valves and hydraulic adapters

Custom designed quick release solutions







Flat Face Hydraulic High Pressure Quick Coupler With Locking Sleeve 1/4" 0

PARTNO. Thread LS φD HS A
CB-S2S-6FN G1/4 NPT1/4 60 28 S22 14
CB-S3S-6FN G3/8 NPT3/8 72 32 S24 14
CB-S3S-6FN-A G1/2 NPT1/2 76 32 S27 16
CB-S4S-6FN G1/2 NPT1/2 77 38 S32 16
CB-S4S-6FN-A G3/4 NPT3/4 79 38 S36 22
CB-S6S-6FN G3/4 NPT3/4 79 42 S36 22
CB-S8S-6FN G1 NPT1 97 48 S41 23.5





Flat Face Hydraulic High Pressure Quick Coupler With Locking Sleeve 1/4" 1



PARTNO. Thread LP φC HP A
CB-P2S-6FN G1/4 NPT1/4 48 16 S22 14
CB-P3S-6FN G3/8 NPT3/8 56 19.7 S24 14
CB-P3S-6FN-A G1/2 NPT1/2 58 19.7 S27 16
CB-P4S-6FN G1/2 NPT1/2 73 24.5 S32 16
CB-P4S-6FN-A G3/4 NPT3/4 55 24.5 S36 20
CB-P6S-6FN G3/4 NPT3/4 74 27 S36 22
CB-P8S-6FN G1 NPT1 86 30 S41 23.5
