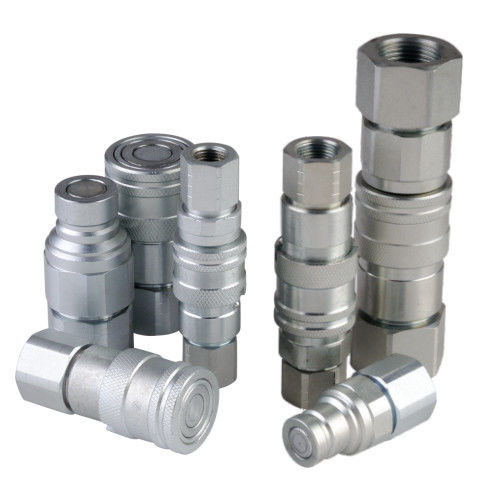

High Pressure Hydraulic Quick Release Coupling Thread For Oil Gas Industry

High Pressure Hydraulic Quick Release Coupling Thread For Oil Gas Industry

  • High Light

    Steel Quick Release Coupling Hydraulic

    ,

    Hydraulic Quick Release Connectors

    ,

    Quick Release High Pressure Coupling Thread

  • Connection
    Female
  • Material
    Steel
  • Applications
    Oil And Gas Industry
  • Size
    1/4"-1"
  • Thread
    BSPP BSPT NPT
  • Structure
    Socket And Plug
  • Standard
    ISO16028
  • Type
    Coupling
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-2
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

High Pressure Hydraulic Quick Release Coupling Thread For Oil Gas Industry

High Pressure Hydraulic Quick Release Coupling applications oil and gas industry



High pressure hydraulic quick release couplings are required in high pressure hydraulic applications such as for the oil and gas industry, mobile construction and industrial equipment. High pressure hydraulic couplers must maintain leak-free fluid control in demanding environments such as in construction equipment, hydraulic wrenches, emergency cutting tools, industrial machinery and many other applications which present high-pressure and vibration. Quick connect and quick disconnect in applications with 10,000 psi working pressure require durable construction with a higher burst pressure than standard quick couplers.





BODY SIZE Rated Pressure (PSI) Rated Flow (GPM) Temperature range(std seals) Standard seal material
1/4" 5000 3 -20℃~+80℃ NBR
3/8" 3000 6
1/2" 3000 12
3/4" 3000 28
1" 3000 50





High Pressure Hydraulic Quick Release Coupling Thread For Oil Gas Industry 0

PARTNO. Thread LS φD HS A
CB-S2S-6FN G1/4 NPT1/4 60 28 S22 14
CB-S3S-6FN G3/8 NPT3/8 72 32 S24 14
CB-S3S-6FN-A G1/2 NPT1/2 76 32 S27 16
CB-S4S-6FN G1/2 NPT1/2 77 38 S32 16
CB-S4S-6FN-A G3/4 NPT3/4 79 38 S36 22
CB-S6S-6FN G3/4 NPT3/4 79 42 S36 22
CB-S8S-6FN G1 NPT1 97 48 S41 23.5





High Pressure Hydraulic Quick Release Coupling Thread For Oil Gas Industry 1



PARTNO. Thread LP φC HP A
CB-P2S-6FN G1/4 NPT1/4 48 16 S22 14
CB-P3S-6FN G3/8 NPT3/8 56 19.7 S24 14
CB-P3S-6FN-A G1/2 NPT1/2 58 19.7 S27 16
CB-P4S-6FN G1/2 NPT1/2 73 24.5 S32 16
CB-P4S-6FN-A G3/4 NPT3/4 55 24.5 S36 20
CB-P6S-6FN G3/4 NPT3/4 74 27 S36 22
CB-P8S-6FN G1 NPT1 86 30 S41 23.5





Our Services:



1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
