Flow Diameter 2.5mm Hydraulic Quick Connect Couplings 100Mpa 6.0L/Min

Flow Diameter 2.5mm Hydraulic Quick Connect Couplings 100Mpa 6.0L/Min

  • High Light

    2.5mm Hydraulic Quick Connect Couplings

    ,

    Hydraulic Quick Connect Couplings 100Mpa

    ,

    6.0L/Min Hydraulic Quick Connect Couplings

  • Name
    Coupling
  • Material Seal
    Nitrile (NBR)
  • Flow Capacity
    6.0 L/min
  • Max. Working Pressure
    100 MPa
  • Min. Burst Pressure
    260 MPa
  • Nominal Flow Diameter
    2.5mm
  • Temperature
    -30°C — +100°C
  • Material
    Hardened, Zinc Chromate Plated Steel
  • Place of Origin
    Sweden
  • Brand Name
    CEJN
  • Certification
    IATF16949
  • Model Number
    10115/10117
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

Flow Diameter 2.5mm Hydraulic Quick Connect Couplings 100Mpa 6.0L/Min

Nominal flow diameter 2.5mm hydraulic quick connect couplings for 100Mpa high-pressure hose couplings





The 115 series of hydraulic quick connect couplings for ultra high pressure are easy to handle, safe and reliable. The quick couplers are available in both standard and flat-face designs. Series 115 are non-drip couplings with clean connection and disconnection protecting both the environment and circuit integrity. The safety lock comes as standard and it adds an extra layer of safety by eliminating any risks of accidental disconnections. The high performance and robust design with small outer dimensions, makes it a suitable option in many different applications. The nipples are also available with a hose rupture valve. In the event of a ruptured hose, the nipple closes and prevents oil spills that could disrupt production and harm the environment. Plastic dust caps come as standard for both the couplings and nipples. These extend the lifetime of couplings, nipples and the entire hydraulic system. Aluminium dust caps are also available upon request.

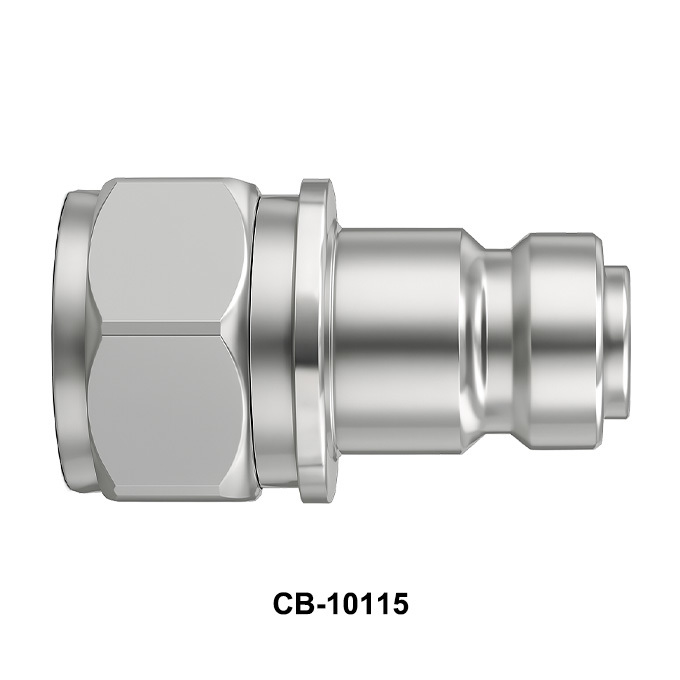

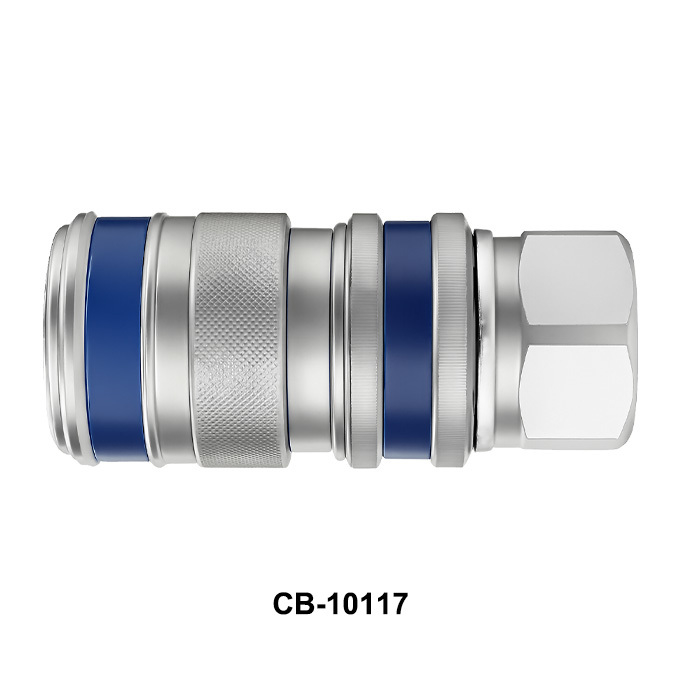

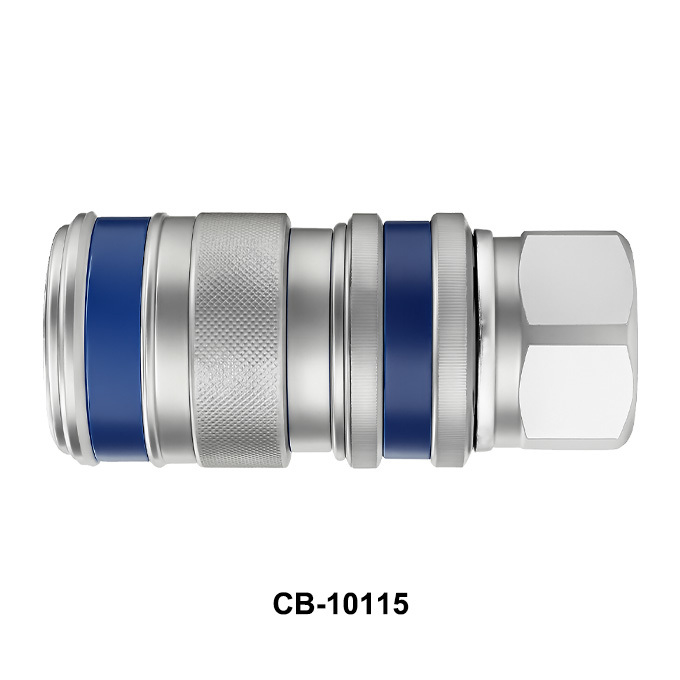

Flow Diameter 2.5mm Hydraulic Quick Connect Couplings 100Mpa 6.0L/Min 0115series                  Flow Diameter 2.5mm Hydraulic Quick Connect Couplings 100Mpa 6.0L/Min 1117series

Series 117 is a sister coupling to Series 115 and is used alongside it in applications where the systems must not, under any circumstances, be interconnected. The series offer the same performance and qualities, but cannot be connected with one another, which makes them an unbeatable combination for rescue tools, etc. All exposed components are made of zinc-plated steel. The safety lock comes as standard and it adds an extra layer of safety by eliminating any risks of accidental disconnections. Plastic dust caps are standard on both coupling and nipple.


Applications: Hydraulic bolt tensioning, Test benches, Cylinders, Bearing pullers, Torque tools, Rescue tools





Flow Diameter 2.5mm Hydraulic Quick Connect Couplings 100Mpa 6.0L/Min 2

Oil Flow

x: Flow, l/min (GPM UK)
y: Pressure drop, MPa



Nominal flow diameter 2.5 mm (0.1")
Flow capacity 6.0 l/min (1.3 GPM UK)
Max. working pressure 100 MPa
Min. burst pressure 260 MPa
Temperature range -30°C — +100°C (-22°F — +212°F)
Material coupling Hardened, zinc chromate plated steel
Material nipple Hardened, zinc chromate plated steel
Material seal Nitrile (NBR) other sealing materials on request

Flow capacity is measured at 0.4 MPa pressure drop.
