Place of Origin:
China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-10125, CB-10218, CB-10135, CB-10116, CB-10115, CB-10117

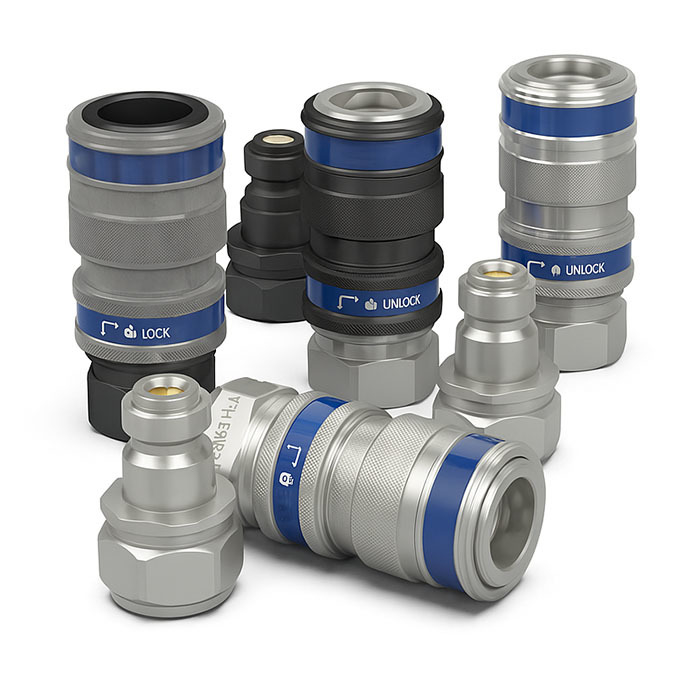

Carterberg’s high-pressure hydraulic couplings are engineered to provide secure connections in hydraulic systems where extreme pressure and precise control are essential. Our product range, including CB-10125, CB-10218, CB-10135, and others, is built to withstand up to 300 MPa pressure, making them ideal for high-flow applications, precision tools, rescue systems, and industrial machinery.
This page compares the key features, technical specifications, and applications of our most popular models to help you choose the right coupler for your system. Whether you need high-flow or precision control, Carterberg has a solution for you.
This section provides a comprehensive overview of the technical specifications for each of the models in the CB-10125, CB-10218, CB-10135, CB-10116, CB-10115, and CB-10117 models. The details below will help you understand the unique characteristics of each model to determine the best fit for your hydraulic system.
| Model | Rated Pressure | Flow Rate | Material | Connection Type | Temperature Range | Locking Mechanism |
|---|---|---|---|---|---|---|
| CB-10125 | 250 MPa | 5.8 L/min | Stainless Steel | G1/4" | -30°C to +100°C | Mechanical lock |
| CB-10218 | 100 MPa | 15 L/min | Stainless Steel | G3/8" | -30°C to +100°C | Mechanical lock |
| CB-10135 | 300 MPa | 4.6 L/min | Hardened Steel | M16×1.5 | -20°C to +80°C | Mechanical lock |
| CB-10116 | 150 MPa | 6 L/min | Stainless Steel | G1/8" | -30°C to +100°C | Mechanical lock |
| CB-10115 | 100 MPa | 6 L/min | Stainless Steel | Rc 1/4" | -30°C to +100°C | Mechanical lock |
| CB-10117 | 100 MPa | 6 L/min | Stainless Steel | Rc 1/4" | -30°C to +100°C | Mechanical lock |
• CB-10125: Suitable for ultra-high pressure applications, it offers reliable connections and is an ideal choice for heavy-duty industrial equipment and oilfield operational systems. For more detailed specs, visit the CB-10125 Product Page.
• CB-10218: Designed for high-flow, precision applications with 100 MPa pressure, suitable for hydraulic jacks, precision tools, and test equipment. Learn more on the CB-10218 Product Page.
• CB-10135: Built for rescue operations, high-pressure testing, and hydraulic jacks. Rated for 300 MPa with hardened steel construction for extreme environments. Check detailed specs on the CB-10135 Product Page.
• CB-10116: Best for medium-pressure industrial machinery and tensioning systems, offering 150 MPa performance with stainless steel construction. Visit the CB-10116 Product Page for more information.
• CB-10115: Tailored for low-pressure systems with high precision, ideal for tight spaces and light-duty applications. Get detailed specs from the CB-10115 Product Page.
• CB-10117: Functionally identical to CB-10115, but designed for specific applications where the connection interface does not require interchangeability. Find more details on the CB-10117 Product Page.
Related Products:
Looking for additional products? Explore our hydraulic hose kits designed to work seamlessly with our high-pressure couplings.

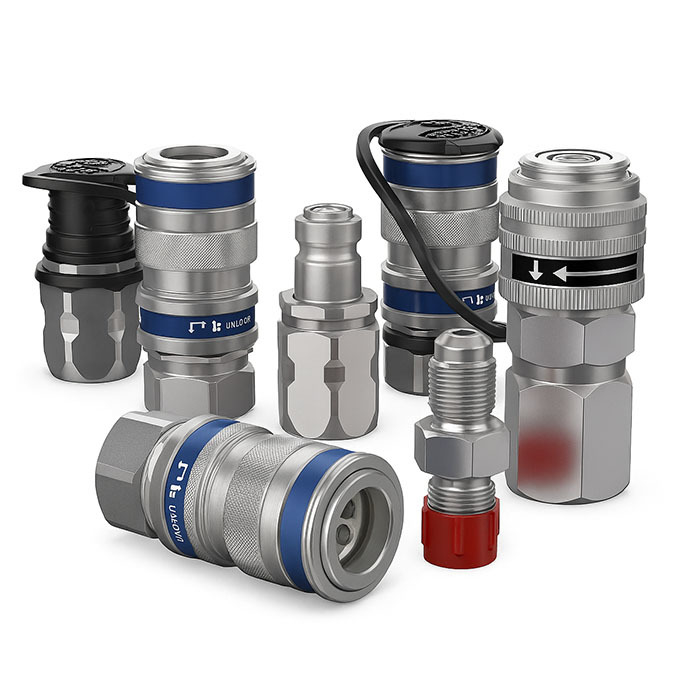

Carterberg couplings are designed to be high-quality alternatives to CEJN series couplings while offering enhanced cost-effectiveness. Our couplers are crafted with similar performance capabilities, ensuring compatibility with CEJN systems but at a more competitive price.
• High Pressure Compatibility: Our couplers offer similar pressure ratings (up to 300 MPa) for heavy-duty applications.
• Material and Construction: Crafted from stainless steel and hardened steel, our couplers are designed for durability.
• Cost-Effectiveness: You get equivalent performance for a more affordable price, making Carterberg couplings a smart choice.
• Custom Solutions: Tailor your coupler to meet specific needs for your hydraulic system.
Q: How do I choose between CB-10125 and CB-10218?
A: If you need a higher pressure rating(250 MPa) and higher flow(5.8 L/min), CB-10125 is the choice.For high flow rates (15 L/min) and high precision at 100 MPa pressure, CB-10218 is more suitable..
Q: Can CB-10135 be used in rescue operations?
A: Yes, CB-10135 is designed for high-pressure rescue tools and hydraulic jacks with a 250 MPa pressure rating.
Q: What is the difference between CB-10115 and CB-10117?
A: CB-10115 and CB-10117 are structurally identical, but CB-10117 is not compatible with other models due to its specific connection features.
