Place of Origin:
China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-10115 / CB-10117
Carterberg’s CB-10115 and CB-10117 series hydraulic quick couplings are purpose-built for ultra high pressure hydraulic circuits where compact size, leak-free performance, and precision matter.
With a nominal diameter of just 2.5 mm and a pressure rating of up to 100 MPa (14,500 PSI), both models deliver reliable performance in bolt tensioning tools, hydraulic stud tensioners, test benches, and micro-cylinder systems.
Though similar in performance and application, CB-10115 and CB-10117 are not cross-compatible due to internal construction differences. Users should select the correct model based on system design and connection standards.
• 100 MPa Pressure Rating
Designed for ultra high pressure hydraulic systems, compliant with demanding industrial safety standards.
• Small Bore for Precision Control
DN 2.5 mm flow diameter ensures accurate and efficient pressure application.
• Secure Locking Mechanism
Internal locking sleeve prevents accidental disconnection under pressure.
• Leak-Free Disconnection
Flat-face valve technology minimizes fluid loss during disconnect.
• Two Structural Versions
Choose CB-10115 or CB-10117 based on equipment requirement.
Not interchangeable – use model-specific plugs and sockets only.
| Model | Working Pressure | Flow Diameter (DN) | Thread Type | Material | Interchangeable |
|---|---|---|---|---|---|
| CB-10115 | 100 MPa | 2.5 mm | M10x1 or M14x1.5 | Hardened Steel | No |
| CB-10117 | 100 MPa | 2.5 mm | M10x1 or M14x1.5 | Hardened Steel | No |
Flow vs Pressure Drop Curve
CB-10115 / 10117 pressure-flow curve illustrates optimized performance in ultra high-pressure low-volume systems.

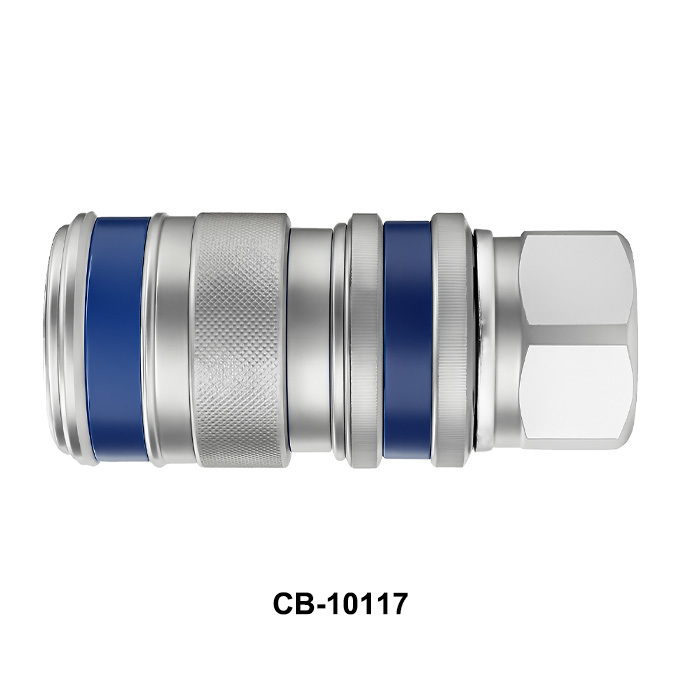

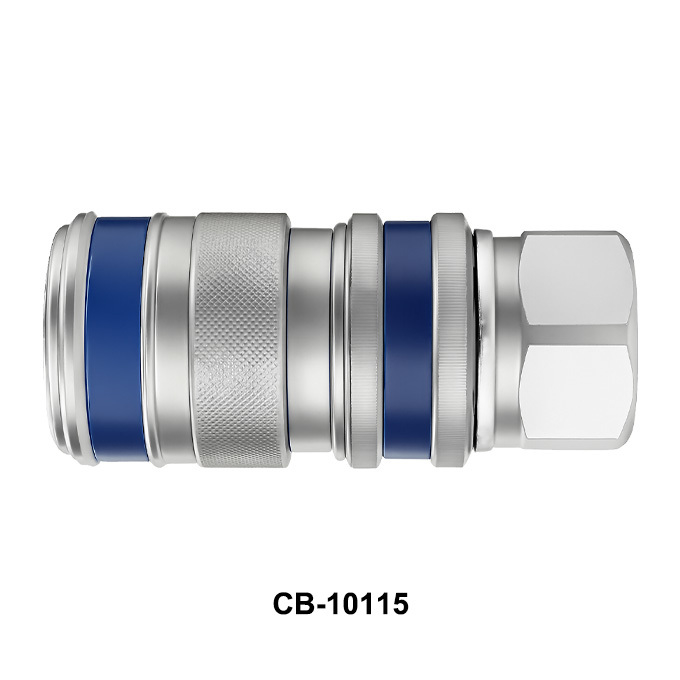

Female (Socket)

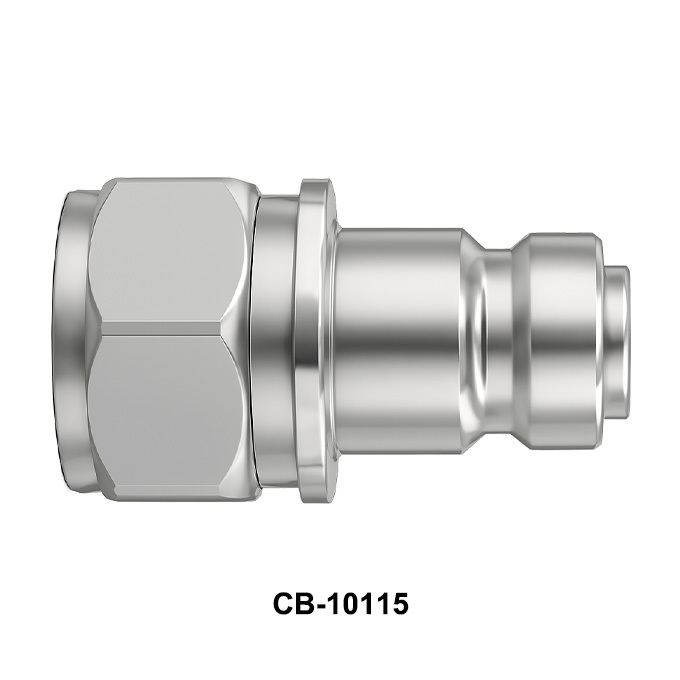

Male (Plug)
Need help selecting between CB-10115 and CB-10117?
Contact our technical team for application-specific advice and sample requests.
