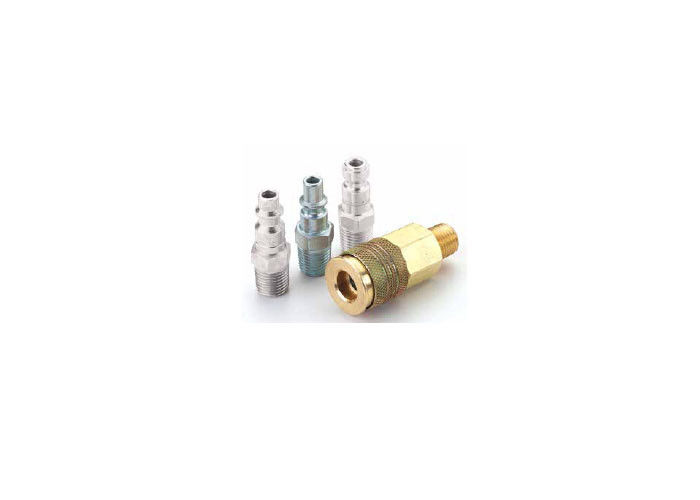

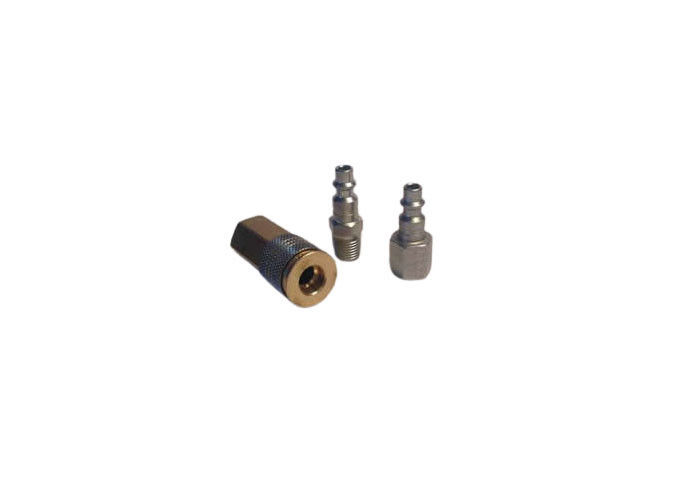

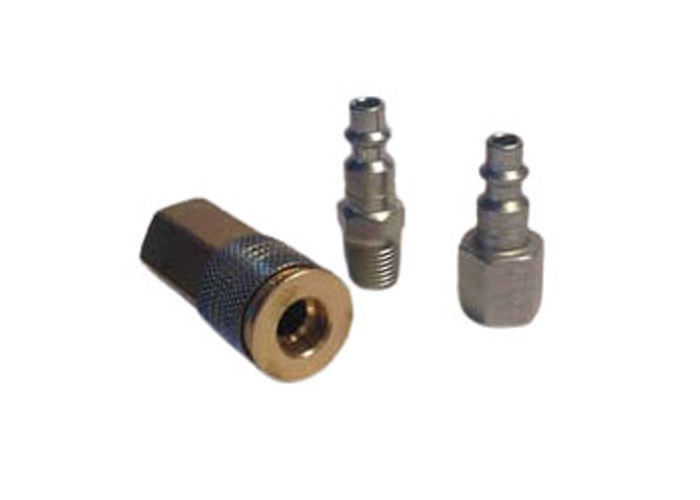

NPT 0.25 Inch High Flow Pneumatic Quick Coupling

NPT 0.25 Inch High Flow Pneumatic Quick Coupling

Products - Pneumatic Quick Coupling
  • Highlight

    NPT Pneumatic Quick Coupling

    ,

    0.25'' Pneumatic Quick Coupling

    ,

    NPT brass quick connect

  • Product Name
    Quick-Connect Coupling
  • Application
    General Pneumatics
  • Standard
    NPT
  • Nominal
    1/4
  • Type
    Coupling
  • Flow
    32scfm
  • Material
    Brass
  • Technics
    Forged,Casting,Machining Air Hose Quick Coupling,Plastic Injection,Machining
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-12
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

NPT 0.25 Inch High Flow Pneumatic Quick Coupling

  • NPT 0.25 Inch High Flow Pneumatic Quick Coupling
  • NPT 0.25 Inch High Flow Pneumatic Quick Coupling
  • NPT 0.25 Inch High Flow Pneumatic Quick Coupling
Get Price Contact Now

High flow, automatic Quick-Connect Couplings designed for use with compressed air Pneumatic Quick Coupling



CB-12 Series High flow, automatic Quick-Connect Couplings designed for use with compressed air.



Applications & Markets

• General Pneumatics

• Air Tools

• Construction

Standard Materials

  • Brass
  • Seals: NBR, Viton, EPDM

Features

  1. Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket end of line
  2. Sleeve guard protects against accidental disconnection
  3. Compatible with Hansen AUTO-FLO23&24 Series



NPT 0.25 Inch High Flow Pneumatic Quick Coupling 0

Body Size PARTNO. Thread A B HEX
1/4" CB-S2B-12MN-G 1/4-18 2.23 0.94 0.81
1/4" CB-S2B-12MG-G 1/4-19 2.23 0.94 0.81
1/4" CB-S3B-12MN-G 3/8-18 2.23 0.94 0.81
1/4" CB-S3B-12MG-G 3/8-19 2.23 0.94 0.81
1/4" CB-S4B-12MG-G 1/2-14 2.23 0.94 0.88

NPT 0.25 Inch High Flow Pneumatic Quick Coupling 1NPT 0.25 Inch High Flow Pneumatic Quick Coupling 2



Body Size PARTNO. Thread C D HEX
1/4" CB-P1S-12MN 1/8-27 1.59 0.58 0.50
1/4" CB-P2S-12MN 1/4-18 1.75 0.65 0.56
1/4" CB-P3S-12MN 3/8-18 1.75 0.79 0.69
1/4" CB-P2B-12MN 1/4-18 1.75 0.64 0.56
1/4" CB-P2L-12MN 1/4-18 1.75 0.65 0.56



Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
