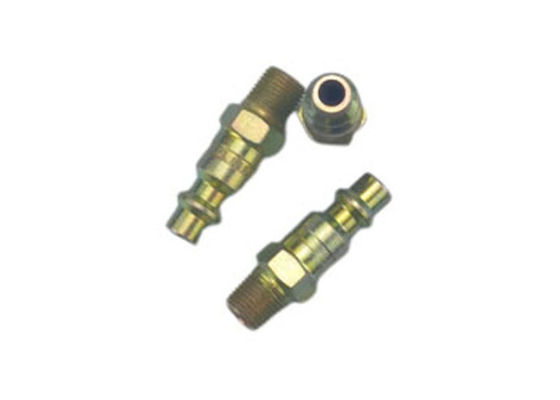

0.5 Inch NPT Pneumatic Quick Coupler , Quick Release Air Hose Fittings

0.5 Inch NPT Pneumatic Quick Coupler , Quick Release Air Hose Fittings

  • High Light

    NPT Pneumatic Quick Coupler

    ,

    0.5'' Pneumatic Quick Coupler

    ,

    IATF 16949 quick release air hose fittings

  • Product Name
    Quick-Connect Coupling
  • Application
    General Pneumatics
  • Standard
    NPT
  • Nominal
    1/4
  • Type
    Coupling
  • Flow
    32scfm
  • Material
    Brass
  • Technics
    Forged,Casting,Machining Air Hose Quick Coupling,Plastic Injection,Machining
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-12
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

0.5 Inch NPT Pneumatic Quick Coupler , Quick Release Air Hose Fittings

0.5'' High flow, automatic Quick-Connect Couplings designed for use with compressed air Pneumatic Quick Coupling



CB-12 Series High flow, automatic Quick-Connect Couplings designed for use with compressed air.



Applications & Markets

• General Pneumatics

• Air Tools

• Construction

Standard Materials

  • Brass
  • Seals: NBR, Viton, EPDM

Features

  1. Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket end of line
  2. Sleeve guard protects against accidental disconnection
  3. Compatible with Hansen AUTO-FLO23&24 Series



0.5 Inch NPT Pneumatic Quick Coupler , Quick Release Air Hose Fittings 0

Body Size PARTNO. Thread A B HEX
1/4" CB-S2B-12MN-G 1/4-18 2.23 0.94 0.81
1/4" CB-S2B-12MG-G 1/4-19 2.23 0.94 0.81
1/4" CB-S3B-12MN-G 3/8-18 2.23 0.94 0.81
1/4" CB-S3B-12MG-G 3/8-19 2.23 0.94 0.81
1/4" CB-S4B-12MG-G 1/2-14 2.23 0.94 0.88

0.5 Inch NPT Pneumatic Quick Coupler , Quick Release Air Hose Fittings 10.5 Inch NPT Pneumatic Quick Coupler , Quick Release Air Hose Fittings 2



Body Size PARTNO. Thread C D HEX
1/4" CB-P1S-12MN 1/8-27 1.59 0.58 0.50
1/4" CB-P2S-12MN 1/4-18 1.75 0.65 0.56
1/4" CB-P3S-12MN 3/8-18 1.75 0.79 0.69
1/4" CB-P2B-12MN 1/4-18 1.75 0.64 0.56
1/4" CB-P2L-12MN 1/4-18 1.75 0.65 0.56
