LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off

LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off

  • High Light

    Pneumatic Brass Quick Coupling

    ,

    LAM Brass Quick Connect Hose Fittings

    ,

    Brass Pneumatic Female Quick Coupler

  • Features
    Simple Structure
  • Name
    PNEUMATIC COUPLING
  • Material
    Brass
  • Temperature
    -20℃~120°C
  • Compatible
    Parker 20 Series,CEJN 310 Series
  • Working Pressure
    1.0MPa
  • Application
    Pneumatic Tools
  • Standard
    ISO6150B
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-3
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

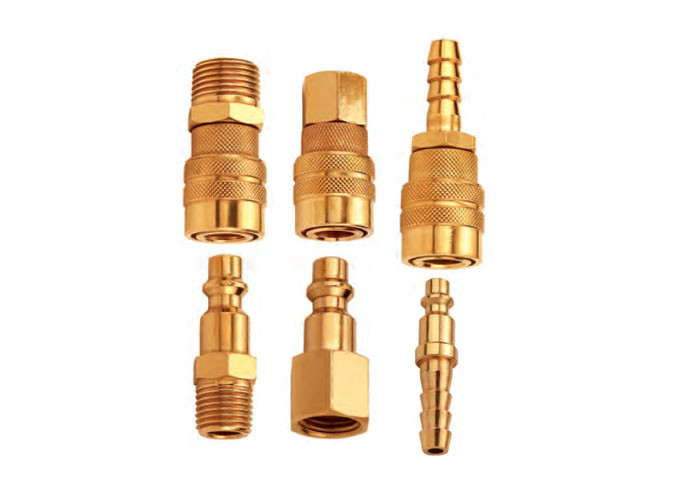

LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off

LAM AMERICAN TYPE SINGLE SHUT-OFF PNEUMATIC HIGH FLOW BRASS QUICK COUPLING



LAM AMERICAN TYPE SINGLE SHUT-OFF QUICK COUPLING(BRASS)
→ Features:ISO 6150B standard
→ Advantages:Simple structure, light weight, various of connections.
→ Application:pneumatic tools, automotive, compressed air, machinery equipments and compressor.
→ Interchangeability: Parker 20 series, Rectus 23KA series, Hansen 3000 series, CEJN 310 series.
→ Working Pressure:1.0 Mpa.
→ Working Temperature: -20℃ to +120℃.




LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off 0

PARTNO. LS ¢D HEX1 A T
LAM-02SM 51 25 19 12 1/4
LAM-03SM 51 25 19 13 3/8
LAM-04SM 53 25 22 14 1/2





LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off 1

PARTNO. LS ¢D HEX1 A T
LAM-02SF 49.5 25 19 12 1/4
LAM-03SF 49.5 25 19 13 3/8
LAM-04SF 49.5 25 24 15 1/2




LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off 2

PARTNO. LS ¢D HEX1 A T
LAM-02SH 66 25 19 28 9
LAM-03SH 68 25 19 30 10.5
LAM-04SH 68 25 19 30 13





LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off 3

PARTNO. LP C HEX2 A T d
LAM-02PM 42 24 14 13 1/4 5
LAM-03PM 42 24 17 13 3/8 5
LAM-04PM 44 24 22 14 1/2 5




LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off 4

PARTNO. LP C HEX2 A T d
LAM-02PF 39 24 17 12 1/4 5
LAM-03PF 40 24 19 13 3/8 5
LAM-04PF 44 24 24 16 1/2 5





LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off 5

PARTNO. LP C CP A T d
LAM-02PH 59 24 19 30 9 5
LAM-03PH 59 24 19 30 10.5 5
LAM-04PH 59 24 19 30 13 5
