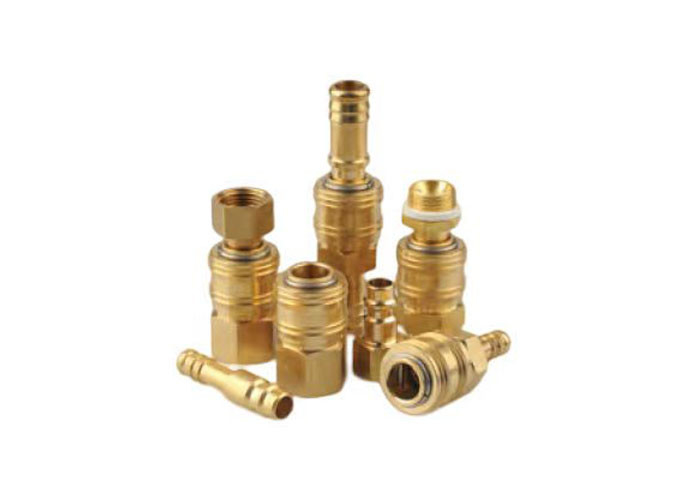

1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type

1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type

Products - Brass Quick Coupler
  • High Light

    Semi Automatic Brass Pneumatic Quick Coupling

    ,

    Brass Hydraulic Quick Coupler

    ,

    1.6MPa Brass Hose Quick Connect

  • Name
    Brass Coupler
  • Material
    Brass
  • Connection
    Female/Male
  • Size
    1/4' ~ 1/2'
  • Temperature
    -20~120°C
  • Compatible
    CEJN 320 Series
  • Working Pressure
    1.6MPa
  • Standard
    European
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-3
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type

  • 1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type
  • 1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type
Get Price Contact Now

Single-handed and semi-automatic type Eurpean standard Brass quick couplings



CLOSE TYPE PNEUMATIC QUICK COUPLING(BRASS)
→ Features: Valid diameter 7.6mm,Eurpean standard.
→ Advantages: single hand operation,steel valve locking system.
→ Application: pneumatic tools, automotive,machinery equipment.
→ Interchangeability: CEJN 320 Series,Rectus 25KA and 26KA Series
→ Working Pressure:1.6Mpa.
→ Working Temperature: -20℃ to +120℃.




1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type 0

PART NO. LS D HEX1 A T d
CB-26-02SM 42 24.8 22 9 G 1/4 Φ 7.8
CB-26-03SM 42 24.8 22 9 G 3/8 Φ 10
CB-26-04SM 45 24.8 22 12 G 1/2 Φ 10



1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type 1

PART NO. LP C HEX2 A T d
CB-26-02PM 33 20 17 9 G 1/4 Φ 7.8
CB-26-03PM 33 20 19 9 G 3/8 Φ 7.8
CB-26-04PM 38 20 24 12 G 1/2 Φ 7.8


1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type 2

PART NO. LP C HEX2 A T d
CB-26-02SF 41.2 24.8 22 10 G 1/4 Φ 10
CB-26-03SF 41.2 24.8 22 10 G 3/8 Φ 10
CB-26-04SF 44.2 24.8 24 12 G 1/2 Φ 10


1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type 3

PART NO. LP C HEX2 A T d
CB-26-02PF 33 20 17 9 G 1/4 Φ 7.8
CB-26-03PF 32 20 19 9 G 3/8 Φ 7.8
CB-26-04PF 35 20 24 12 G 1/2 Φ 7.8



1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type 4

PART NO. LS D HEX1 A T d
CB-26-02SH 58 24.8 21 25 7.5 Φ 4
CB-26-02SH 58 24.8 21 25 9.5 Φ 6
CB-26-03SH 58 24.8 21 25 11.5 Φ 7.8
CB-26-04SH 58 24.8 21 25 14.5 Φ 10



1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type 5

PART NO. LS D CP A T d
CB-26-02PH 48 20 12 25 7.5 Φ 7.8
CB-26-02PH 48 20 12 25 9.5 Φ 7.8
CB-26-03PH 48 20 12 25 11.5 Φ 7.8
CB-26-04PH 48 20 15 25 14.5 Φ 7.8
