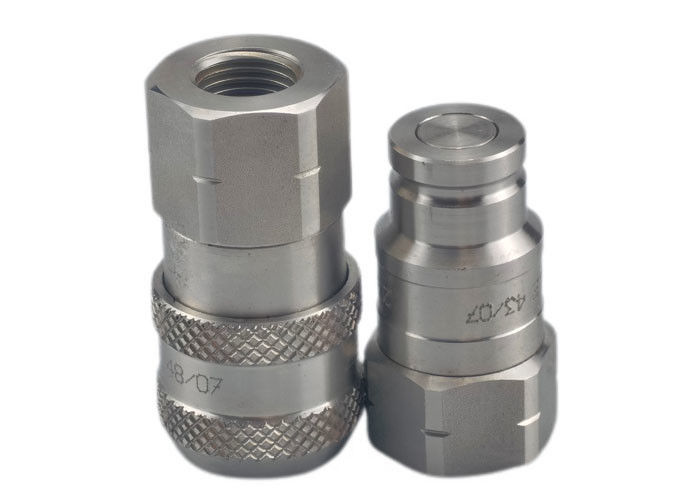

0.5'' ISO16028 NPT Hydraulic Flat Face Quick Coupler

0.5'' ISO16028 NPT Hydraulic Flat Face Quick Coupler

Products - Flat Face Coupler
  • Highlight

    NPT Hydraulic Flat Face Quick Coupler

    ,

    ISO 16028 Hydraulic Flat Face Quick Coupler

    ,

    0.5'' iso coupler

  • Standard
    ISO16028
  • Material
    316 Stainless Steel
  • Thread
    NPT/BSPP
  • Application
    Chemicals/ Petrochemicals
  • Size
    1/4"-1"
  • Name
    Flat Face Coupling
  • Qc
    100%
  • Compatible With
    HANSEN DB Series
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-6
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

0.5'' ISO16028 NPT Hydraulic Flat Face Quick Coupler

  • 0.5'' ISO16028 NPT Hydraulic Flat Face Quick Coupler
  • 0.5'' ISO16028 NPT Hydraulic Flat Face Quick Coupler
Get Price Contact Now

1/2'' 316 stainless steel Flat Face Coupling,flat face hydraulic quick couplers

Applications

• Process/Fluid Transfer • Cooling • Corrosive Environments • Chemicals/ Petrochemicals • Pharmaceuticals • Food Processing • Electrical

Standard Materials

  • zinc-plated steel
  • Seals: NBR, Viton, EPDM



CB-6-B Series stainless steel coupling is a flat face/dry break coupling used for fluid transfer applications. The CB-6-B Series offers the ability to connect with less force, higher sealing performance and are available in multiple configurable end connections.



Features

  1. Designed and manufactured in accordance with Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU
  2. Safety sleeve lock prevents accidental disconnections
  3. Push to connect with double shut-off valving
  4. Capable of working under high temperature applications
  5. Shock-resistant color coding ring option available in 1/2” size
  6. Serviceable design allows for easy cleaning and seal replacement
  7. Designed with higher flow capacity and resistance to aggressive fluids and corrosion
  8. Standard body material: 316/316L Stainless steel
  9. Standard seal material: FKM, EPDM
  10. Compatible with Hansen DB Series.

0.5'' ISO16028 NPT Hydraulic Flat Face Quick Coupler 0

Body Size PARTNO. Thread A B HEX
1/4" CB-S2M-6FN-B 1/4-18 1.98 1.02 0.88
1/4" CB-S2M-6FG-B 1/4-19 1.98 1.02 0.88
1/2" CB-S4M-6FN-B 1/2-14 2.52 1.59 1.38
1/2" CB-S4M-6FG-B 1/2-14 2.52 1.59 1.38
3/4" CB-S6M-6FN-B 3/4-14 3.71 2.00 1.50
3/4" CB-S6M-6FG-B 3/4-14 3.71 2.00 1.50
1" CB-S8M-6FN-B 1-11 3.52 2.25 1.81
1" CB-S8M-6FG-B 1-11 3.52 2.25 1.81

0.5'' ISO16028 NPT Hydraulic Flat Face Quick Coupler 1

Body Size PARTNO. Thread C D HEX
1/4" CB-P2M-6FN-B 1/4-18 1.98 1.02 0.88
1/4" CB-P2M-6FG-B 1/4-19 1.98 1.02 0.88
1/2" CB-P4M-6FN-B 1/2-14 2.52 1.59 1.38
1/2" CB-P4M-6FG-B 1/2-14 2.52 1.59 1.38
3/4" CB-P6M-6FN-B 3/4-14 3.71 2.00 1.50
3/4" CB-P6M-6FG-B 3/4-14 3.71 2.00 1.50
1" CB-P8M-6FN-B 1-11 3.52 2.25 1.81
1" CB-P8M-6FG-B 1-11 3.52 2.25 1.81
