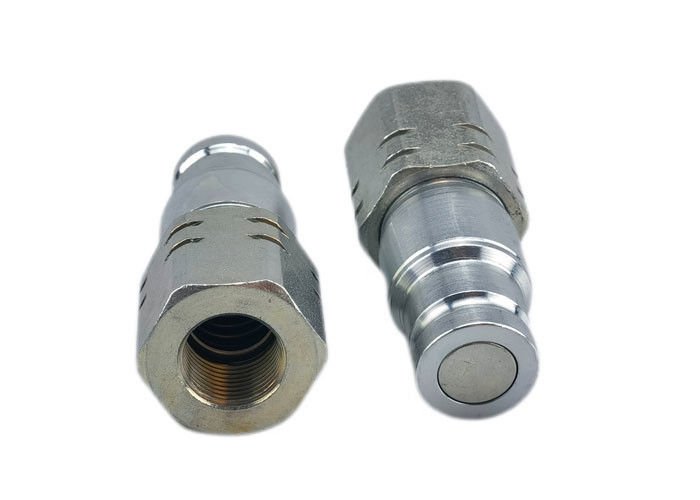

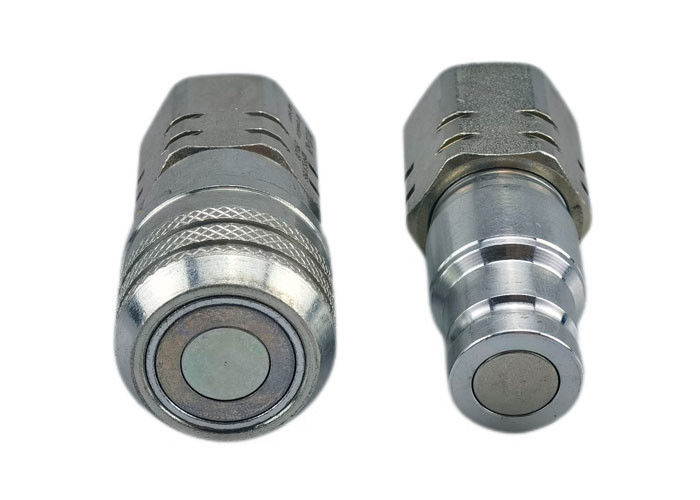

5/8'' ISO16028 Flat Face Hydraulic Standard Steel Flat Face Couplings
CB-6 Series coupling is a flat face dry break or minimum spill hydraulic coupling that meets the ISO16028 standard. Body sizes are 1/4", 3/8", 1/2", 5/8", 3/4" and 1".
Applications
CB-6 Series is ideal for applications where hydraulic spillage is a concern and interchangeability with other manufacturers is important. Public Utilities, Construction Equipment, Agricultural Equipment, Mining Equipment, Railway Maintenance, Overhead bucket hoists, Skid steer loaders
Standard Materials
Features
Body Size | PARTNO. | Thread | A | B | HEX |
1/4" | CB-S2S-6FN | 1/4’’ | 2.32 | 1.10 | 0.87 |
3/8" | CB-S3S-6FN | 3/8’’ | 2.87 | 1.26 | 1.18 |
3/8" | CB-S3S-6FN | 1/2’’ | 2.87 | 1.26 | 1.18 |
1/2" | CB-S4S-6FN | 1/2’’ | 3.31 | 1.50 | 1.42 |
1/2" | CB-S4S-6FN | 3/4’’ | 3.31 | 1.50 | 1.42 |
5/8" | CB-S5S-6FN | 1/2’’ | 3.23 | 1.65 | 1.42 |
5/8" | CB-S5S-6FN | 3/4’’ | 3.39 | 1.65 | 1.42 |
3/4" | CB-S6S-6FN | 3/4’’ | 3.74 | 1.89 | 1.61 |
3/4" | CB-S6S-6FN | 1’’ | 3.86 | 1.89 | 1.61 |
1" | CB-S8S-6FN | 1-1/4’’ | 4.33 | 2.17 | 2.17 |
Body Size | PARTNO. | Thread | C | D | HEX |
1/4" | CB-P2S-6FN | 1/4’’ | 2.05 | 0.63 | 0.87 |
3/8" | CB-P3S-6FN | 3/8’’ | 2.52 | 0.78 | 1.18 |
3/8" | CB-P3S-6FN | 1/2’’ | 2.52 | 0.78 | 1.18 |
1/2" | CB-P4S-6FN | 1/2’’ | 2.91 | 0.96 | 1.42 |
1/2" | CB-P4S-6FN | 3/4’’ | 2.95 | 0.96 | 1.42 |
5/8" | CB-P5S-6FN | 1/2’’ | 2.87 | 1.06 | 1.42 |
5/8" | CB-P5S-6FN | 3/4’’ | 2.95 | 1.06 | 1.42 |
3/4" | CB-P6S-6FN | 3/4’’ | 3.39 | 1.18 | 1.61 |
3/4" | CB-P6S-6FN | 1’’ | 3.39 | 1.18 | 1.61 |
1" | CB-P8S-6FN | 1-1/4’’ | 3.54 | 1.42 | 2.17 |
