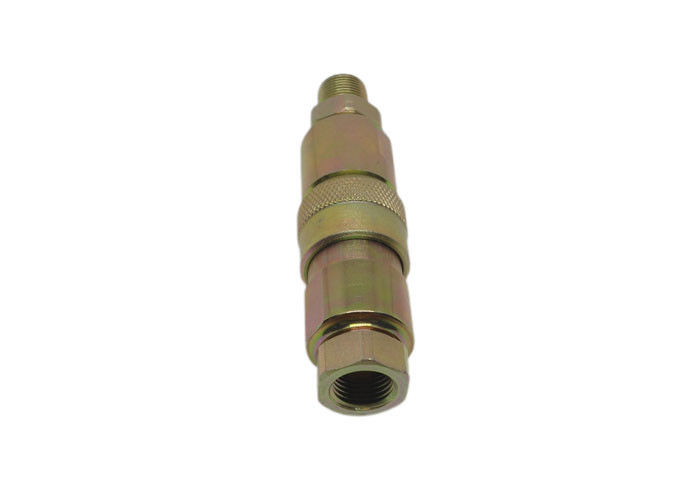

0.25'' Manual Operation Pneumatic Quick Release Coupling

0.25'' Manual Operation Pneumatic Quick Release Coupling

  • Highlight

    0.25'' Pneumatic Quick Release Coupling

    ,

    100psi Pneumatic Quick Release Coupling

    ,

    IATF 16949 quick connect air couplings

  • Application
    Shipyards
  • Nominal
    1/4
  • Material
    Brass
  • Type
    Coupling
  • Technics
    Machining
  • Thread
    Female
  • Connection
    Hose
  • Temperature
    -20℃ ~ 120℃
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-12
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

0.25'' Manual Operation Pneumatic Quick Release Coupling

1/4'' Manual operation use in oxygen service quick release coupling for air pneumatic quick connect



CB-12 Series couplings are not to be used with oxygen at pressures exceeding 100 psig.



Standard Materials

  • Brass
  • Seals: NBR, Viton, EPDM

Features

  1. Safety sleeve lock prevents accidental disconnections
  2. Non-Interchangeable design prevents crossing of lines
  3. Designed for use with compressed air and other gases
  4. Compatible with Hansen 600 Series

0.25'' Manual Operation Pneumatic Quick Release Coupling 0



Body Size PARTNO. Hose A B
1/4" CB-S2B-12H-J 1/4’’ 2.53 1.00
1/4" CB-S3B-12H-J 3/8’’ 2.52 1.00
1/4" CB-S5B-12H-J 5/16’’ 2.53 1.00

0.25'' Manual Operation Pneumatic Quick Release Coupling 1

Body Size PARTNO. Hose C D
1/4" CB-P2B-12H-J 1/4’’ 2.03 0.56
1/4" CB-P3B-12H-J 3/8’’ 2.04 0.56
1/4" CB-P5B-12H-J 5/16’’ 2.03 0.56
