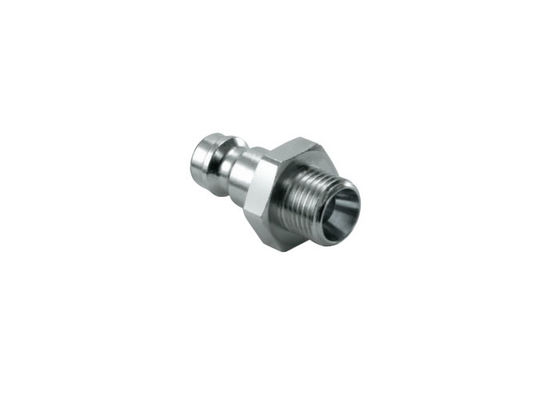

Joining Pipe Lines 24 Bar Pneumatic Quick Coupling

Joining Pipe Lines 24 Bar Pneumatic Quick Coupling

  • High Light

    EPDM Pneumatic Quick Coupling

    ,

    NBR Pneumatic Quick Coupling

    ,

    IATF 16949 quick release air coupler

  • Application
    General Pneumatics
  • Nominal
    1/4
  • Name
    Quick Release Coupling
  • Pressure
    24bar
  • Material
    Brass
  • Connection
    Hose
  • Usage
    Joining Pipe Lines
  • Process
    Punching
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-12
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

Joining Pipe Lines 24 Bar Pneumatic Quick Coupling

Hose Stem End Connections compressed air quick release coupling Pneumatic Quick Coupling



CB-12 Series quick disconnect couplings are designed to prevent the crossing of lines. These couplings are used for compressed air and gases.



Standard Materials

  • Brass
  • Seals: NBR, Viton, EPDM

Features

  1. Non-interchangeable design
  2. prevents crossing of lines
  3. Compatible with Hansen 100 Series



Joining Pipe Lines 24 Bar Pneumatic Quick Coupling 0



Body Size PARTNO. Thread A B
1/4" CB-S2B-12H-I 1/4’’ 2.53 1.00
1/4" CB-S3B-12H-I 3/8’’ 2.53 1.00
1/4" CB-S5B-12H-I 5/16’’ 2.52 1.00

Joining Pipe Lines 24 Bar Pneumatic Quick Coupling 1

Body Size PARTNO. Thread C D
1/4" CB-P2B-12H-I 1/4’’ 2.00 0.56
1/4" CB-P3B-12H-I 3/8’’ 2.03 0.56





Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
