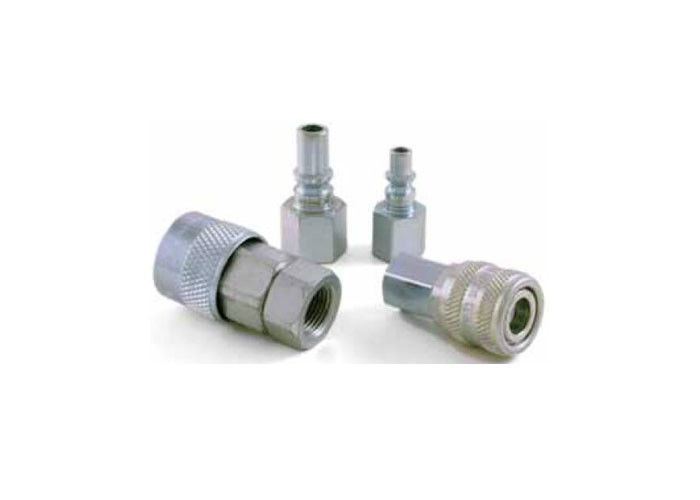

Female End Connections NPT Pneumatic Quick Coupling

Female End Connections NPT Pneumatic Quick Coupling

  • High Light

    ISO9001 Pneumatic Quick Coupling

    ,

    Viton Pneumatic Quick Coupling

    ,

    NPT quick connect coupling hose

  • Application
    General Pneumatics
  • Nominal
    1/4
  • Name
    Pneumatic Quick Coupling
  • Pressure
    24bar
  • Material
    Brass
  • Type
    Coupling
  • Thread
    NPT
  • Standard
    ISO9001
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-12
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

Female End Connections NPT Pneumatic Quick Coupling

Non-interchangeable design prevents crossing of lines Female End Connections Pneumatic Quick Coupling



CB-12 Series quick disconnect couplings are designed to prevent the crossing of lines. These couplings are used for compressed air and gases.



Applications

• General Pneumatics

• Industrial Plants



Standard Materials

  • Brass
  • Seals: NBR, Viton, EPDM

Features

  1. Non-interchangeable design
  2. prevents crossing of lines
  3. Compatible with Hansen 100 Series



Female End Connections NPT Pneumatic Quick Coupling 0



Body Size PARTNO. Thread A B HEX
1/4" CB-S1B-12FN-I 1/8-27 1.78 1.00 0.69
1/4" CB-S2B-12FN-I 1/4-18 2.00 1.00 0.69
1/4" CB-S3B-12FN-I 3/8-18 2.06 1.00 0.75

Female End Connections NPT Pneumatic Quick Coupling 1

Body Size PARTNO. Thread C D HEX
1/4" CB-S2B-12FN-I 1/4-18 1.43 0.79 0.69
