Industrial Plants 350psi Compressed Air Quick Connect

Industrial Plants 350psi Compressed Air Quick Connect

  • High Light

    350psi Compressed Air Quick Connect

    ,

    0.25'' Compressed Air Quick Connect

    ,

    IATF 16949 female hydraulic quick connect

  • Application
    Industrial Plants
  • Nominal
    1/4
  • Name
    Quick Disconnect Coupling
  • Pressure
    350psi
  • Material
    Brass
  • Type
    Fittings
  • Technics
    Machining
  • Thread
    NPT
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-12
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

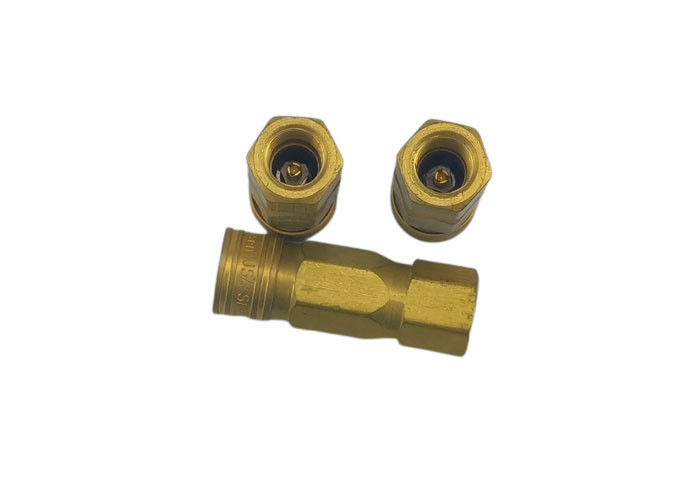

Industrial Plants 350psi Compressed Air Quick Connect

Used for compressed air and gases quick disconnect couplings Pneumatic Quick Coupling​



CB-12 Series quick disconnect couplings are designed to prevent the crossing of lines. These couplings are used for compressed air and gases.



Applications & Markets



• General Pneumatics

• Industrial Plants



Standard Materials

  • Brass
  • Seals: NBR, Viton, EPDM

Features

  1. Non-interchangeable design
  2. prevents crossing of lines
  3. Compatible with Hansen 100 Series



Industrial Plants 350psi Compressed Air Quick Connect 0



Body Size PARTNO. Thread A B HEX
1/4" CB-S1B-12MN-I 1/8-27 1.94 1.00 0.69
1/4" CB-S2B-12MN-I 1/4-18 2.09 1.00 0.69
1/4" CB-S3B-12MN-I 3/8-18 2.09 1.00 0.69
1/4" CB-S5B-12MN-I 5/8-18* 2.16 1.00 0.69

Industrial Plants 350psi Compressed Air Quick Connect 1

Body Size PARTNO. Thread A B HEX
1/4" CB-P1B-12MN-I 1/8-27 1.38 0.65 0.56
1/4" CB-P2B-12MN-I 1/4-18 1.56 0.65 0.56
1/4" CB-P3B-12MN-I 3/8-18 1.56 0.79 0.69
