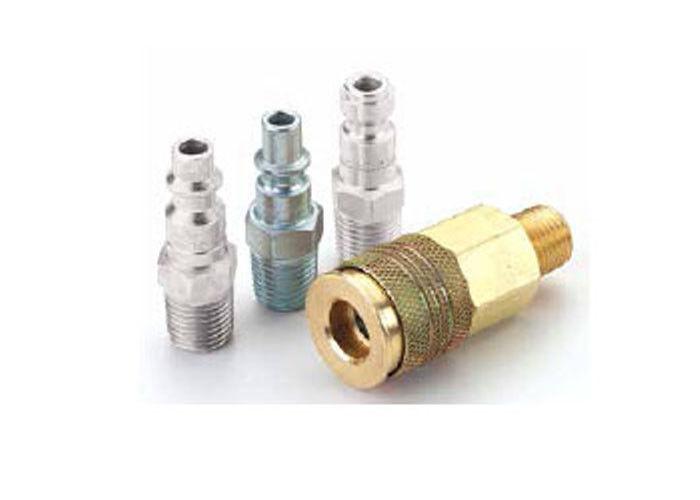

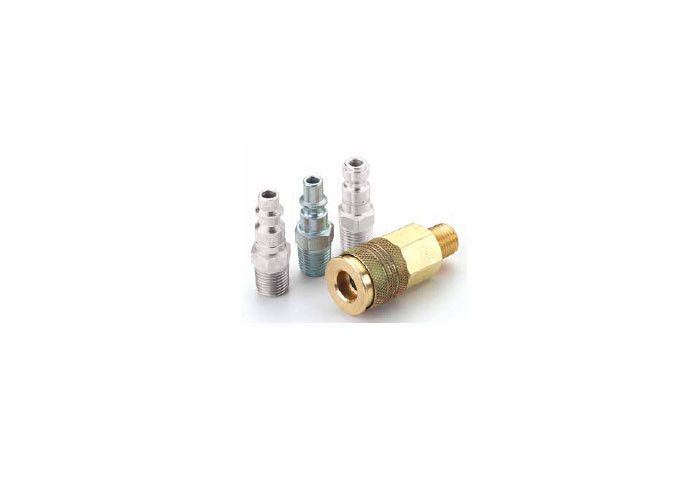

10 Bar 0.25'' High Flow Brass Compressed Air Coupling

10 Bar 0.25'' High Flow Brass Compressed Air Coupling

  • Highlight

    0.25'' compressed air coupling

    ,

    IATF 16949 compressed air coupling

    ,

    145psi pneumatic couplings

  • Name
    Coupling
  • Application
    Air Tools
  • Nominal
    1/4
  • Material
    Brass
  • Standard
    IATF16949
  • Surface Treatment
    Nickel,oxidation,gring,sand Blast,Hot Galvanized
  • Pressure
    10bar
  • Process
    Punching,fake
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-12
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

10 Bar 0.25'' High Flow Brass Compressed Air Coupling

1/4'' Applications in Air Tools High flow Brass Pneumatic Quick Coupling



CB-12 Series High flow, automatic Quick-Connect Couplings designed for use with compressed air.



Applications & Markets

• General Pneumatics

• Air Tools

• Construction



Features

  1. Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket end of line
  2. Sleeve guard protects against accidental disconnection
  3. Compatible with Hansen AUTO-FLO23Series



10 Bar 0.25'' High Flow Brass Compressed Air Coupling 0

Body Size PARTNO. Thread A B HEX
1/4" CB-S2B-12FN-G 1/4-18 2.02 0.94 0.81
1/4" CB-S2B-12FG-G 1/4-19 2.02 0.94 0.81
1/4" CB-S3B-12FN-G 3/8-18 2.02 0.94 0.81
1/4" CB-S3B-12FG-G 3/8-19 2.02 0.94 0.81
1/4" CB-S4B-12FG-G 1/2-14 2.34 0.94 1.06

10 Bar 0.25'' High Flow Brass Compressed Air Coupling 1



Body Size PARTNO. Thread C D HEX
1/4" CB-P1S-12FN 1/8-27 1.47 0.65 0.56
1/4" CB-P2S-12FN 1/4-18 1.63 0.79 0.69
1/4" CB-P3S-12FN 3/8-18 1.69 0.94 0.81
1/4" CB-P2B-12FN 1/4-18 1.63 0.78 0.69
1/4" CB-P2L-12FN 1/4-18 1.63 0.79 0.69
