Place of Origin:
Shanghai, China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-SP-10F-TG

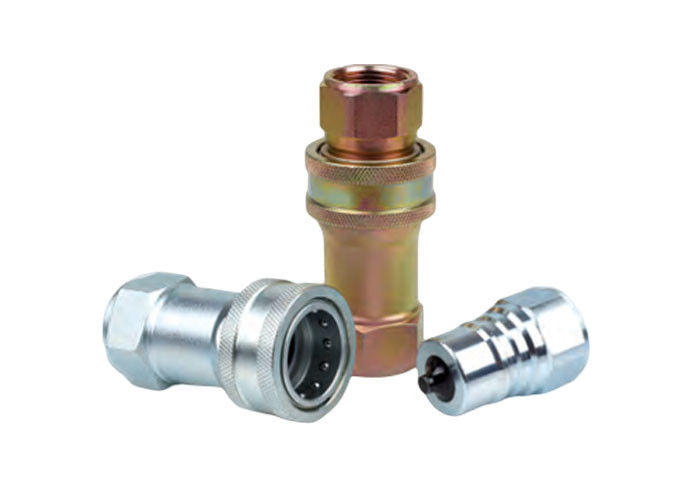

TG close type Socket with valve Plug with valve hydraulic quick coupling(steel)
The TG Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Specifications:
| BODY SIZE | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature range(std seals) | Standard seal material |
| 3/4" | 4000 | 28 | -20℃~+120℃ | NBR |
| 1" | 3000 | 50 |
TG Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socket and plug are precision machined from solid bar stock.
6.TG series conforms to the standard of ISO 7241-A..
| PARTNO. | LS | Φ D | HS | A | T |
| CB-S6S-TG | 85 | 49 | S38 | 19 | G3/4 NPT3/4 |
| CB-S8S-TG | 98.5 | 57 | S44.5 | 23 | G1 NPT1 |
| PARTNO. | LP | d | C | HP | A | T |
| CB-P6S-TG | 57 | 29 | 29 | S35 | 19 | G3/4 NPT3/4 |
| CB-P8S-TG | 65 | 34.3 | 34.3 | S41 | 23 | G1 NPT1 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
