Place of Origin:
China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-SP-10F-TG

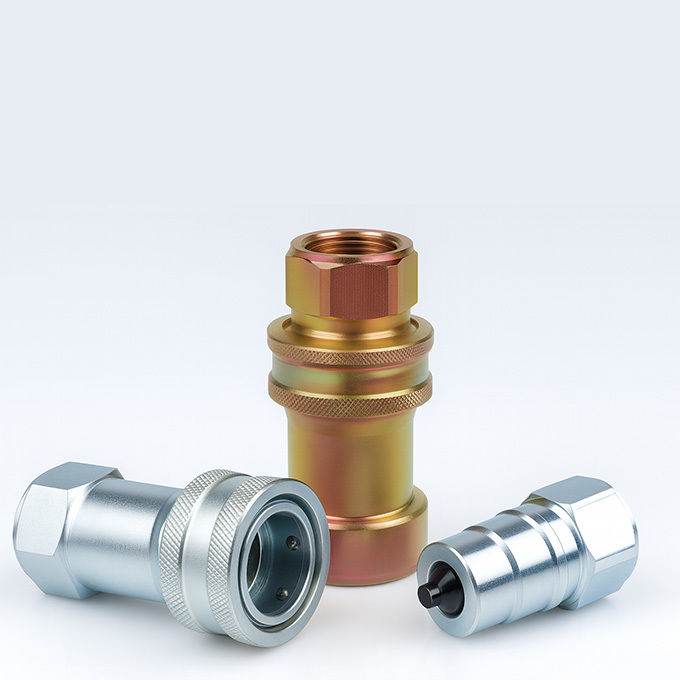

The CB-SP-10F-TG is a carbon steel hydraulic quick coupling engineered for robust industrial demands. Designed in accordance with the ISO 7241-A standard, this model integrates a valve-type plug, offering secure, leak-free connections in high-pressure and high-flow hydraulic systems.
Unlike standard couplings, the CB-SP-10F-TG combines hardened critical components with a reliable poppet valve system to ensure efficient flow control and minimized fluid loss. It is an ideal solution for users who need durability without the cost premium of stainless steel.
• Valve-Incorporated Plug Design
Ensures automatic shut-off during disconnection, reducing fluid spillage and contamination.
• Ball-Locking Mechanism
Maintains a tight, vibration-resistant connection under demanding conditions.
• Hardened Components
Increased wear resistance for extended service life, even in high-cycle environments.
• Precision Machining
Machined from solid carbon steel stock with reliable dimensional tolerance and sealing accuracy.
• ISO 7241-A Compatibility
Fully interchangeable with Parker 6600 Series, Faster ANV Series, Aeroquip 5600 Series, and Hansen HA 15000 Series.
| Body Size (inch) | 3/4" | 1" |
|---|---|---|
| Rated Pressure (PSI) | 3000 | 3000 |
| Rated Flow (GPM) | 28 | 50 |
| Temperature Range | -20°C to +120°C | |
| Seal Material (Standard) | NBR | |
| Material | Carbon Steel (Chrome-plated) |
Performance Curve:
Pressure drop performance available upon request. Standard test based on oil ISO 200SUS at 38°C.

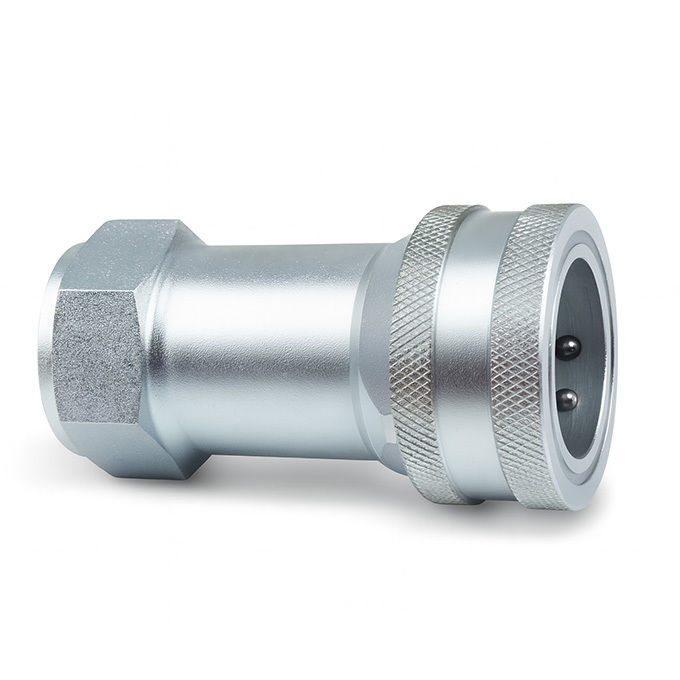

Female (Socket)
| PARTNO. | LS | Φ D | HS | A | T |
| CB-S6S-TG | 85 | 49 | S38 | 19 | G3/4 NPT3/4 |
| CB-S8S-TG | 98.5 | 57 | S44.5 | 23 | G1 NPT1 |

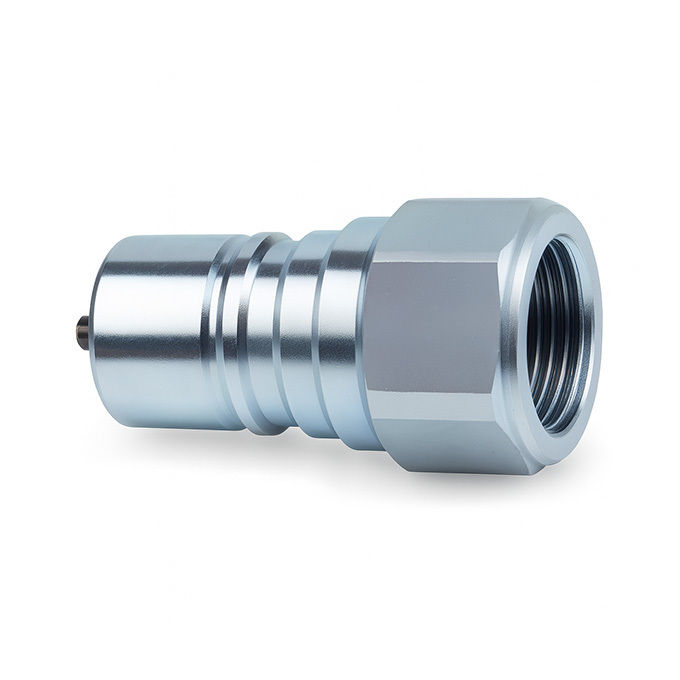

Male (Plug)
| PARTNO. | LP | d | C | HP | A | T |
| CB-P6S-TG | 57 | 29 | 29 | S35 | 19 | G3/4 NPT3/4 |
| CB-P8S-TG | 65 | 34.3 | 34.3 | S41 | 23 | G1 NPT1 |
The CB-SP-10F-TG is suitable for a wide range of industrial sectors, including:
• Construction Equipment – Excavators, loaders, rock breakers
• Forestry Machinery – Tree harvesters, mulchers
• Agricultural Systems – Hydraulic implements, sprayers
• Industrial Tools – Presses, injection molding machines
• General Hydraulic Circuits – Fluid transfer in mid-pressure mobile and stationary systems
Need a reliable hydraulic quick coupling without breaking the bank?
Request a quote for CB-SP-10F-TG today or contact us to discuss your system needs.
