Steel TG Close Type Socket Hydraulic Quick Coupling With Valve Plug

Steel TG Close Type Socket Hydraulic Quick Coupling With Valve Plug

  • High Light

    Close Type Hydraulic Quick Coupling

    ,

    Steel Hydraulic Quick Coupling 4000PSI

    ,

    Hydraulic Quick Coupler With Valve Plug

  • Material
    Steel
  • Rated Pressure
    4000PSI
  • Connection
    Female
  • Flow
    50GPM
  • Standard
    ISO 7241A
  • Size
    3/4''-1''
  • Oem
    Avaliable
  • Temperature Range
    -20℃~120℃
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-1
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

Steel TG Close Type Socket Hydraulic Quick Coupling With Valve Plug

TG close type Socket with valve Plug with valve hydraulic quick coupling(steel)



The TG Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.

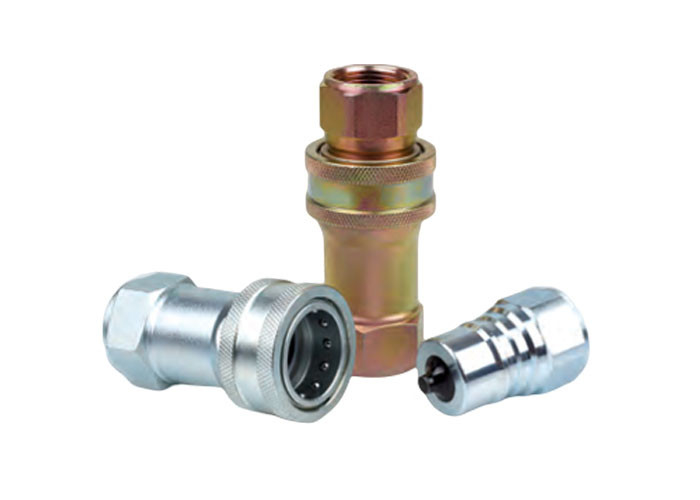

Steel TG Close Type Socket Hydraulic Quick Coupling With Valve Plug 0
 Specifications:

BODY SIZE Rated Pressure (PSI) Rated Flow (GPM) Temperature range(std seals) Standard seal material
3/4" 4000 28 -20℃~+120℃ NBR
1" 3000 50



TG Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socket and plug are precision machined from solid bar stock.
6.TG series conforms to the standard of ISO 7241-A..





Steel TG Close Type Socket Hydraulic Quick Coupling With Valve Plug 1

PARTNO. LS Φ D HS A T
CB-S6S-TG 85 49 S38 19 G3/4 NPT3/4
CB-S8S-TG 98.5 57 S44.5 23 G1 NPT1



Steel TG Close Type Socket Hydraulic Quick Coupling With Valve Plug 2

PARTNO. LP d C HP A T
CB-P6S-TG 57 29 29 S35 19 G3/4 NPT3/4
CB-P8S-TG 65 34.3 34.3 S41 23 G1 NPT1
