Female ISO 7241 A Quick Couplings , Stainless Steel Male Quick Disconnect

Female ISO 7241 A Quick Couplings , Stainless Steel Male Quick Disconnect

Female ISO 7241 A Quick Couplings

1'' ISO 7241 A Quick Couplings

IATF 16949 stainless steel male quick disconnect

Place of Origin:

Shanghai, China

Brand Name:

carterberg

Certification:

IATF16949

Model Number:

CB-SPM-10F

Contact Us
Request A Quote
Product Details
Material:
Zinc-plated Steel, Stainless Steel
Rated Pressure:
20.7 Mpa
Connection:
Female/Male
Rated Flow:
190 L/min
Type:
ISO 7241A
Size:
1/4''-1''
Valves:
Ball / Poppet
Interchange:
PARKER 6600 Series/HANSEN HA 15000 Series
Highlight:

Female ISO 7241 A Quick Couplings

,

1'' ISO 7241 A Quick Couplings

,

IATF 16949 stainless steel male quick disconnect

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
carton
Delivery Time
7-20 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
5000~20000 pc/month
Product Description

316 stainless steel Close Type Series Hydraulic Quick couplings


Standard Materials

  • stainless steel
  • Seals: NBR, Viton, EPDM

Features

  1. Ball lock
  2. Manual connect, disconnect
  3. Poppet valving
  4. Slim profile
  5. Zinc plated steel construction
  6. NPTF and BSPP end connections
  7. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.

CB-10 Series Quick Couplings are general purpose hydraulic and fluid transfer coupling that conforms to the dimensional requirements of ISO 7241 A Series. Body sizes are 1/4", 3/8", 1/2", 3/4" and 1". use on construction equipment, forestry equipment, agricultural machinery, oil tools, Oil equipment steel mill machinery, and other demanding hydraulic applications.

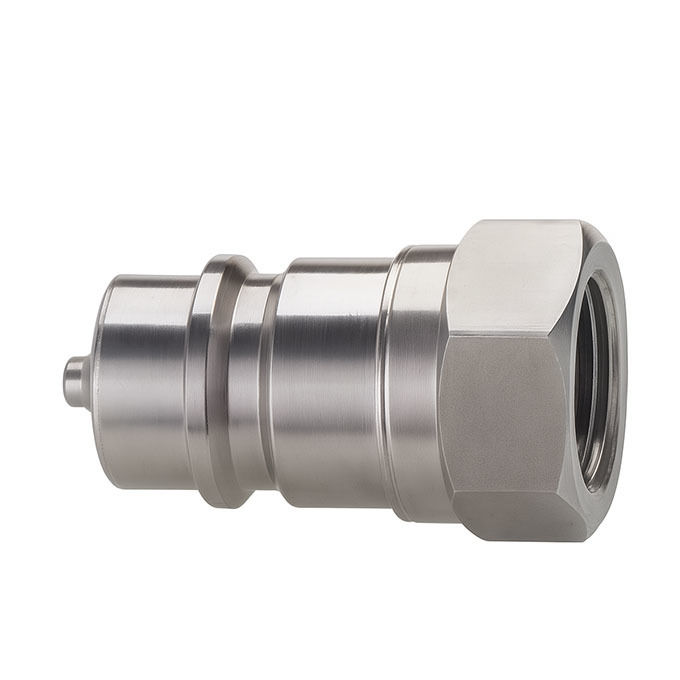

Female ISO 7241 A Quick Couplings , Stainless Steel Male Quick Disconnect 0  Female ISO 7241 A Quick Couplings , Stainless Steel Male Quick Disconnect 1

Body Size PARTNO. LS Φ D HS A T
1/4" CB-S2M-10F 50 26 19*6 13 G1/4 NPT1/4
3/8" CB-S3M-10F 60 31.5 22*6 14 G3/8 NPT3/8
1/2" CB-S4M-10F 68 39 27*6 16 G1/2 NPT1/2
3/4" CB-S6M-10F 80 48 34*6 18 G3/4 NPT3/4
1" CB-S8M-10F 99.5 53 41*6 21 G1 NPT1
1-1/4" CB-S10M-10F 112 69 50*6 25 G1-1/4 NPT1-1/4
1-1/2" CB-S12M-10F 127.5 84.5 60*6 25.5 G1-1/2 NPT1-1/2
2" CB-S16M-10F 158 99 75*6 26 G2 NPT2

Female ISO 7241 A Quick Couplings , Stainless Steel Male Quick Disconnect 2    Female ISO 7241 A Quick Couplings , Stainless Steel Male Quick Disconnect 3

Body Size PARTNO. LP C HP A T
1/4" CB-P2M-10F 35.5 15 19*6 13 G1/4 NPT1/4
3/8" CB-P3M-10F 42 26.5 22*6 14 G3/8 NPT3/8
1/2" CB-P4M-10F 46 26.5 27*6 16 G1/2 NPT1/2
3/4" CB-P6M-10F 54 28 34*6 18 G3/4 NPT3/4
1" CB-P8M-10F 65.5 35 41*6 21 G1 NPT1
1-1/4" CB-P10M-10F 70 45 50*6 25 G1-1/4 NPT1-1/4
1-1/2" CB-P12M-10F 78 51 60*6 25.5 G1-1/2 NPT1-1/2
2" CB-P16M-10F 98 61 75*6 26 G2 NPT2


Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
