Place of Origin:
China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-SPM-10F
• ISO 7241-A Standard Compatibility
Fully interchangeable with other ISO 7241-A standard couplers from global manufacturers.
| Body Size | PARTNO. | LS | Φ D | HS | A | T |
| 1/4" | CB-S2M-10F | 50 | 26 | 19*6 | 13 | G1/4 NPT1/4 |
| 3/8" | CB-S3M-10F | 60 | 31.5 | 22*6 | 14 | G3/8 NPT3/8 |
| 1/2" | CB-S4M-10F | 68 | 39 | 27*6 | 16 | G1/2 NPT1/2 |
| 3/4" | CB-S6M-10F | 80 | 48 | 34*6 | 18 | G3/4 NPT3/4 |
| 1" | CB-S8M-10F | 99.5 | 53 | 41*6 | 21 | G1 NPT1 |
| 1-1/4" | CB-S10M-10F | 112 | 69 | 50*6 | 25 | G1-1/4 NPT1-1/4 |
| 1-1/2" | CB-S12M-10F | 127.5 | 84.5 | 60*6 | 25.5 | G1-1/2 NPT1-1/2 |
| 2" | CB-S16M-10F | 158 | 99 | 75*6 | 26 | G2 NPT2 |
| Body Size | PARTNO. | LP | C | HP | A | T |
| 1/4" | CB-P2M-10F | 35.5 | 15 | 19*6 | 13 | G1/4 NPT1/4 |
| 3/8" | CB-P3M-10F | 42 | 26.5 | 22*6 | 14 | G3/8 NPT3/8 |
| 1/2" | CB-P4M-10F | 46 | 26.5 | 27*6 | 16 | G1/2 NPT1/2 |
| 3/4" | CB-P6M-10F | 54 | 28 | 34*6 | 18 | G3/4 NPT3/4 |
| 1" | CB-P8M-10F | 65.5 | 35 | 41*6 | 21 | G1 NPT1 |
| 1-1/4" | CB-P10M-10F | 70 | 45 | 50*6 | 25 | G1-1/4 NPT1-1/4 |
| 1-1/2" | CB-P12M-10F | 78 | 51 | 60*6 | 25.5 | G1-1/2 NPT1-1/2 |
| 2" | CB-P16M-10F | 98 | 61 | 75*6 | 26 | G2 NPT2 |

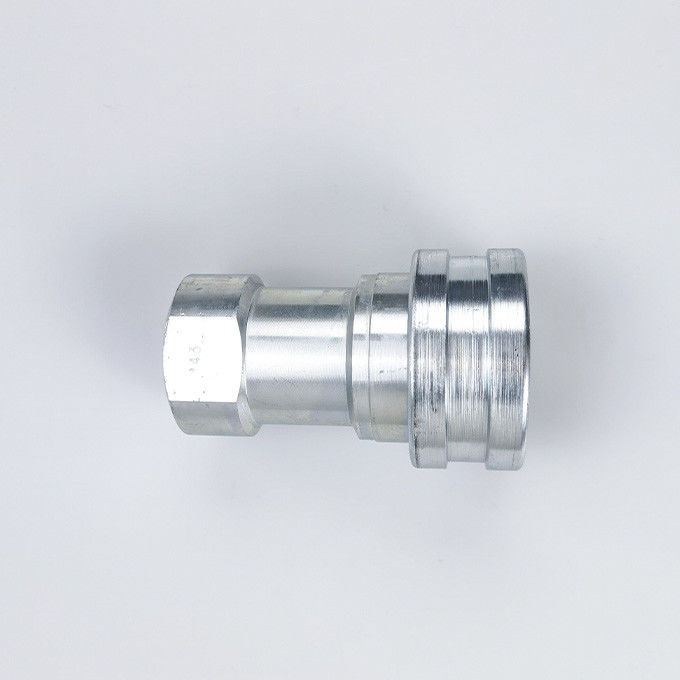

The CB-SPM-10F model from Carterberg is designed in full accordance with ISO 7241-A standards, ensuring compatibility with a wide range of brands in the market. This hydraulic quick coupling can be interchanged with similar models from Parker, Hansen, Faster, and other leading manufacturers. Whether you're replacing existing components or standardizing across systems, this coupler delivers a reliable and seamless fit.
Looking for other sizes or configurations in the ISO 7241-A series? Explore Carterberg’s full line of hydraulic quick couplings, including:
