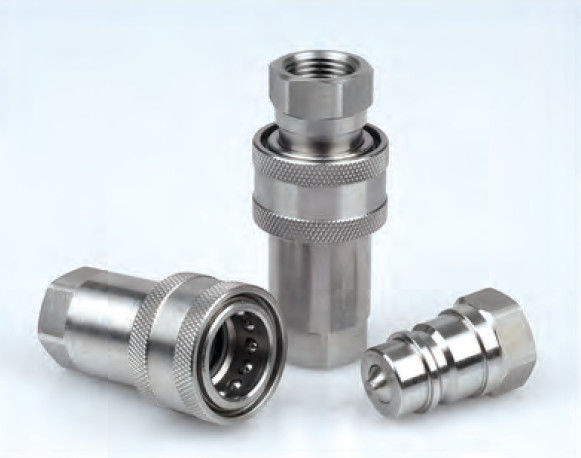

3/8'' 316 Stainless Steel Quick Connect Couplings

3/8'' 316 Stainless Steel Quick Connect Couplings

  • High Light

    316 Stainless Steel Quick Connect Couplings

    ,

    ISO 7241 A Stainless Steel Quick Connect Couplings

    ,

    IATF 16949 ss quick release coupling

  • Material
    Zinc-plated Steel, Stainless Steel
  • Rated Pressure
    20.7 Mpa
  • Connection
    Female/Male
  • Rated Flow
    190 L/min
  • Type
    ISO 7241A
  • Size
    1/4''-1''
  • Valves
    Ball / Poppet
  • Interchange
    PARKER 6600 Series/HANSEN HA 15000 Series
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-10
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

3/8'' 316 Stainless Steel Quick Connect Couplings

316 stainless steel Close Type Series Hydraulic Quick couplings



As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.



CB-10 Series Quick Couplings are general purpose hydraulic and fluid transfer coupling that conforms to the dimensional requirements of ISO 7241 A Series. Body sizes are 1/4", 3/8", 1/2", 3/4" and 1". use on construction equipment, forestry equipment, agricultural machinery, oil tools, Oil equipment steel mill machinery, and other demanding hydraulic applications.



Standard Materials

  • stainless steel
  • Seals: NBR, Viton, EPDM

Features

  1. Ball lock
  2. Manual connect, disconnect
  3. Poppet valving
  4. Slim profile
  5. Zinc plated steel construction
  6. NPTF and BSPP end connections
  7. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.

3/8'' 316 Stainless Steel Quick Connect Couplings 0

Body Size PARTNO. Thread A B Across Flats
1/4" CB-S2L-10FN/CB-S2M-10FN 1/4-18 1.89 0.98 0.75
1/4" CB-S2L-10FG/CB-S2M-10FG 1/4-19 1.89 0.98 0.75
3/8" CB-S3L-10FN/CB-S3M-10FN 3/8-18 2.21 1.18 0.91
3/8" CB-S3L-10FG/CB-S3M-10FG 3/8-19 2.21 1.18 0.91
1/2" CB-S4L-10FN/CB-S4M-10FN 1/2-14 2.64 1.49 1.06
1/2" CB-S4L-10FG/CB-S4M-10FG 1/2-14 2.64 1.49 1.06
3/4" CB-S6L-10FN/CB-S6M-10FN 3/4-14 3.25 1.88 1.38
3/4" CB-S6L-10FG/CB-S6M-10FG 3/4-14 3.25 1.88 1.38
1" CB-S8L-10FN/CB-S8M-10FN 1-11 3.86 2.08 1.62
1" CB-S8L-10FG/CB-S8M-10FG 1-11 3.86 2.08 1.62

3/8'' 316 Stainless Steel Quick Connect Couplings 1

Body Size PARTNO. Thread C D E HEX
1/4" CB-P2L-10FN/ CB-P2M-10FN 1/4-18 1.41 0.86 0.80 0.75
1/4" CB-P2L-10FG/ CB-P2M-10FG 1/4-19 1.41 0.86 0.80 0.75
3/8" CB-P3L-10FN/ CB-P3M-10FN 3/8-18 1.63 1.04 0.79 0.91
3/8" CB-P3L-10FG/ CB-P3M-10FG 3/8-19 1.63 1.04 0.79 0.91
1/2" CB-P4L-10FN/ CB-P4M-10FN 1/2-14 1.92 1.22 0.92 1.06
1/2" CB-P4L-10FG/ CB-P4M-10FG 1/2-14 1.92 1.22 0.92 1.06
3/4" CB-P6L-10FN/ CB-P6M-10FN 3/4-14 2.42 1.58 1.09 1.38
3/4" CB-P6L-10FG/ CB-P6M-10FG 3/4-14 2.42 1.58 1.09 1.38
1" CB-P8L-10FN/ CB-P8M-10FN 1-11 2.83 1.85 1.19 1.62
1" CB-P8L-10FG/ CB-P8M-10FG 1-11 2.83 1.85 1.19 1.62
