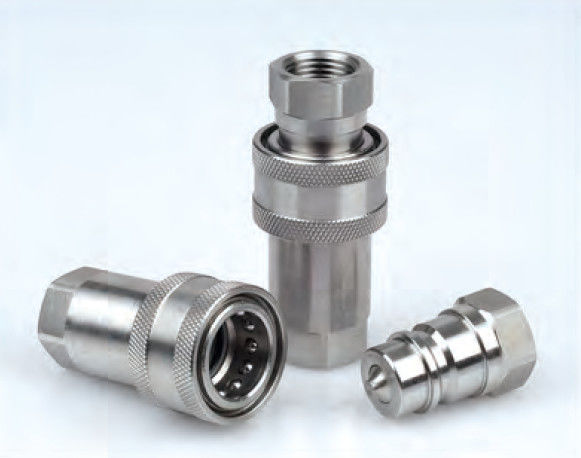

316 stainless steel Close Type Series Hydraulic Quick couplings
CB-10 Series Quick Couplings are general purpose hydraulic and fluid transfer coupling that conforms to the dimensional requirements of ISO 7241 A Series. Body sizes are 1/4", 3/8", 1/2", 3/4" and 1". use on construction equipment, forestry equipment, agricultural machinery, oil tools, Oil equipment steel mill machinery, and other demanding hydraulic applications.
Standard Materials
Features
| Body Size | PARTNO. | Thread | A | B | Across Flats |
| 1/4" | CB-S2L-10FN/CB-S2M-10FN | 1/4-18 | 1.89 | 0.98 | 0.75 |
| 1/4" | CB-S2L-10FG/CB-S2M-10FG | 1/4-19 | 1.89 | 0.98 | 0.75 |
| 3/8" | CB-S3L-10FN/CB-S3M-10FN | 3/8-18 | 2.21 | 1.18 | 0.91 |
| 3/8" | CB-S3L-10FG/CB-S3M-10FG | 3/8-19 | 2.21 | 1.18 | 0.91 |
| 1/2" | CB-S4L-10FN/CB-S4M-10FN | 1/2-14 | 2.64 | 1.49 | 1.06 |
| 1/2" | CB-S4L-10FG/CB-S4M-10FG | 1/2-14 | 2.64 | 1.49 | 1.06 |
| 3/4" | CB-S6L-10FN/CB-S6M-10FN | 3/4-14 | 3.25 | 1.88 | 1.38 |
| 3/4" | CB-S6L-10FG/CB-S6M-10FG | 3/4-14 | 3.25 | 1.88 | 1.38 |
| 1" | CB-S8L-10FN/CB-S8M-10FN | 1-11 | 3.86 | 2.08 | 1.62 |
| 1" | CB-S8L-10FG/CB-S8M-10FG | 1-11 | 3.86 | 2.08 | 1.62 |
| Body Size | PARTNO. | Thread | C | D | E | HEX | |
| 1/4" | CB-P2L-10FN/ CB-P2M-10FN | 1/4-18 | 1.41 | 0.86 | 0.80 | 0.75 | |
| 1/4" | CB-P2L-10FG/ CB-P2M-10FG | 1/4-19 | 1.41 | 0.86 | 0.80 | 0.75 | |
| 3/8" | CB-P3L-10FN/ CB-P3M-10FN | 3/8-18 | 1.63 | 1.04 | 0.79 | 0.91 | |
| 3/8" | CB-P3L-10FG/ CB-P3M-10FG | 3/8-19 | 1.63 | 1.04 | 0.79 | 0.91 | |
| 1/2" | CB-P4L-10FN/ CB-P4M-10FN | 1/2-14 | 1.92 | 1.22 | 0.92 | 1.06 | |
| 1/2" | CB-P4L-10FG/ CB-P4M-10FG | 1/2-14 | 1.92 | 1.22 | 0.92 | 1.06 | |
| 3/4" | CB-P6L-10FN/ CB-P6M-10FN | 3/4-14 | 2.42 | 1.58 | 1.09 | 1.38 | |
| 3/4" | CB-P6L-10FG/ CB-P6M-10FG | 3/4-14 | 2.42 | 1.58 | 1.09 | 1.38 | |
| 1" | CB-P8L-10FN/ CB-P8M-10FN | 1-11 | 2.83 | 1.85 | 1.19 | 1.62 | |
| 1" | CB-P8L-10FG/ CB-P8M-10FG | 1-11 | 2.83 | 1.85 | 1.19 | 1.62 | |
