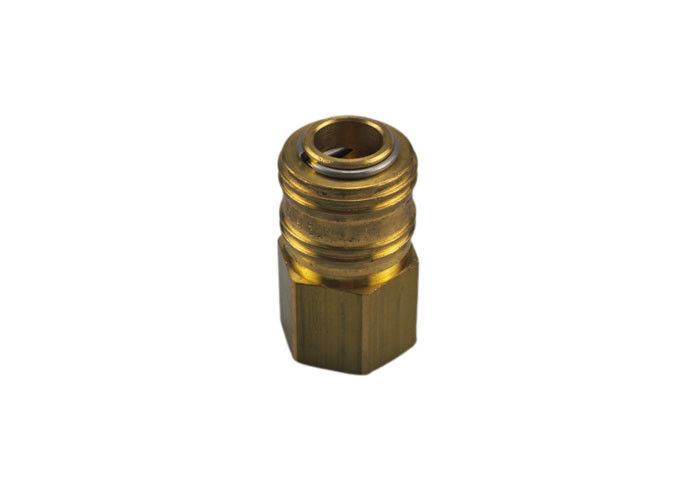

300psi Female Pneumatic Quick Coupling , Compressed Air Quick Connect Fittings

300psi Female Pneumatic Quick Coupling , Compressed Air Quick Connect Fittings

  • High Light

    300psi Pneumatic Quick Coupling

    ,

    CB-12 Pneumatic Quick Coupling

    ,

    0.25'' compressed air quick connect fittings

  • Pressure
    300psi
  • Thread
    Female
  • Temperature
    -20℃ ~ 120℃
  • Product Name
    Quick Coupling
  • Application
    General
  • Size
    1/4"
  • Type
    Fittings
  • Standard
    IATF16949
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-12
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

300psi Female Pneumatic Quick Coupling , Compressed Air Quick Connect Fittings

Flow equals that of most 3/8" couplings High flow capacity female quick release coupling



CB-12 Series ring lock series quick disconnect pneumatic couplings have a unique interchange which designed for use with compressed air.



Features

  1. High Flow capacity
  2. Push to connect with a ring lock Sleeve
  3. Ring lock design prevents accidental disconnection
  4. To disconnect rotate sleeve 20 degrees
  5. Applications • Shipyards • General Pneumatics • Mining • Marine

    Standard Materials

  6. Zinc trivalent plated stee
  7. Seals: NBR, Viton, EPDM
  8. Compatible with Hansen 2RL Series

300psi Female Pneumatic Quick Coupling , Compressed Air Quick Connect Fittings 0



Body Size PARTNO. Thread A B HEX
1/4" CB-S1S-12FN-K 1/8-27 1.91 1.06 0.88
1/4" CB-S2S-12FN-K 1/4-18 1.91 1.06 0.88
1/4" CB-S3S-12FN-K 3/8-18 2.16 1.06 0.88
1/4" CB-S4S-12FN-K 1/2-14 2.43 1.06 1.00

300psi Female Pneumatic Quick Coupling , Compressed Air Quick Connect Fittings 1

Body Size PARTNO. Thread C D HEX
1/4" CB-P1S-12FN-K 1/8-27 1.36 0.65 0.56
1/4" CB-P2S-12FN-K 1/4-18 1.54 0.79 0.69
1/4" CB-P3S-12FN-K 3/8-18 1.88 0.94 0.81
1/4" CB-P4S-12FN-K 1/2-14 2.18 1.15 1.00
