Place of Origin:
Shanghai, China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-SP-10F-3

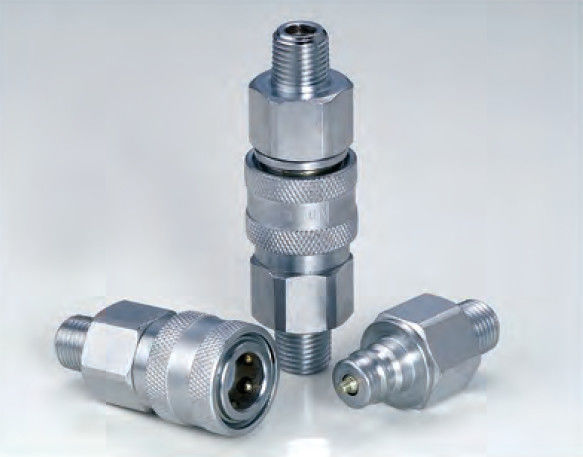

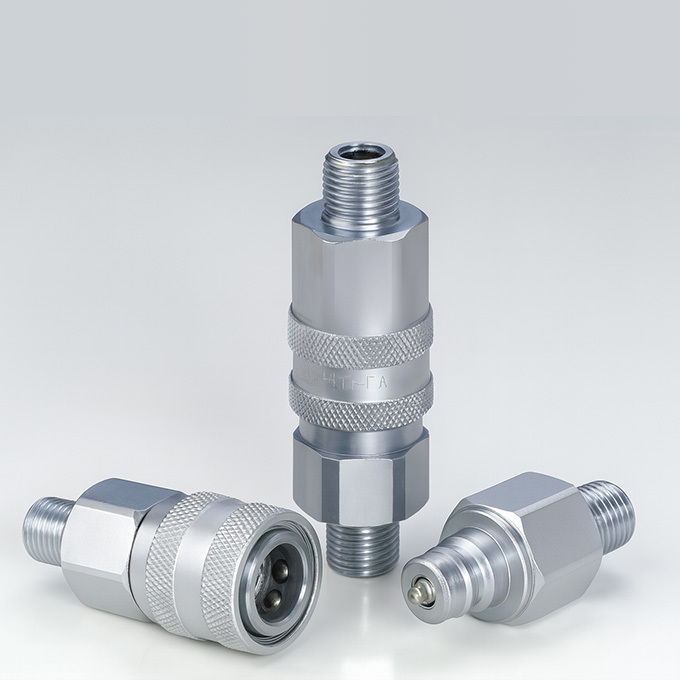

IATF 16949 used in various industries Quick Disconnect Fittings
The Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications
| Body Size (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure (PSI) | 5000 | 4000 | 4000 | 3000 | 3000 |
| Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range (std seals) | -20℃至+120℃ | ||||
| Standard seal material | NBR | ||||
Features
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together
5.Socket and plug are precision machined from solid bar stock.
6.The series conforms to the standard of ISO 7241-A.
7. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series
| Body Size | PARTNO. | LS | Φ D | HEX1 | A | T |
| 1/4" | CB-S2S-10F-3 | 53.5 | 26 | 22 | 13 | ZG1/4 NPT1/4 |
| 3/8" | CB-S3S-10F-3 | 57.5 | 31.5 | 27 | 13 | ZG3/8 NPT3/8 |
| 1/2" | CB-S4S-10F-3 | 66.5 | 38.5 | 27 | 16 | ZG1/2 NPT1/2 |
| 3/4" | CB-S6S-10F-3 | 81.5 | 48 | 36 | 18 | ZG3/4 NPT3/4 |
| 1" | CB-S8S-10F-3 | 96 | 56 | 41 | 21 | ZG1 NPT1 |
| Body Size | PARTNO. | LP | d | C | HEX2 | A | T |
| 1/4" | CB-P2S-10F-3 | 46 | 11.8 | 15.2 | 22 | 13 | ZG1/4 NPT1/4 |
| 3/8" | CB-P3S-10F-3 | 53 | 17.3 | 21.4 | 27 | 13 | ZG3/8 NPT3/8 |
| 1/2" | CB-P4S-10F-3 | 62.5 | 20.5 | 27 | 27 | 16 | ZG1/2 NPT1/2 |
| 3/4" | CB-P6S-10F-3 | 66.5 | 29 | 28 | 36 | 18 | ZG3/4 NPT3/4 |
| 1" | CB-P8S-10F-3 | 79 | 34.3 | 36 | 41 | 21 | ZG1 NPT1 |
