Place of Origin:
China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-SP-10M-3
The CB-SP-10M-3 is a high-performance ISO 7241-A hydraulic quick coupling designed for general-purpose and demanding industrial applications. Made from hardened carbon steel, it offers a reliable and economical alternative to stainless steel variants — especially where extreme corrosion resistance is not a primary concern.
Whether you’re operating heavy equipment, managing construction hydraulics, or outfitting mobile machinery, this coupling delivers strength, simplicity, and compatibility.
• ISO 7241-A Compatibility – Fully interchangeable with Parker 6600, Faster ANV, Aeroquip 5600, and Hansen HA 15000 series
• Hardened Carbon Steel Construction – High mechanical durability with surface-hardened components for wear resistance
• Poppet Valve System – Minimizes fluid spillage and maintains line integrity during disconnection
• Ball Lock Retention – Secure connection even under vibration
• Push-to-Connect Design – Simplifies installation and quick maintenance
• Rated for Up to 5000 PSI – Suitable for high-pressure hydraulic systems
• Standard Seal: NBR – Ideal for mineral oils and general hydraulic fluids, operating from -20°C to +120°C
| Size (in) | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature Range | Seal Material |
|---|---|---|---|---|
| 1/4 | 5000 | 3 | -20°C to +120°C | NBR |
| 3/8 | 4000 | 6 | -20°C to +120°C | NBR |
| 1/2 | 4000 | 12 | -20°C to +120°C | NBR |
| 3/4 | 3000 | 28 | -20°C to +120°C | NBR |

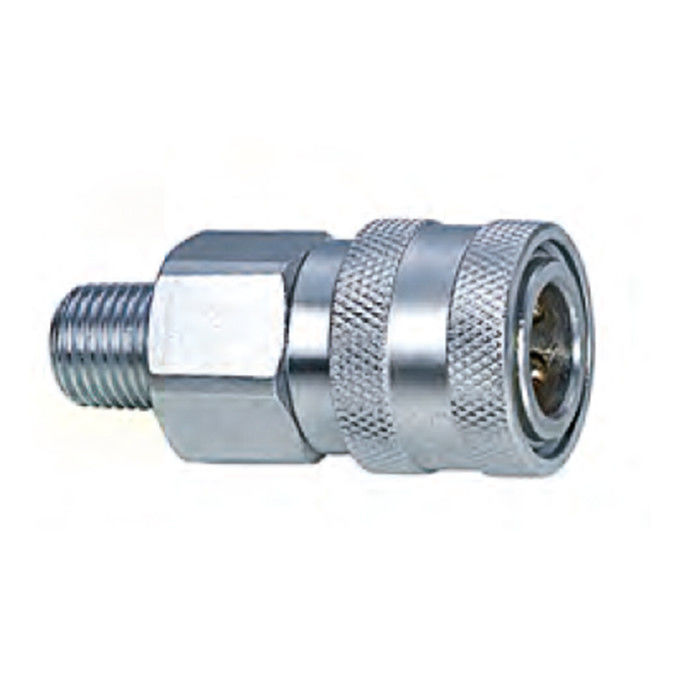

Female (Socket)
| Body Size | PARTNO. | LS | Φ D | HEX1 | A | T |
| 1/4" | CB-S2S-10F-3 | 53.5 | 26 | 22 | 13 | ZG1/4 NPT1/4 |
| 3/8" | CB-S3S-10F-3 | 57.5 | 31.5 | 27 | 13 | ZG3/8 NPT3/8 |
| 1/2" | CB-S4S-10F-3 | 66.5 | 38.5 | 27 | 16 | ZG1/2 NPT1/2 |
| 3/4" | CB-S6S-10F-3 | 81.5 | 48 | 36 | 18 | ZG3/4 NPT3/4 |
| 1" | CB-S8S-10F-3 | 96 | 56 | 41 | 21 | ZG1 NPT1 |

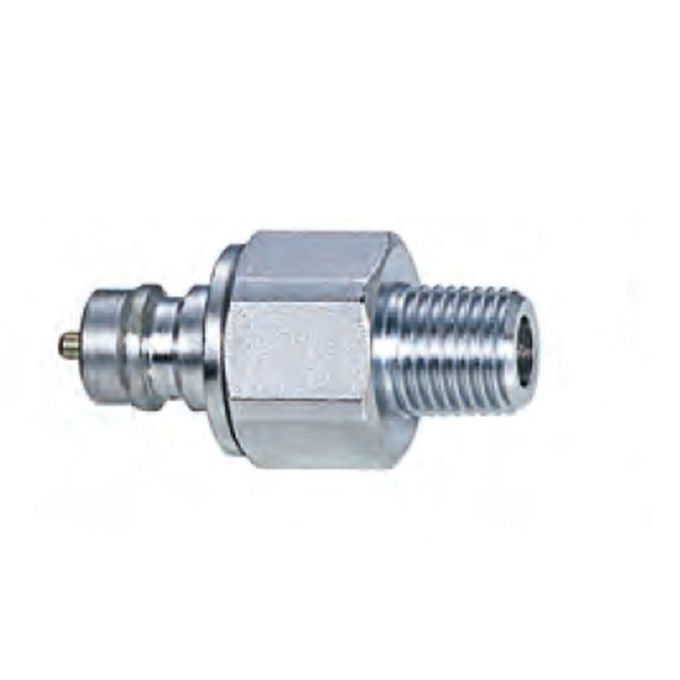

Male (Plug)
| Body Size | PARTNO. | LP | d | C | HEX2 | A | T |
| 1/4" | CB-P2S-10F-3 | 46 | 11.8 | 15.2 | 22 | 13 | ZG1/4 NPT1/4 |
| 3/8" | CB-P3S-10F-3 | 53 | 17.3 | 21.4 | 27 | 13 | ZG3/8 NPT3/8 |
| 1/2" | CB-P4S-10F-3 | 62.5 | 20.5 | 27 | 27 | 16 | ZG1/2 NPT1/2 |
| 3/4" | CB-P6S-10F-3 | 66.5 | 29 | 28 | 36 | 18 | ZG3/4 NPT3/4 |
| 1" | CB-P8S-10F-3 | 79 | 34.3 | 36 | 41 | 21 | ZG1 NPT1 |
Why Choose CB-SP-10M-3?
If you're sourcing a hydraulic quick coupler for tough, non-corrosive environments, carbon steel offers clear advantages in terms of strength and cost-efficiency.
| Feature | CB-SP-10M-3 (Carbon Steel) | CB-SPM-10F-A / CB-SPL-10F (316 SS) |
|---|---|---|
| Material | Hardened Carbon Steel | 316 Stainless Steel |
| Corrosion Resistance | Moderate (not for marine/chemical) | Excellent (marine, chemical, CIP) |
| Temperature Rating | Up to 120°C | Up to 200°C (Viton seal) |
| Pressure Rating | Up to 5000 PSI | Up to 4565 PSI |
| Seal Material | NBR (standard) | Viton® (standard) |
| Cost Efficiency | High | Higher cost |
| Ideal Use | General hydraulics, construction, farm | Offshore, food-grade, chemical systems |
