Product Details
Serise:
Threaded-hydraulic-quick-coupling
Size:
1/4", 3/8", 1/2", 3/4", 1"
Material:
Chrome-plated Steel
Working Pressure:
5000 Psi
Rated Flow:
50 Gpm
Operating Temperature:
–20°C To +120°C
Application:
Excavator And Earthmoving Fluid Systems, High-pulse Hydraulic Circuits On Drilling Machines, Mobile Hydraulic Power Units
Interchangeable:
Faster CVV Series, Stucchi VD Series
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
carton
Delivery Time
7-20 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
5000~20000 pc/month
Product Description

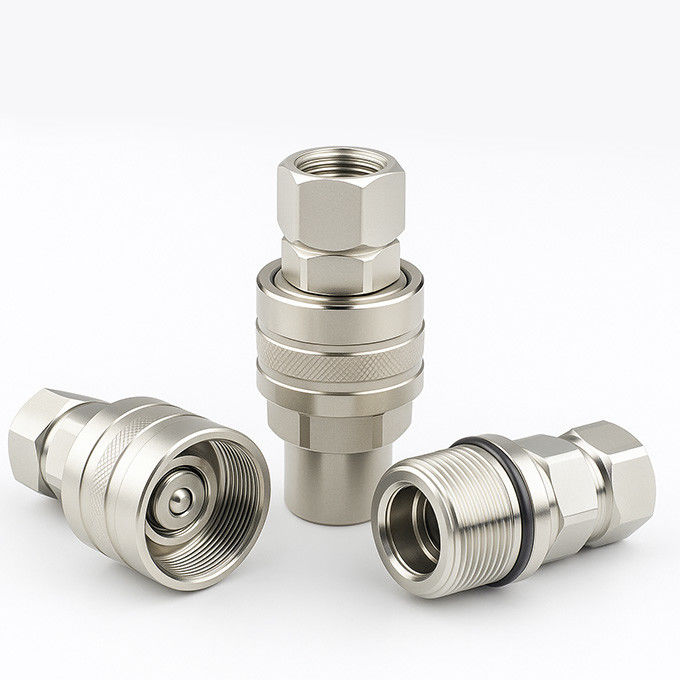

CB-SPS-3FN-CVV Threaded Sleeve-Lock Hydraulic Coupling

The CB-SPS-3FN-CVV is a high-durability threaded quick coupling engineered by Carterberg, built to withstand hydraulic pulses, frequent flow surges, and harsh outdoor environments. Its compact sleeve-lock structure allows for secure manual connection with matching threads on the nipple side, ideal for construction equipment, excavators, and fluid transfer systems.
Manufactured from solid barstock and treated with advanced chrome plating, this model offers excellent corrosion resistance and consistent alignment under vibration.

Key Features

•  Threaded Sleeve Lock Mechanism
Secure connection achieved by threading female sleeve onto male nipple, resistant to accidental decoupling under pressure.
•  Anti-Impulse Valve Design
Specially designed to mitigate damage from sudden hydraulic surges and pressure spikes.
•  Valve Retainer with Positive Stop Ring
Ensures accurate internal valve alignment, maintaining reliable shut-off under dynamic conditions.
•  Machined Chrome-Plated Steel Construction
High corrosion resistance and long service life in outdoor or mobile hydraulic systems.
•  Interchangeable Profile
Compatible with FASTER CVV series and STUCCHI VD series threaded couplers.

 Technical Specifications

Parameter Value
Model CB-SPS-3FN-CVV
Connection Type Threaded sleeve with locking ring
Valve Type Dual shut-off
Seal Material NBR (Buna-N)
Body Material Chrome-plated steel
Available Sizes 1/4", 3/8", 1/2", 3/4", 1"
Rated Pressure 5000 PSI (1/4", 3/8", 1/2")4500 PSI (3/4", 1")
Rated Flow (GPM) 3, 6, 12, 28, 50
Temperature Range –20°C to +120°C
Interchange Compatibility Faster CVV Series, Stucchi VD Series

Dimensional Overview

Female (Socket)

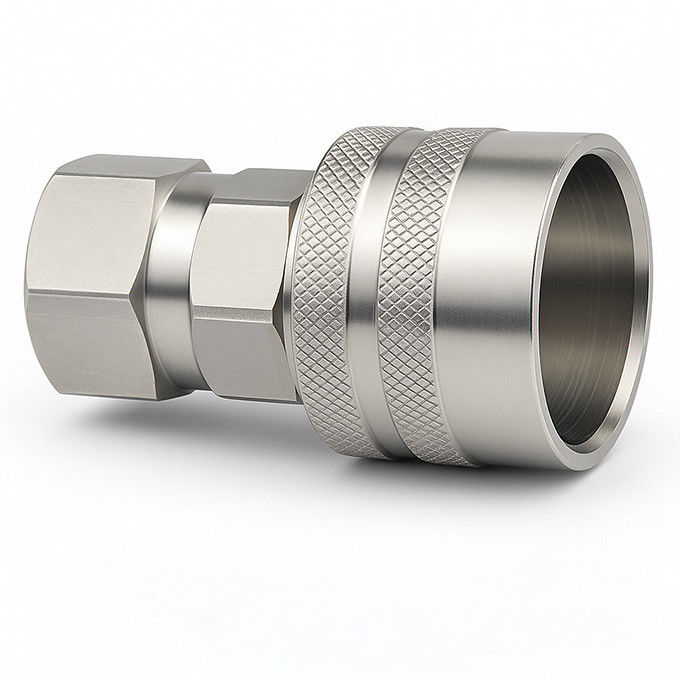

threaded-hydraulic-quick-couplings-cb-sps-3fn-cvv 0

PART NO. LS D HEX1 HEX3 A T
CB-S2S-CVV 58.6 34 S19六角 S30对边 13 G1/4 NPT1/4
CB-S3S-BA 66.5 34 S22六角 S30对边 13 G3/8 NPT3/8
CB-S4S-BA 76.5 42 S27六角 S36对边 18 G1/2 NPT1/2
CB-S6S-BA 89.5 48 S36六角 S41对边 18 G3/4 NPT3/4
CB-S8S-BA 105.5 56.5 S41六角 S51对边 24.5 G1 NPT1


Mmale (Plug)

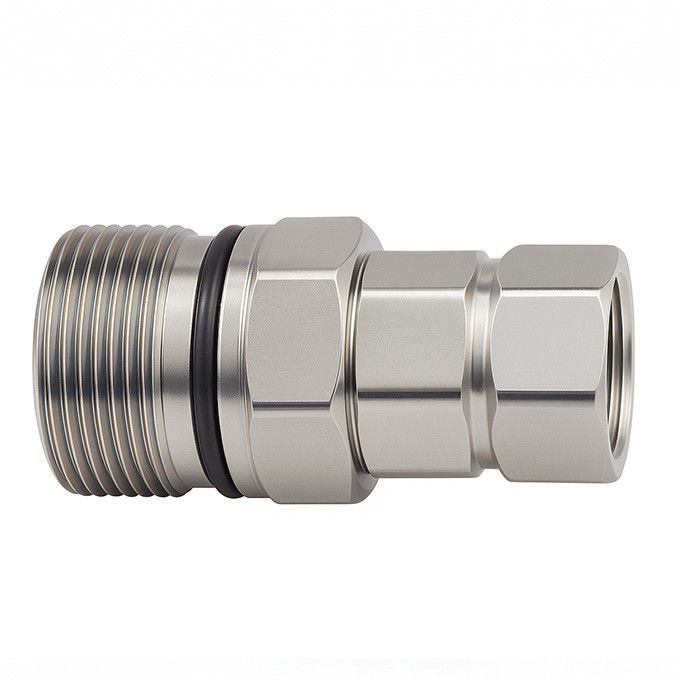

threaded-hydraulic-quick-couplings-cb-sps-3fn-cvv 1

PART NO. LP d HEX2 A T
CB-P2S-CVV 60 M24*2 S19六角 13 G1/4 NPT1/4
CB-P3S-BA 55.3 M28*2 S22六角 13 G3/8 NPT3/8
CB-P4S-BA 61.5 M36*2 S27六角 18 G1/2 NPT1/2
CB-P6S-BA 83.5 M42*2 S36六角 18 G3/4 NPT3/4
CB-P8S-BA 94.5 M48*3 S41六角 24.5 G1 NPT1


Application Fields

•  Excavator and earthmoving fluid systems
•  High-pulse hydraulic circuits on drilling machines
•  Mobile hydraulic power units
•  Vehicle-mounted repair equipment
•  Agricultural hydraulic manifolds

Structural Advantages

Feature Function
Sleeve-lock threaded connection Strong grip and pressure integrity under vibration
Dual shut-off poppet valve Leak-proof disconnection during frequent operation
Anti-rust plating Stable outdoor performance
Valve retainer ring Ensures positive valve seating and alignment
