Place of Origin:
Shanghai, China
Brand Name:
Carterberg
Certification:
IATF16949
Model Number:
CB-SPS-3FN-BA
| Parameter | Value |
|---|---|
| Model | CB-SPS-3FN-BA |
| Connection Type | Threaded Sleeve Lock |
| Valve Type | Dual Shut-Off |
| Seal Material | NBR (Buna-N) |
| Body Material | Chrome-plated steel |
| Rated Pressure | 10,000 PSI (1/4", 3/8", 1/2")8,500 PSI (3/4")6,000 PSI (1") |
| Rated Flow (GPM) | 3, 6, 12, 28, 50 |
| Temperature Range | –20°C to +120°C |
| Sizes Available | 1/4", 3/8", 1/2", 3/4", 1" |

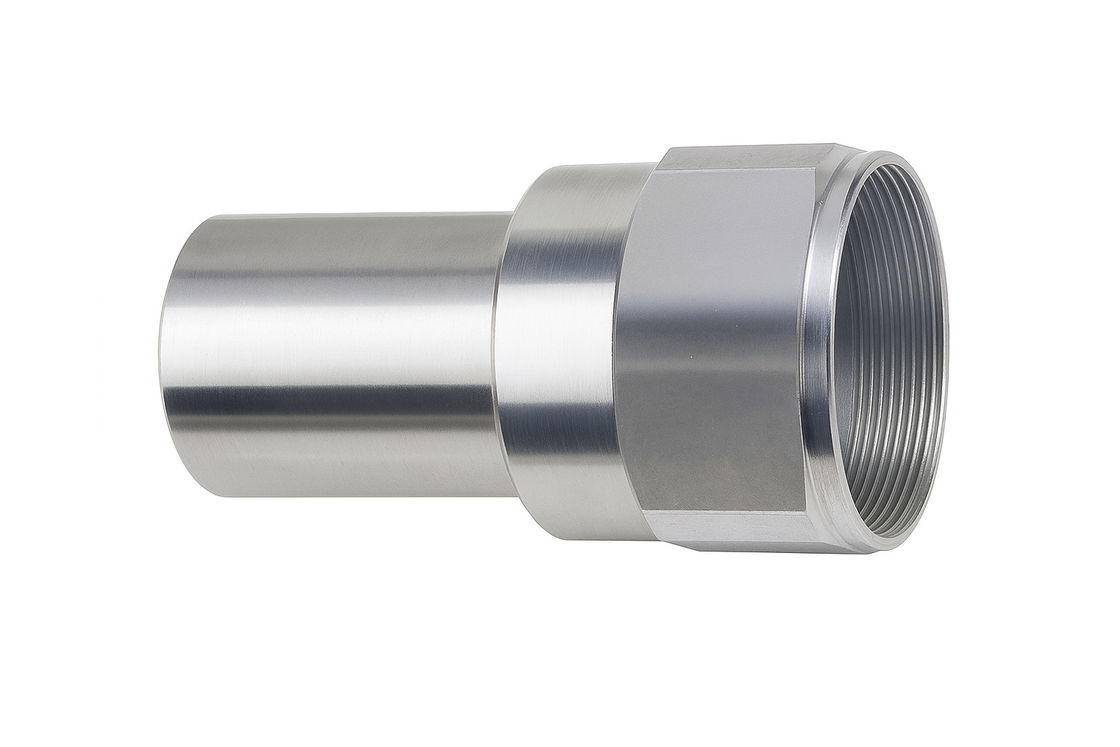

Famale (Socket)
| PART NO. | LS | D | HEX1 | A | T |
| CB-S2S-BA | 58.9 | S32六角 | S19对边 | 13 | G1/4 NPT1/4 |
| CB-S3S-BA | 66.5 | S36六角 | S22对边 | 16 | G3/8 NPT3/8 |
| CB-S4S-BA | 76.5 | S39六角 | S27对边 | 18 | G1/2 NPT1/2 |
| CB-S6S-BA | 89.5 | S50六角 | S35对边 | 20.5 | G3/4 NPT3/4 |
| CB-S8S-BA | 105.5 | S65六角 | S41对边 | 20.5 | G1 NPT1 |

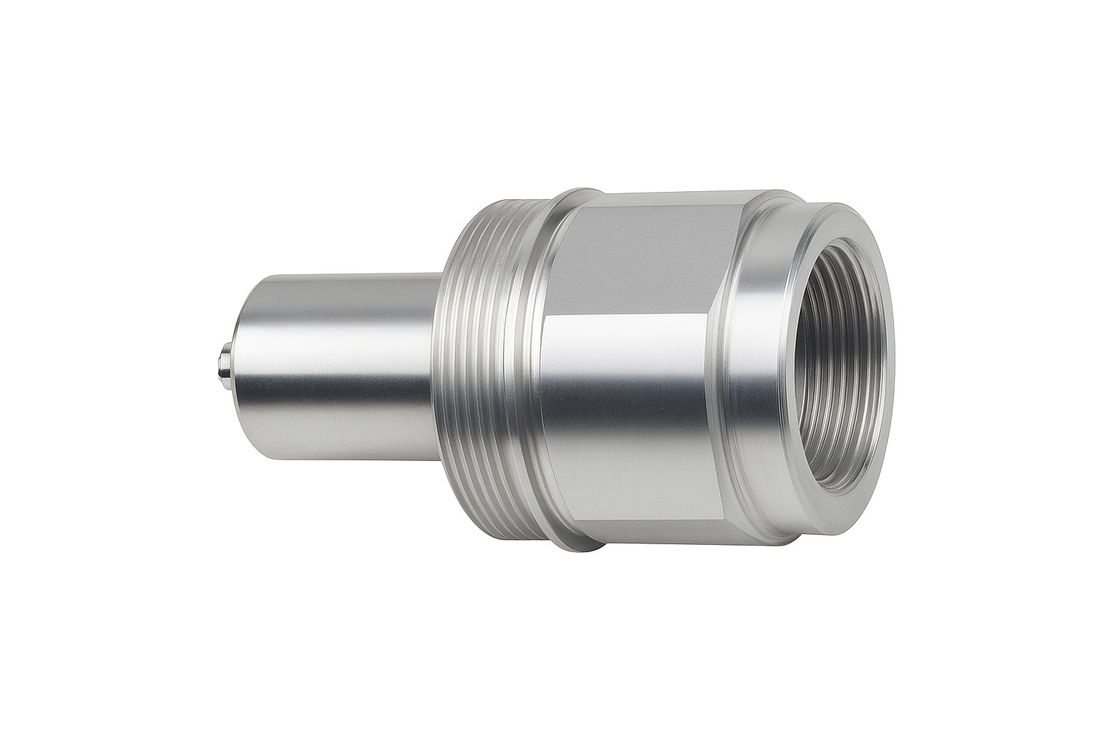

Mmale (Plug)
| PART NO. | LP | C | HEX2 | A | T |
| CB-P2S-BA | 36 | 12.5 | S19对边 | 13 | G1/4 NPT1/4 |
| CB-P3S-BA | 40.5 | 16 | S22对边 | 16 | G3/8 NPT3/8 |
| CB-P4S-BA | 49 | 17 | S27对边 | 18 | G1/2 NPT1/2 |
| CB-P6S-BA | 56 | 19 | S35对边 | 20.5 | G3/4 NPT3/4 |
| CB-P8S-BA | 66 | 22 | S41对边 | 20.5 | G1 NPT1 |
| Feature | Benefit |
|---|---|
| Sleeve thread lock | Prevents loosening under vibration or pulse |
| Chrome-plated steel | Withstands corrosion and surface damage |
| Dual shut-off valve | Reduces contamination and leakage |
| Tool-free engagement | Enables safe field use by operators |
