Place of Origin:
Shanghai, China
Brand Name:
Carterberg
Certification:
IATF16949
Model Number:
CB-SP-6FN-FF
| Component | Material / Finish |
|---|---|
| Body | Zinc-plated steel with bichromate or QPQ |
| Sleeve | QPQ-finished steel |
| Valves | Steel, black finish |
| End Connections | Zinc-plated steel |
| Springs & Balls | AISI 302 stainless steel |
| Seals | Nitrile (NBR) |
| Dust Caps / Plugs | Red PVC (other options available) |
| Parameter | Specification |
|---|---|
| Standard | ISO 16028 |
| Connection Type | Push-to-connect with locking sleeve |
| Working Pressure | Up to 350 bar / 5075 PSI |
| Rated Flow | 12 – 155 l/min |
| Temperature Range | –20°C to +100°C (–4°F to +212°F) |
| Spillage per Disconnect | 0.008 – 0.03 ml |
| Sizes Available | 1/4", 3/8", 5/8", 3/4", 1", 1-1/4" |

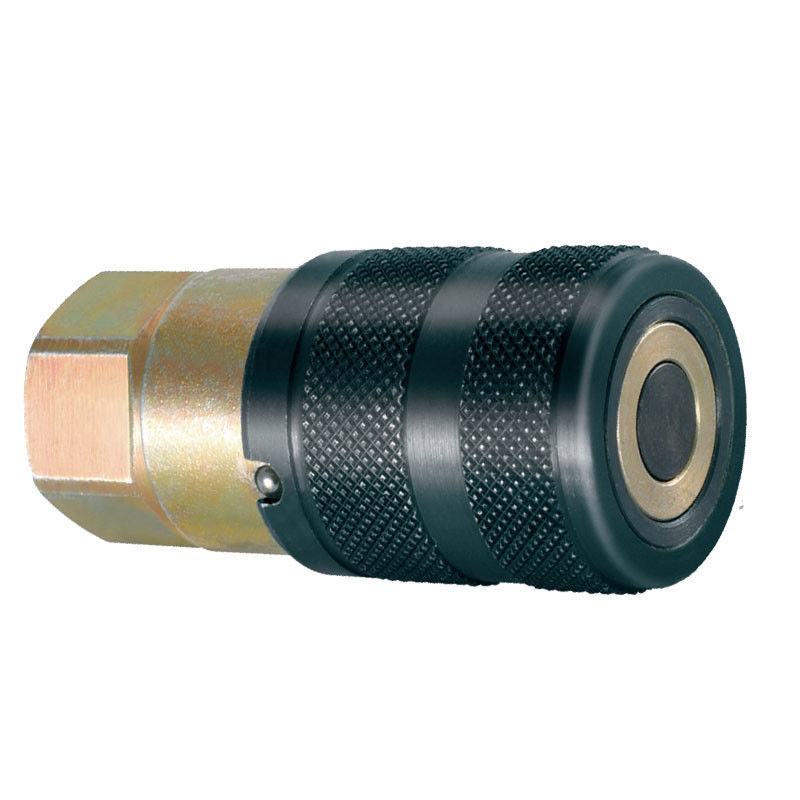

CB-SP-6FN-FF female coupler technical drawing, highlighting flat-face design and QPQ-treated sleeve
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1/4" | CB-S2S-6FN | 1/4’’ | 2.32 | 1.10 | 0.87 |
| 3/8" | CB-S3S-6FN | 3/8’’ | 2.87 | 1.26 | 1.18 |
| 3/8" | CB-S3S-6FN | 1/2’’ | 2.87 | 1.26 | 1.18 |
| 1/2" | CB-S4S-6FN | 1/2’’ | 3.31 | 1.50 | 1.42 |
| 1/2" | CB-S4S-6FN | 3/4’’ | 3.31 | 1.50 | 1.42 |
| 5/8" | CB-S5S-6FN | 1/2’’ | 3.23 | 1.65 | 1.42 |
| 5/8" | CB-S5S-6FN | 3/4’’ | 3.39 | 1.65 | 1.42 |
| 3/4" | CB-S6S-6FN | 3/4’’ | 3.74 | 1.89 | 1.61 |
| 3/4" | CB-S6S-6FN | 1’’ | 3.86 | 1.89 | 1.61 |
| 1" | CB-S8S-6FN | 1-1/4’’ | 4.33 | 2.17 | 2.17 |

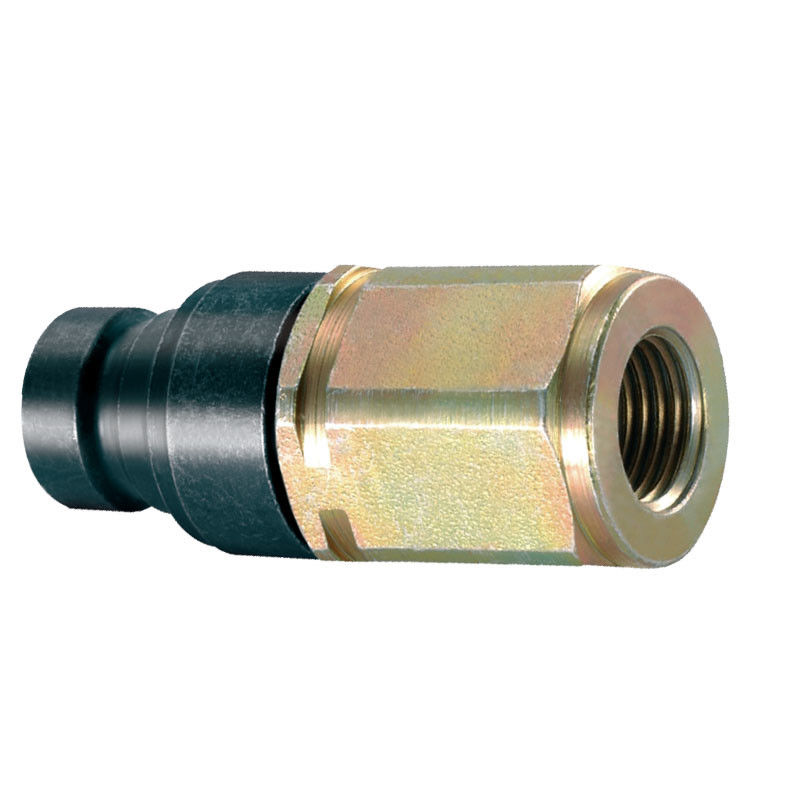

CB-SP-6FN-FF male flat-face quick coupling schematic with structural detail
| Body Size | PARTNO. | Thread | C | D | HEX |
| 1/4" | CB-P2S-6FN | 1/4’’ | 2.05 | 0.63 | 0.87 |
| 3/8" | CB-P3S-6FN | 3/8’’ | 2.52 | 0.78 | 1.18 |
| 3/8" | CB-P3S-6FN | 1/2’’ | 2.52 | 0.78 | 1.18 |
| 1/2" | CB-P4S-6FN | 1/2’’ | 2.91 | 0.96 | 1.42 |
| 1/2" | CB-P4S-6FN | 3/4’’ | 2.95 | 0.96 | 1.42 |
| 5/8" | CB-P5S-6FN | 1/2’’ | 2.87 | 1.06 | 1.42 |
| 5/8" | CB-P5S-6FN | 3/4’’ | 2.95 | 1.06 | 1.42 |
| 3/4" | CB-P6S-6FN | 3/4’’ | 3.39 | 1.18 | 1.61 |
| 3/4" | CB-P6S-6FN | 1’’ | 3.39 | 1.18 | 1.61 |
| 1" | CB-P8S-6FN | 1-1/4’’ | 3.54 | 1.42 | 2.17 |
Real-world product image of CB-SP-6FN-FF set, featuring push-to-connect and safety locking structure.
