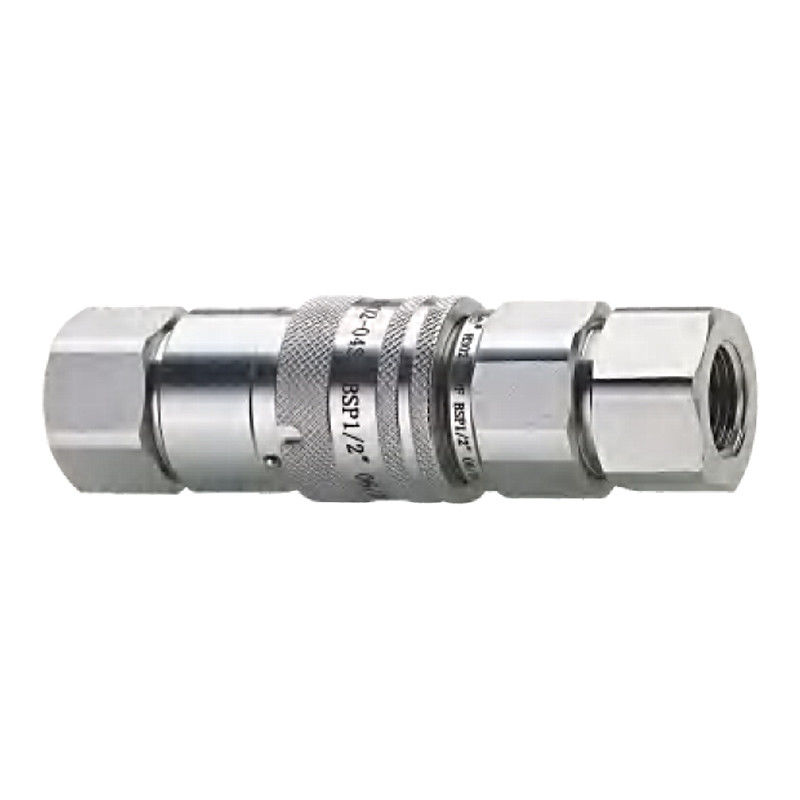

CB-SP-6FN Flat-Face Hydraulic Quick Coupler
Designed for Tough Jobs
The CB-SP-6FN is an ISO 16028-compliant flat-face hydraulic quick coupler designed for use in challenging environments—such as construction, railway maintenance, and mining. It’s built to minimize fluid loss, resist contamination, and endure frequent connection cycles.
If your hydraulic system needs clean break performance, CB-SP-6FN offers a reliable and safe solution with optional thread types, seal materials, and a structure that helps prevent accidental disconnection.
What Makes It Different
• Flat-Face Valve Design
No spillage, no mess. The valve remains closed when disconnected and opens only during full engagement—minimizing both oil loss and air entry.
• Rotating Sleeve Lock
After connection, rotate the sleeve to engage the lock. This helps prevent unintended disconnects from vibration or dragging, and shields the valve interior from dirt.
• Induction-Hardened Components
Valve seats and locking parts are heat-treated for durability. Even with high-frequency operation, wear is minimal.
• Zinc-Plated Carbon Steel Body
Built for real-world wear and tear. Optional QPQ surface treatment or stainless steel is available for corrosive environments.
• Interchangeable Design
Fully compatible with other ISO 16028 couplers—standard sizes from 1/4″ to 2″ available.
• Flat-Face vs. Poppet: Why It Matters
Compared to traditional poppet-style couplers, flat-face designs like CB-SP-6FN drastically reduce fluid loss and air inclusion. This is especially important in clean-critical applications like mobile service tools, chemical transfer, or field maintenance equipment.
The illustration below highlights the structural difference—and why flat-face valves are the preferred choice in high-standard hydraulic systems.

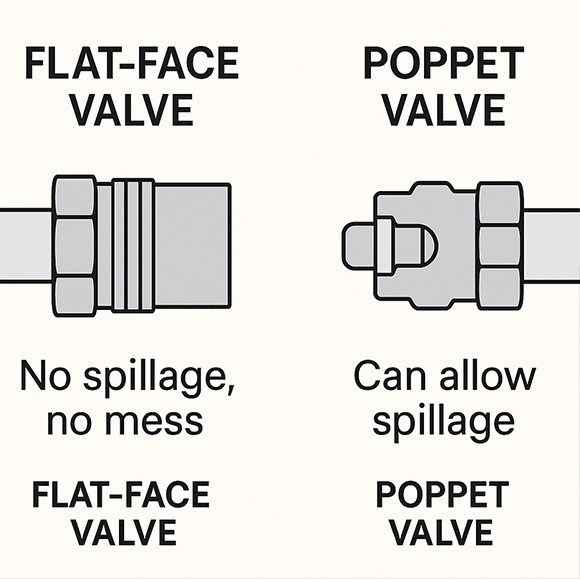

Flat-face valves (left) eliminate fluid spillage during disconnection, unlike traditional poppet-style valves (right) that may allow leakage.
Technical Specifications
Technical Specifications
| Size (in) |
Nominal Diameter (mm) |
Rated Pressure (PSI) |
Rated Flow (GPM) |
| 1/4″ |
6.3 |
5000 |
3 |
| 3/8″ |
8.6 |
4000 |
6 |
| 1/2″ |
11 |
4000 |
12 |
| 3/4″ |
15 |
3000 |
28 |
| 1″ |
18.5 |
3000 |
50 |
| 1 1/4″ |
25 |
3000 |
88 |
| 1 1/2″ |
25 |
2000 |
220 |
| 2″ |
39.2 |
2000 |
224 |
Temperature Range (NBR): –20 °C to +80 °C
Connection: Push-to-connect with sleeve lock
Media: Mineral oils (others possible with correct seals)
Dimensional Overview

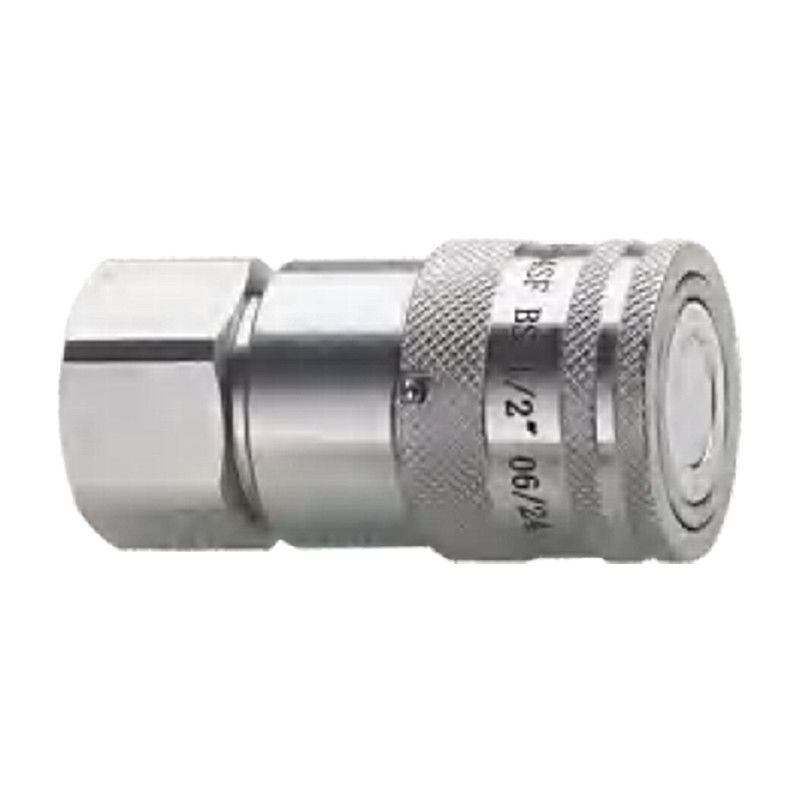

Female (Socket)
| PARTNO. |
Thread |
LS |
φD |
HS |
A |
| CB-S2S-6FN |
G1/4 NPT1/4 |
60 |
28 |
S22六角 |
14 |
| CB-S3S-6FN |
G3/8 NPT3/8 |
72 |
32 |
S24六角 |
14 |
| CB-S3S-6FN-A |
G1/2 NPT1/2 |
76 |
32 |
S27六角 |
16 |
| CB-S4S-6FN |
G1/2 NPT1/2 |
77 |
38 |
S32六角 |
16 |
| CB-S4S-6FN-A |
G3/4 NPT3/4 |
79 |
38 |
S36六角 |
22 |
| CB-S6S-6FN |
G3/4 NPT3/4 |
79 |
42 |
S36六角 |
22 |
| CB-S8S-6FN |
G1 NPT1 |
97 |
48 |
S41六角 |
23.5 |

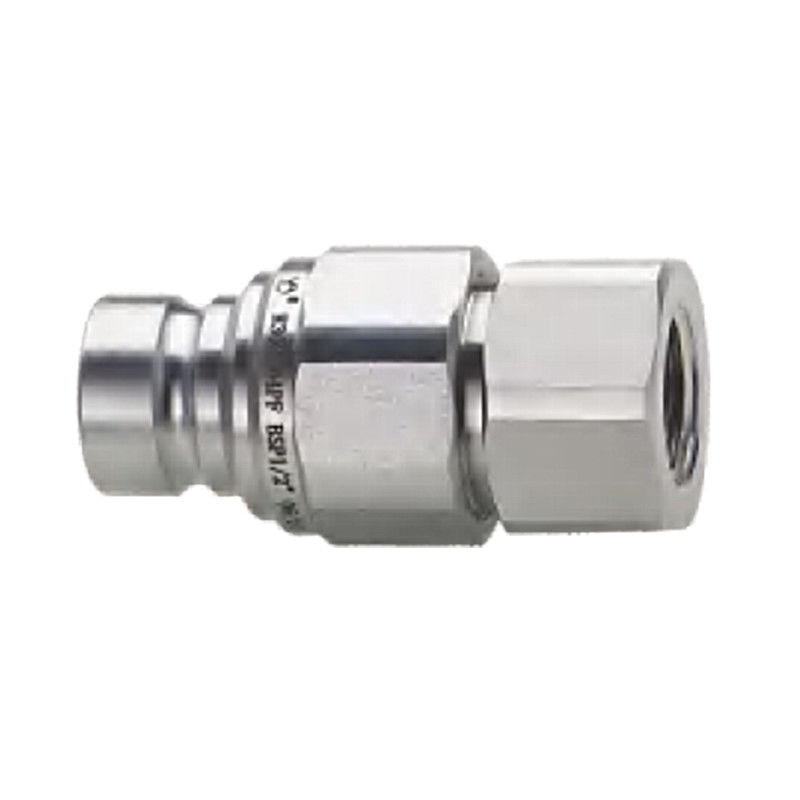

Male (Plug)
| PARTNO. |
Thread |
LP |
φC |
HP |
A |
| CB-P2S-6FN |
G1/4 NPT1/4 |
48 |
16 |
S22六角 |
14 |
| CB-P3S-6FN |
G3/8 NPT3/8 |
56 |
19.7 |
S24六角 |
14 |
| CB-P3S-6FN-A |
G1/2 NPT1/2 |
58 |
19.7 |
S27六角 |
16 |
| CB-P4S-6FN |
G1/2 NPT1/2 |
73 |
24.5 |
S32六角 |
16 |
| CB-P4S-6FN-A |
G3/4 NPT3/4 |
55 |
24.5 |
S36六角 |
20 |
| CB-P6S-6FN |
G3/4 NPT3/4 |
74 |
27 |
S36六角 |
22 |
| CB-P8S-6FN |
G1 NPT1 |
86 |
30 |
S41六角 |
23.5 |
Applications
• Excavator Attachments (Breakers, Shears)
Swap tools without dripping oil all over your jobsite.
• Railway Maintenance Tools
Track-side wrenches and lifts can be connected cleanly—even in gravel-filled yards.
• Underground Mining Equipment
Designed to resist dust and reduce oil loss when tools are changed frequently.
• Mobile Hydraulic Tools
High-pressure jacks and torque tools benefit from easy connect/disconnect with no mess.
• Industrial Transfer Lines
Useful in chemical plants or fluid handling systems that require frequent cleaning or changeover.
Available Options
| Option |
Description |
| Seal Material |
NBR standard, Viton for high-temp/oil, EPDM for water/glycol fluids |
| Thread Types |
G (BSPP), NPT, or Metric available |
| Dust Caps |
PVC caps standard; other colors optional |
| Material Upgrade |
316L stainless steel on request |
| Surface Treatment |
Optional QPQ anti-corrosion finish |
FAQs
Q1: Can I connect or disconnect CB-SP-6FN under pressure?
A: No. This coupler is designed for zero-residual-pressure systems. Always depressurize before operation.
Q2: Is CB-SP-6FN interchangeable with other ISO 16028 couplers?
A: Yes. As long as the mating part also follows ISO 16028 specs, connection is seamless.
Q3: Do you offer stainless steel?
A: Yes. A full 316L stainless steel version is available for use in harsh or corrosive environments.
Q4: Can I request special threads or seal materials?
A: Absolutely. We support custom orders—reach out with your specs.
