Place of Origin:
China
Brand Name:
Carterberg
Certification:
IATF16949
Model Number:
CB-SPM-1F
CB-SPM-1F is designed with adaptability in mind. Whether you require frequent changes in hose setup, multiple fluid types, or replacements in field equipment, this model delivers.
| Seal Material | Max Temperature |
| Buna-N | -40°C to +121°C |
| Neoprene | -54°C to +100°C |
| EPDM | -54°C to +149°C |
| FKM | -29°C to +204°C |
It is available in carbon steel, brass, and stainless steel options to match application needs.
| Size (Inches) | Rated Pressure (psi) | Flow Rate (gpm) |
|
1/8" |
4000 | 0.8 |
| 1/4" | 5000 | 3 |
| 3/8" | 4000 | 6 |
| 1/2" | 5000 | 12 |
| 3/4" | 4000 | 26 |
| 1" | 4000 | 50 |
| 1-1/4" | 2900 | 76 |
| 1-1/2" | 2175 | 99 |
| 2" | 1450 | 200 |
Operating Temperature: Based on selected seal
Mounting Options: Variety of thread sizes and styles

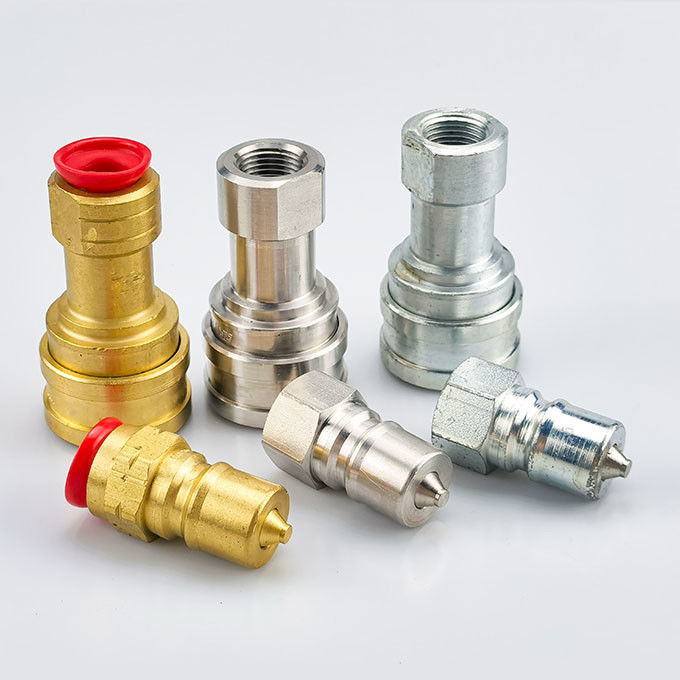

• Pairing plug and socket sets with varied threads

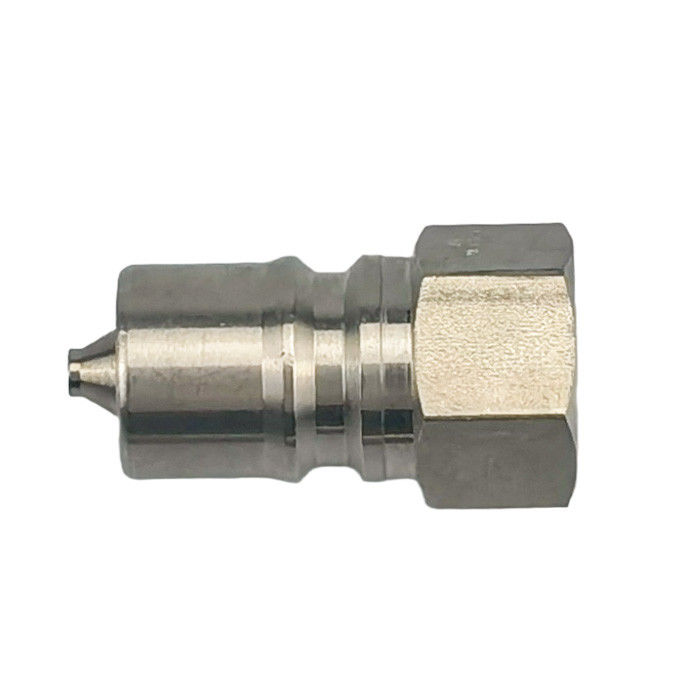

• Threaded plug showing ball-lock structure
| Body Size | PARTNO. | Thread | C | D | E | HEX |
| 1/8" | CB-P1S-1FG | 1/8-27 | 1.26 | 0.65 | 0.44 | 0.56 |
| 1/8" | CB-P1S-1FG | 1/8-27 | 1.26 | 0.65 | 0.44 | 0.56 |
| 1/4" | CB-P2S-1FG | 1/4-19 | 1.52 | 0.87 | 0.56 | 0.75 |
| 1/4" | CB-P2S-1FN | 1/4-18 | 1.52 | 0.87 | 0.56 | 0.75 |
| 3/8" | CB-P3S-1FG | 3/8-19 | 1.76 | 1.01 | 0.61 | 0.88 |
| 3/8" | CB-P3S-1FN | 3/8-18 | 1.76 | 1.01 | 0.61 | 0.88 |
| 1/2" | CB-P4S-1FG | 1/2-14 | 2.03 | 1.30 | 0.76 | 1.13 |
| 1/2" | CB-P4S-1FN | 1/2-14 | 2.03 | 1.30 | 0.76 | 1.13 |
| 3/4" | CB-P6S-1FG | 3/4-14 | 2.36 | 1.52 | 0.71 | 1.31 |
| 3/4" | CB-P6S-1FN | 3/4-14 | 2.36 | 1.52 | 0.71 | 1.31 |
| 1" | CB-P8S-1FG | 1-11 | 2.85 | 1.88 | 0.97 | 1.63 |
| 1" | CB-P8S-1FN | 1-11 | 2.85 | 1.88 | 0.97 | 1.63 |

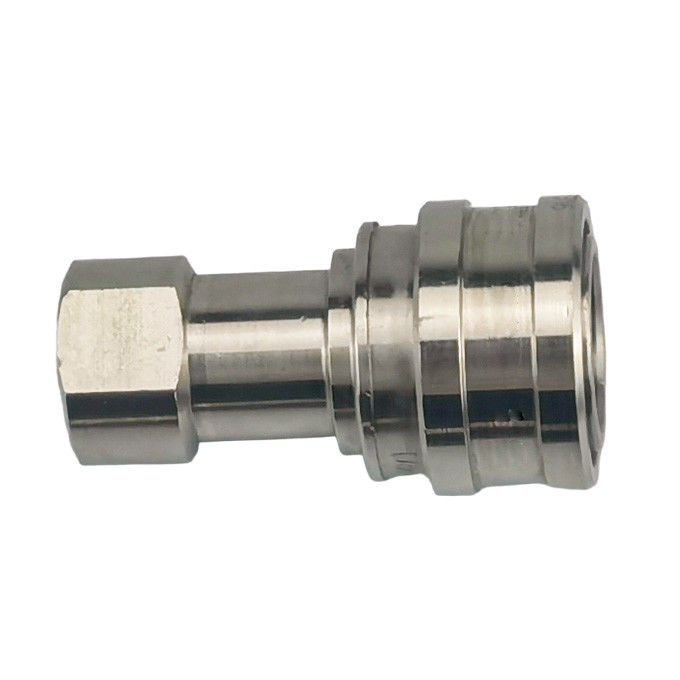

• Disconnected socket showing poppet valve
| Body Size | PARTNO. | Thread | A | B | Across Flats |
| 1/8" | CB-S1S-1FG | 1/8-27 | 1.91 | 0.98 | 0.56 |
| 1/8" | CB-S1S-1FN | 1/8-27 | 1.91 | 0.98 | 0.56 |
| 1/4" | CB-S2S-1FG | 1/4-19 | 2.26 | 1.17 | 0.75 |
| 1/4" | CB-S2S-1FN | 1/4-18 | 2.26 | 1.17 | 0.75 |
| 3/8" | CB-S3S-1FG | 3/8-19 | 2.56 | 1.42 | 0.88 |
| 3/8" | CB-S3S-1FN | 3/8-18 | 2.56 | 1.42 | 0.88 |
| 1/2" | CB-S4S-1FG | 1/2-14 | 2.96 | 1.86 | 1.13 |
| 1/2" | CB-S4S-1FN | 1/2-14 | 2.96 | 1.86 | 1.13 |
| 3/4" | CB-S6S-1FG | 3/4-14 | 3.48 | 2.22 | 1.31 |
| 3/4" | CB-S6S-1FN | 3/4-14 | 3.48 | 2.22 | 1.31 |
| 1" | CB-S8S-1FG | 1-11 | 4.13 | 2.61 | 1.75 |
| 1" | CB-S8S-1FN | 1-11 | 4.13 | 2.61 | 1.75 |
CB-SPM-1F is functionally interchangeable with:
• Parker 60 Series
• Faster HNV Series
• Aeroquip FD45
• Hansen HK Series
Check our Interchange Guide for reference by brand and port size.
| Feature | Benefit |
| Multi-configuration fit | Ideal for hybrid hydraulic systems |
| ISO 7241-B compatible | Matches top global standards |
| Modularity | One product, many applications |
| System-wide replaceability | Reduces SKU complexity |
Let our engineering team assist with seal compatibility, port fitting, and installation strategy.
