CB-SP-1F-SS Hydraulic Quick Coupling | Carterberg
The CB-SP-1F-SS is a precision-engineered ISO 7241-B quick coupling crafted entirely from 316 stainless steel, designed to perform reliably in high-temperature, aggressive fluid, and sanitary environments.
This model integrates a double shut-off poppet valve system and a ball-lock mechanism, ensuring secure, leak-free disconnection even under pressure. Its standard Viton seals provide excellent chemical and thermal stability.
Ideal for applications where fluid cleanliness, corrosion resistance, and thermal reliability are critical.
Key Features
• Fully meets ISO 7241-1 Series B dimensions
• Made from solid 316 stainless steel for superior corrosion resistance
• Double shut-off valve prevents fluid loss from both sides when disconnected
• Precision ball-lock retention system
• Standard Viton seals: compatible with hot oil, steam, solvents
• Clean connection/disconnection in demanding environments
• Available in BSPP, NPT, or SAE thread formats
Engineered for Clean Fluids & Harsh Media
With its all-316 stainless steel construction and Viton seals, the CB-SP-1F-SS excels in demanding industries:
• Withstands aggressive chemicals, saltwater, and cleaning agents
• Operating safely at up to +180°C
• Compatible with sanitary systems requiring frequent connection cycles
• Long-term resistance to corrosion, oxidation, and seal deformation
Technical Specifications
| Size (Inch) |
Pressure (psi) |
Flow Rate (GPM) |
| 1/8" |
2000 |
1 |
| 1/4" |
2000 |
3 |
| 3/8" |
2000 |
6 |
| 1/2" |
1500 |
18 |
| 3/4" |
1500 |
25 |
| 1" |
1000 |
50 |
• Temperature Range: -20°C to +180°C
• Seal Type: Viton (others available on request)
Product Visual & Dimensions

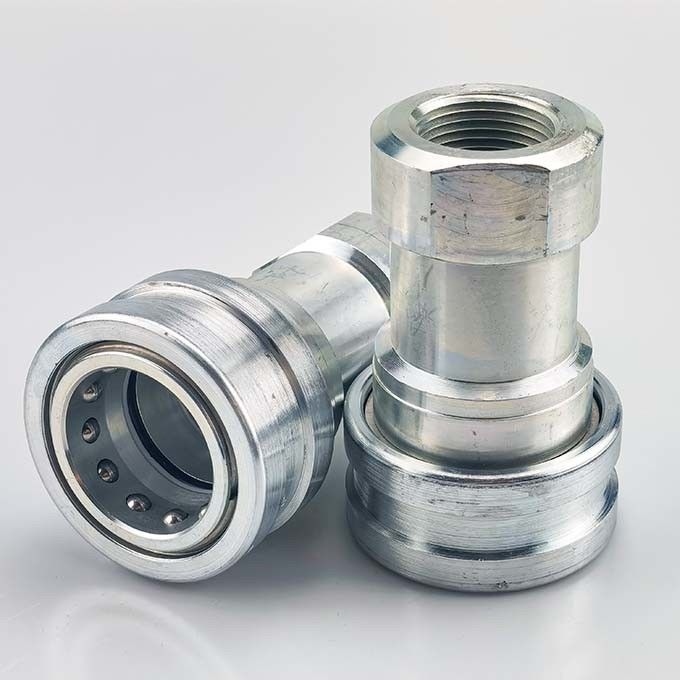

This product includes both plug and socket components.
Each part is precision-machined from 316 stainless steel, ensuring dimensional accuracy and clean surface finish.

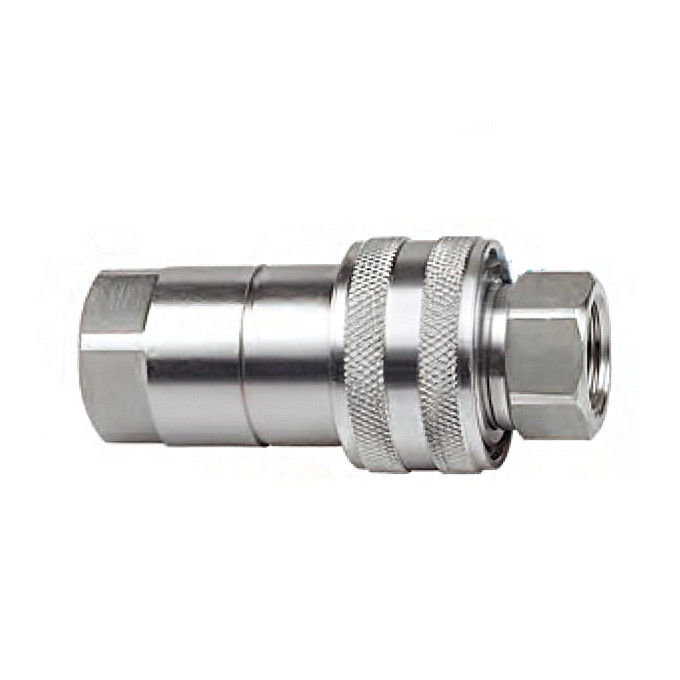

• Complete Set

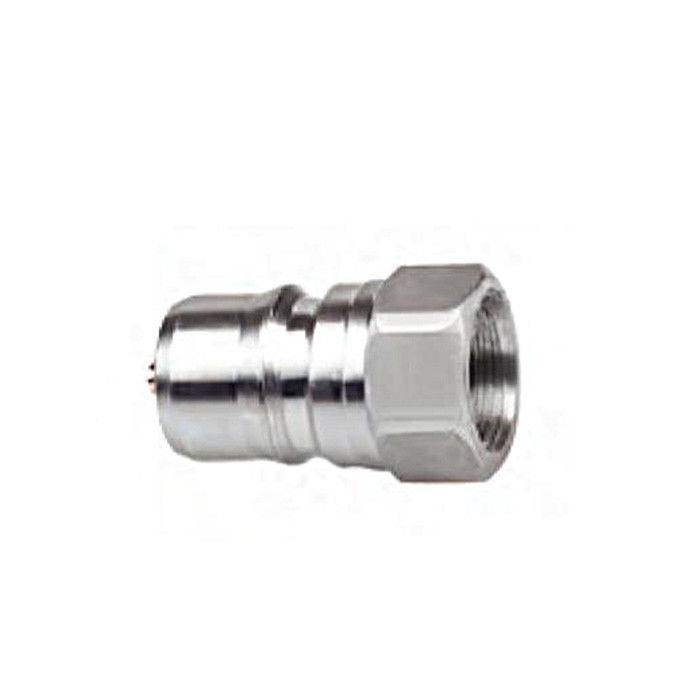

• Plug Component
| PARTNO. |
LP |
d |
C |
HEX2 |
A |
T |
| CB-P1M-1F-SS |
31 |
10.8 |
19 |
14 |
10 |
G1/8 NPT1/8 |
| CB-P2M-1F-SS |
36 |
14.2 |
22.8 |
19 |
13 |
G1/4 NPT1/4 |
| CB-P3M-1F-SS |
40 |
19 |
25 |
24 |
13 |
G3/8 NPT3/8 |
| CB-P4M-1F-SS |
46.5 |
23.5 |
28 |
27 |
17 |
G1/2 NPT1/2 |
| CB-P6M-1F-SS |
56 |
31.5 |
36 |
36 |
22 |
G3/4 NPT3/4 |
| CB-P8M-1F-SS |
63 |
37.8 |
35.5 |
41 |
23 |
G1 NPT1 |
• Socket Component
| PARTNO. |
LS |
￠D |
HEX1 |
A |
T |
| CB-S1M-1F-SS |
50 |
24 |
17 |
10 |
G1/8 NPT1/8 |
| CB-S2M-1F-SS |
58 |
28.5 |
19 |
13 |
G1/4 NPT1/4 |
| CB-S3M-1F-SS |
65 |
35 |
24 |
13 |
G3/8 NPT3/8 |
| CB-S4M-1F-SS |
73.4 |
42 |
30 |
17 |
G1/2 NPT1/2 |
| CB-S6M-1F-SS |
92 |
54 |
36 |
22 |
G3/4 NPT3/4 |
| CB-S8M-1F-SS |
103 |
65 |
41 |
23 |
G1 NPT1 |
Application Scenarios
CB-SP-1F-SS is optimized for:
• Chemical transfer and fluid skids
• Sanitary or hygienic piping
• Food and beverage processing equipment
• Offshore/marine systems
• Steam, oil, and solvent pipelines
• OEM systems in power generation and water treatment
Brand Interchange Compatibility
This coupling is fully interchangeable with:
• Parker 60 Series
• Faster HNV Series
• Aeroquip FD45
• Hansen HK Series
Why Choose CB-SP-1F-SS?
| Feature |
Benefit |
| 316 stainless steel |
No fluid loss during disconnection |
| Viton sealing |
Stable up to 180°C and resistant to aggressive fluids |
| Precision machined |
Clean flow, reliable sealing, minimal wear |
| Double shut-off |
No fluid loss during disconnection |
Need Help with Material or Seal Selection?
Let us assist with port sizing, fluid compatibility, and application-specific configurations.
Please contact us
