Place of Origin:
China
Brand Name:
Carterberg
Certification:
IATF16949
Model Number:
CB-SPB-1F-A
| Attribute | Value |
| Material | Brass |
| Rated Pressure | Up to 5000 psi |
| Operating Temperature | -20°C to +80°C |
| Max Flow Rate | Up to 50 GPM |
| Seal Options | Buna-N (standard), Viton, PTFE |
| Available Sizes | 1/4" – 1" |
| Threads | BSPP / NPT / SAE |
This model is provided as a complete plug + socket set. The socket features a poppet valve and dust cap; the plug uses a push-to-connect ball-lock system.

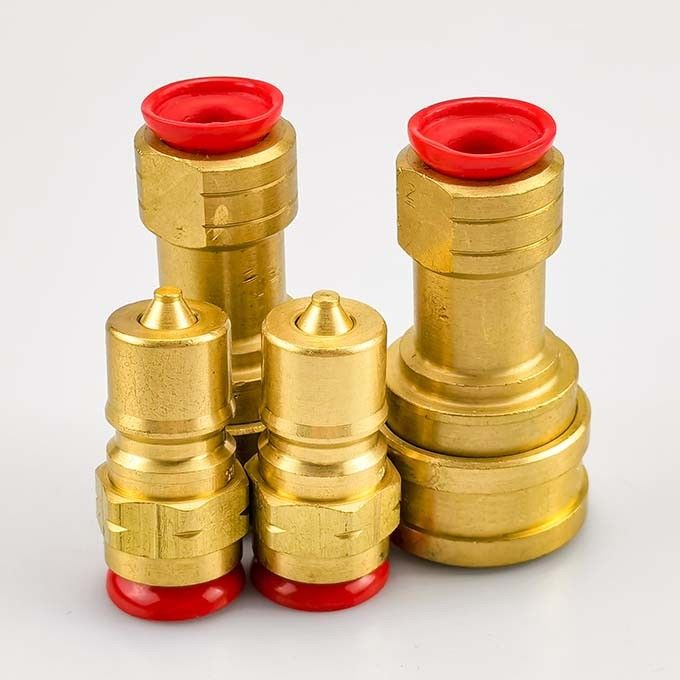

• Complete Set

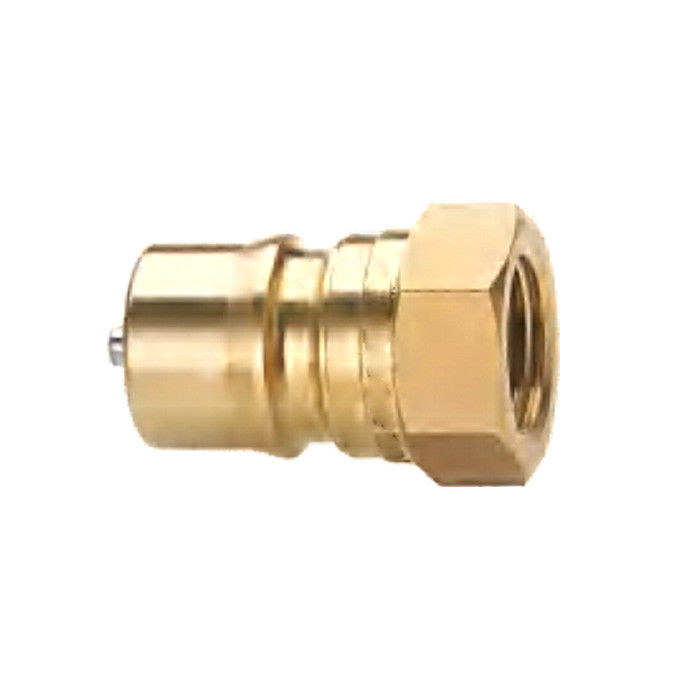

• Plug Component
| Body Size | PARTNO. | LP | C | HP | A | T |
| 1/4" | CB-P2B-1FG | 35.5 | 22.8 | 19*6 | 13 | G1/4 |
| 1/4" | CB-P2B-1FN | 35.5 | 22.8 | 19*6 | 13 | NPT1/4 |
| 3/8" | CB-P3B-1FG | 40 | 25 | 22*6 | 14 | G3/8 |
| 3/8" | CB-P3B-1FN | 40 | 25 | 22* | 14 | NPT3/8 |
| 1/2" | CB-P4B-1FG | 46.5 | 28 | 27*6 | 18 | G1/2 |
| 1/2" | CB-P4B-1FN | 46.5 | 28 | 27*6 | 18 | NPT1/2 |
| 3/4" | CB-P6B-1FG | 56 | 36 | 36*6 | 22 | G3/4 |
| 3/4" | CB-P6B-1FN | 56 | 36 | 36*6 | 22 | NPT3/4 |
| 1" | CB-P8B-1FG | 65 | 45 | 41*6 | 23 | G1 |
| 1" | CB-P8B-1FN | 65 | 45 | 41*6 | 23 | NPT1 |

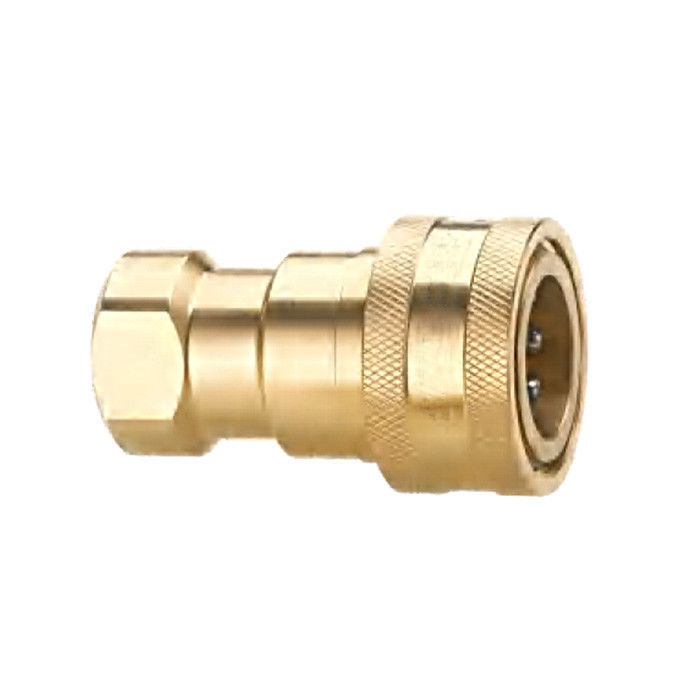

• Socket Component
| Body Size | PARTNO. | LS | Φ D | HS | A | T |
| 1/4" | CB-S2B-1FG | 58 | 28.5 | 19 | 13 | G1/4 |
| 1/4" | CB-S2B-1FN | 58 | 28.5 | 19 | 13 | NPT1/4 |
| 3/8" | CB-S3B-1FG | 65 | 35 | 22 | 14 | G3/8 |
| 3/8" | CB-S3B-1FN | 65 | 35 | 22 | 14 | NPT3/8 |
| 1/2" | CB-S4B-1FG | 74 | 44.5 | 28.5 | 18 | G1/2 |
| 1/2" | CB-S4B-1FN | 74 | 44.5 | 28.5 | 18 | NPT1/2 |
| 3/4" | CB-S6B-1FG | 92 | 54 | 36 | 22 | G3/4 |
| 3/4" | CB-S6B-1FN | 92 | 54 | 36 | 22 | NPT3/4 |
| 1" | CB-S8B-1FG | 105 | 65 | 41 | 23 | G1 |
| 1" | CB-S8B-1FN | 105 | 65 | 41 | 23 | NPT1 |
| Feature | Advantage |
| 5000 psi pressure rating | Suitable for medium/high-pressure systems |
| Ball-lock + poppet sealing | Ball-lock + poppet sealing |
| Brass material | Cost-effective corrosion protection |
| Dust cap design | Better protection during storage and transport |
Our team can help you confirm port sizes, select the correct seal, and match your application.
