CB-SPL-1F ISO 7241-B Quick Coupling | Carterberg
The Carterberg CB-SPL-1F is a full-featured ISO 7241-B quick coupling set, consisting of a precision-engineered plug and socket. Designed for secure, leak-free performance in hydraulic systems, this model features a durable ball-lock mechanism, self-sealing poppet valve, and body material options to suit diverse operating environments.
Built to meet ISO 7241-1 Series B dimensional standards, CB-SPL-1F ensures easy interchangeability and reliable function in both fixed and mobile hydraulic equipment.
Key Features
• ISO 7241 Series B dimensional compliance
• Self-sealing poppet valve for minimal fluid loss
• Ball-lock system for strong, secure retention
• Available in 304 or 316 stainless steel
• Thread formats: BSPP / NPT / SAE
• Suitable for high-corrosion environments and medium-pressure systems
Stainless Steel Material Options
The CB-SPL-1F coupling is available exclusively in 304 and 316 stainless steel, offering proven corrosion resistance across a wide range of hydraulic applications.
• 304 Stainless Steel is ideal for general-purpose fluid systems, industrial environments, and low-to-moderate corrosion risk areas.
• 316 Stainless Steel, with its higher molybdenum content, provides exceptional resistance to chlorides and harsh chemicals, making it the preferred choice for marine, chemical, and offshore use.
Both options ensure long-term durability, structural integrity, and consistent sealing under pressure.
Technical Specification Summary
• Working Pressure: up to 5000 psi (varies by size & material)
• Temperature Range: -20°C to +80°C
• Seal Material: Standard Buna-N (other options on request)
• Flow Rate: 3 GPM to 224 GPM depending on port size
• Interchangeable With: Parker 60, Aeroquip FD45, Hansen HK, Faster HNV

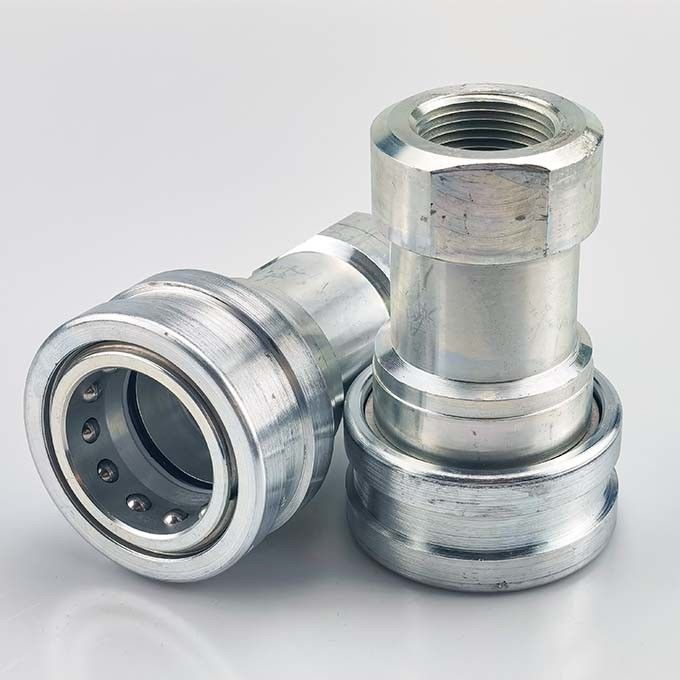

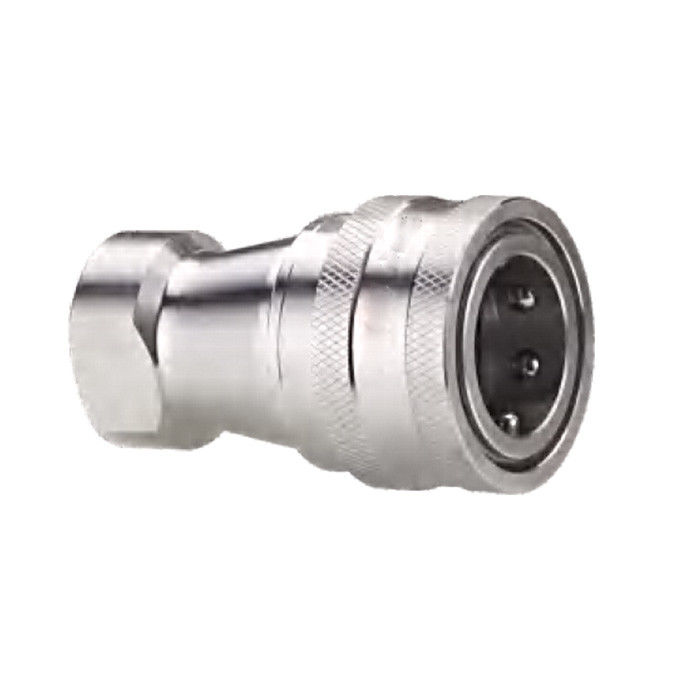

CB-SPL-1F Plug + Socket set
• Brass/stainless steel with knurled sleeve
• Push-to-connect operation with automatic valve closure
• Complete Set

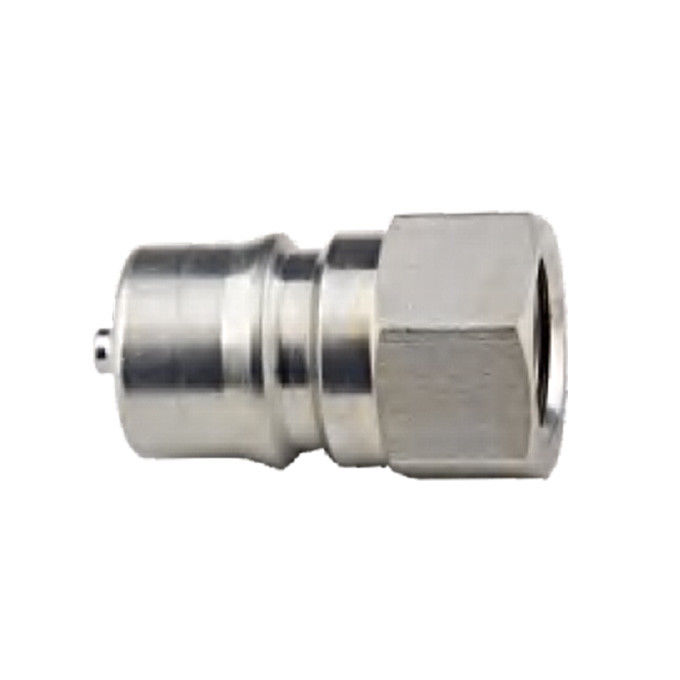

• Plug Component – CB-SPL-1F
| Body Size |
PARTNO. |
LP |
C |
HP |
A |
T |
| 1/8" |
CB-P2L-1F |
29 |
19 |
14 |
10 |
ZG1/8 |
| 1/4" |
CB-P2L-1F |
36 |
22.5 |
19 |
12.5 |
ZG1/4 |
| 3/8" |
CB-P3L-1F |
40 |
25 |
21 |
13 |
ZG3/8 |
| 1/2" |
CB-P4L-1F |
44 |
28 |
29 |
14 |
ZG1/2 |
| 3/4" |
CB-P6L-1F |
52 |
36 |
35 |
17 |
ZG3/4 |
| 1" |
CB-P8L-1F |
62 |
40 |
41 |
23 |
ZG1 |
| 1-1/4" |
CB-P10L-1F |
70 |
45 |
54 |
27 |
ZG1-1/4 |
| 1-1/2" |
CB-P12L-1F |
75 |
49 |
63 |
27 |
ZG1-1/2 |
| 2" |
CB-P16L-1F |
80 |
52 |
77 |
30 |
ZG2 |
| Body Size |
PARTNO. |
LS |
Φ D |
HS |
A |
T |
| 1/8" |
CB-S2L-1F |
48 |
24 |
14 |
10 |
ZG1/8 |
| 1/4" |
CB-S2L-1F |
58 |
28 |
19 |
12.5 |
ZG1/4 |
| 3/8" |
CB-S3L-1F |
65 |
35 |
21 |
13 |
ZG3/8 |
| 1/2" |
CB-S4L-1F |
72 |
45 |
29 |
14 |
ZG1/2 |
| 3/4" |
CB-S6L-1F |
88 |
55 |
35 |
17 |
ZG3/4 |
| 1" |
CB-S8L-1F |
102 |
65 |
41 |
23 |
ZG1 |
| 1-1/4" |
CB-S10L-1F |
115 |
79 |
54 |
27 |
ZG1-1/4 |
| 1-1/2" |
CB-S12L-1F |
124 |
79 |
63 |
27 |
ZG1-1/2 |
| 2" |
CB-S16L-1F |
132 |
109 |
77 |
30 |
ZG2 |
Application Scenarios
CB-SPL-1F couplings are widely used in:
• Mobile hydraulic equipment
• Agricultural sprayers
• Oilfield tools and chemical fluid transfer
• Water supply and sanitation lines
• General industrial machines
• Maintenance trucks and test stations
Compatible Brands (Cross Reference)
CB-SPL-1F is fully interchangeable with:
• Parker 60 Series
• Faster HNV Series
• Aeroquip FD45
• Hansen HK Series
Check thread and seal specs before replacing.
Why Choose CB-SPL-1F?
| Feature |
Benefit |
| Ball-lock retention |
Strong, vibration-resistant connection |
| Poppet valve |
Automatic shut-off during disconnection |
| ISO B standard |
Easy replacement in global systems |
| Material options |
stainless for corrosion |
