Product Description

CB-SPB-1F-KZD ISO 7241-B Hydraulic Quick Coupling

The Carterberg CB-SPB-1F-KZD is a medium-pressure hydraulic quick coupling designed to meet the dimensional requirements of ISO 7241-B. Built for applications where reliable sealing, frequent connection/disconnection, and material flexibility are essential, This model is currently available only in a brass body, suitable for medium-pressure fluid systems requiring excellent corrosion resistance and cost efficiency.

This coupling includes both plug and socket components in a matched set, ensuring secure and leak-free performance even under fluctuating fluid pressure conditions.

Key Features

• Complies with ISO 7241-1 Series B standard

• Self-sealing poppet valve for minimal fluid loss

• Excellent performance in medium-pressure systems (up to 1000 psi)

• Rated for continuous operation across -20°C to +150°C

• Offered in valved and non-valved configurations

• Thread options: BSPP, NPT, SAE

Technical Specifications

Size (Inches)	Rated Pressure (psi)	Flow Rate (GPM)
1/8"	1000	1
1/4"	1000	3
3/8"	1000	6
1/2"	1000	12
3/4"	1000	28
1"	1000	50
1_1/4"	800	75
1_1/2"	800	100
2"	800	150

Temperature Range: -20°C to +150°C

Compatible With

Carterberg CB-SPB-1F-KZD is fully interchangeable with leading ISO B quick coupling models, including:

• Parker 60 Series

• Faster HNV Series

• Aeroquip FD45 Series

• Hansen HK Series

This ensures easy retrofitting and global supply chain flexibility.

Typical Applications

• General industrial fluid lines

• Water transfer and agriculture systems

• Hydraulic tools and construction equipment

• OEM manufacturing lines

• Oil and chemical delivery

• Portable maintenance systems

Product Visual & Dimensions

The CB-SPB-1F-KZD quick coupling set includes both the plug and socket components, designed for ISO 7241-B dimensional standards. Below are the images and dimensional references for each part.

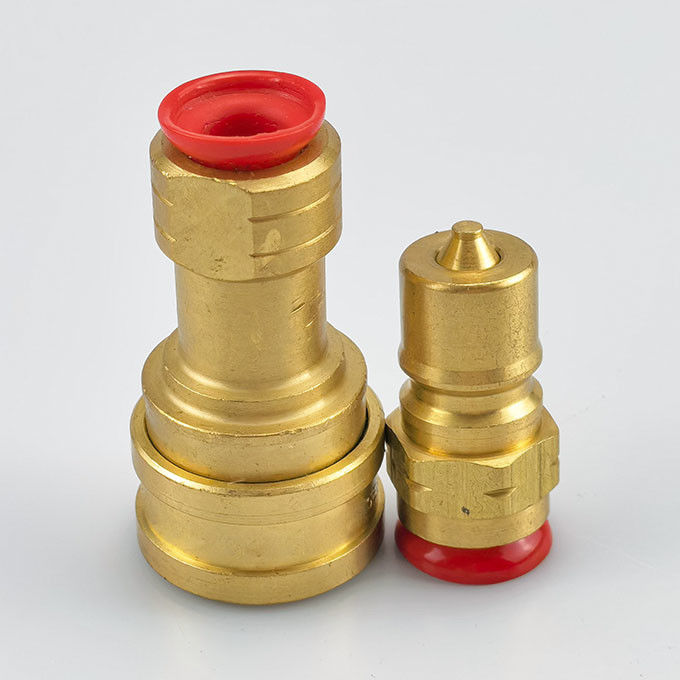

• Complete Set

cb spb 1f kzd iso 7241 b hydraulic quick coupling 0

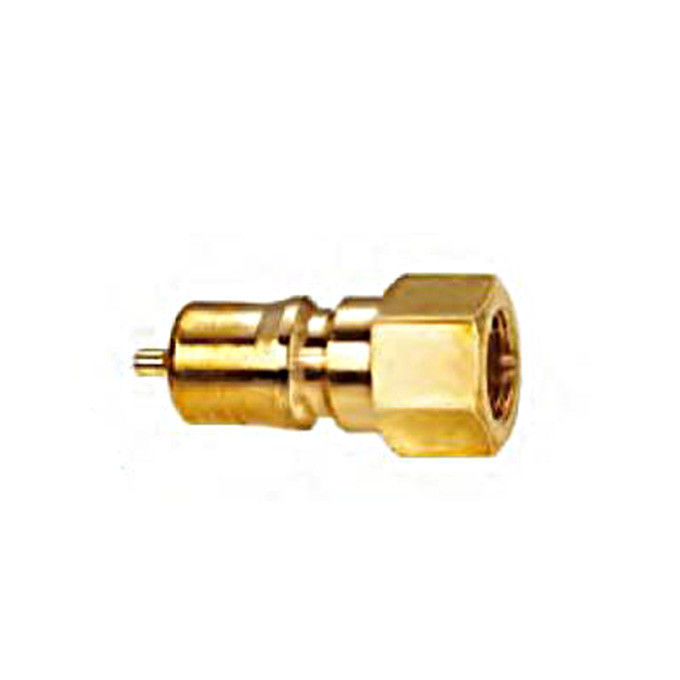

• Plug Component – CB-SPB-1M-KZD

PARTNO.	LP	d	C	HEX2	A	T
CB-P1B-KZD	29	10.8	19	14	8	G1/8
CB-P2B-KZD	36	14.2	22.5	17	12.5	ZG1/4
CB-P3B-KZD	40	19	25	22	13	ZG3/8
CB-P4B-KZD	44	23.5	28	27	14	ZG1/2
CB-P6B-KZD	52	31.4	36	36	17	ZG3/4
CB-P8B-KZD	62	37.8	40	41	23	ZG1
CB-P10B-KZD	70	45	45	52	27	ZG1-1/4
CB-P12B-KZD	75	50	49	60	27	ZG1-1/2
CB-P16B-KZD	80	70	52	77	30	ZG2

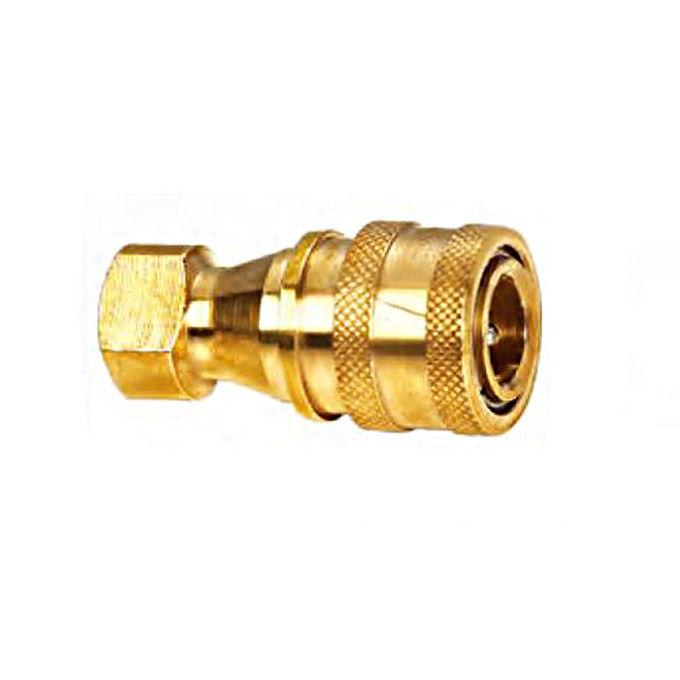

• Socket Component – CB-SPB-1F-KZD

PARTNO.	LS	Φ D	HEX1	A	T
CB-S1B-KZD	48	24	14	8	G1/8
CB-S2B-KZD	58	27	19	12.5	ZG1/4
CB-S3B-KZD	65	35	22	13	ZG3/8
CB-S4B-KZD	72.5	45	29	14	ZG1/2
CB-S6B-KZD	88	54	36	17	ZG3/4
CB-S8B-KZD	102	64.5	41	23	ZG1
CB-S10B-KZD	115	69	54	27	ZG1-1/4
CB-S12B-KZD	124	79	60	27	ZG1-1/2
CB-S16B-KZD	132	102	77	30	ZG2

Why Choose CB-SPB-1F-KZD?

Feature	Value
ISO 7241-B compliant	Global interchangeability
Self-sealing valve	Leak prevention during connection/disconnection
Wide size options	Available from 1/8" to 2"
Brass material construction	Adaptable to system demands
Medium-pressure rating	Reliable up to 1000 psi

• ISO 7241-B Series Overview

• Brand Interchange Guide for ISO B

• More Carterberg ISO 7241-B Models

Ready to Order?

Whether you're replacing an existing unit or sourcing for OEM assembly, our team can help identify the correct thread type, seal configuration, and port size.
