Place of Origin:
Shanghai, China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-7

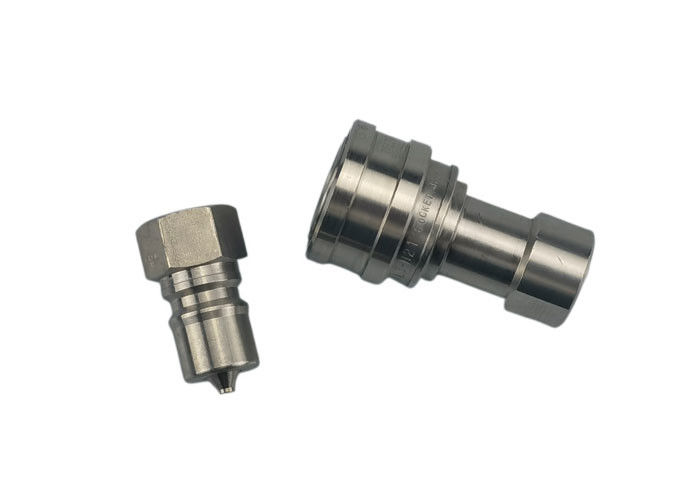

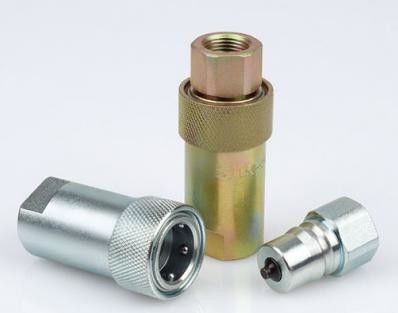

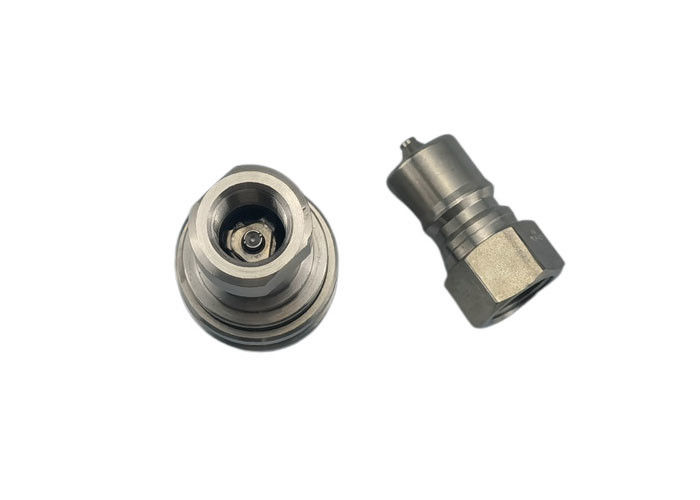

Industrial-Grade Two-Way Shut Off Quick Disconnect Couplings - NPT/BSP Thread (1/8" to 3") | Zinc-Plated Steel, Stainless Steel, Brass
Our Two-Way Shut Off Quick Disconnect Couplings are engineered for industrial fluid and gas transfer systems, available in zinc-plated steel, brass, and corrosion-resistant stainless steel. Designed for durability, these couplings feature precision-machined solid bar stock sockets/plugs and hardened critical components to ensure long service life.
Sizes range from 1/8" to 3" NPT/BSP threads, supporting diverse applications in hydraulic, pneumatic, and process systems. Integrated poppet valves prevent leakage when uncoupled and auto-open under rated pressure (up to [insert PSI/bar if available]) for seamless flow. The reliable ball-locking mechanism guarantees secure connections, while optional NBR, Viton, or EPDM seals accommodate temperatures from -20°C to 120°C (-4°F to 248°F).
Fully compatible with NITTO HSPcupla series, these couplings include dust caps/plugs for contamination protection. Ideal for oil, water, compressed air, and chemical media. Streamline operations with minimal downtime using our ISO-compliant, maintenance-friendly solutions. Request specifications for custom sealing or material requirements.
| PARTNO. | LS | ￠D | HEX1 | A | T |
| CB-HSP-02SF | 53 | 27.5 | 19 | 12 | G1/4 NPT1/4 |
| CB-HSP-03SF | 60 | 33 | 23 | 13 | G3/8 NPT3/8 |
| CB-HSP-04SF | 72 | 43 | 35 | 16 | G1/2 NPT1/2 |
| CB-HSP-06SF | 72 | 43 | 35 | 18 | G3/4 NPT3/4 |
| CB-HSP-08SF | 93 | 58 | 46 | 23 | G1 NPT1 |
| PARTNO. | LP | C | HEX2 | A | T |
| CB-HSP-02PF | 36 | 17.5 | 19 | 12 | G1/4 NPT1/4 |
| CB-HSP-03PF | 38 | 22.5 | 23 | 13 | G3/8 NPT3/8 |
| CB-HSP-04PF | 50 | 27.5 | 32 | 16 | G1/2 NPT1/2 |
| CB-HSP-06PF | 50 | 27.5 | 32 | 18 | G3/4 NPT3/4 |
| CB-HSP-08PF | 61 | 36 | 41 | 23 | G1 NPT1 |
