Place of Origin:
Shanghai, China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-4

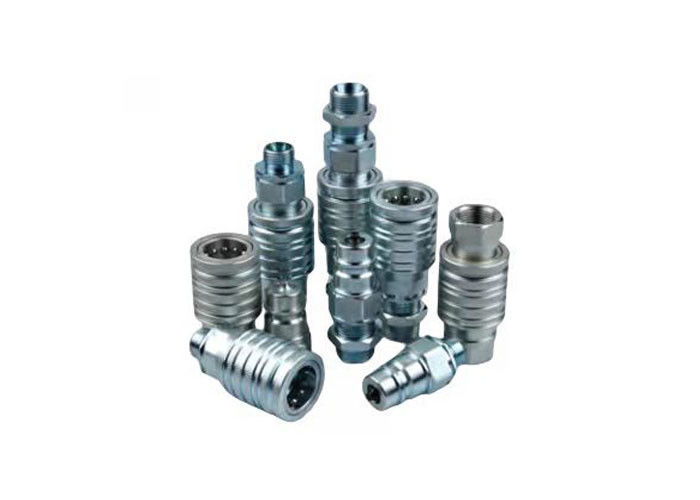

Applications: The Series brings to the industry a proven design for use on construction equipment, forestry equipment agricultural machinery, and oil tools.
Specifications:
| Body Size(in) | 1/2 |
| Rated Pressure(PSI) | 3000 |
| Rated Flow(GPM) | 12 |
| Temperature Range(std seals) | -20℃ to +120℃ |
| Standard seal material | NBR |
Features
1.Double acting sleeve for one handed push-to-Connect operation when coupler is clamp or bulkhead mounted.
2.Poppet valves available to prevent uncoupled leakage.
3.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
4.Critical parts are hardened for durability.
5.Dependable ball-locking mechanism holds the mating halves together.
6.Socket and plug are precision machined from solid bar stock.
7.The series conforms to the standard of ISO5675.
8.Compatible with PAPKER 4250 Series, FASTER CPV-CNV Series.
|
PARTNO. |
L |
￠D |
HEX1 |
HEX2 |
T |
|
CB-S5-04F3/8 |
105.5 |
38 |
27 |
27 |
3/8BSP NPT3/8 |
|
CB-S5-04F1/2 |
105.5 |
38 |
27 |
27 |
1/2BSP NPT1/2 |
|
CB-S5-04F3/4 |
105.5 |
38 |
34 |
34 |
3/4BSP NPT3/4 |
|
CB-S5-04FM14 |
105.5 |
38 |
27 |
27 |
M14*1.5 |
|
CB-S5-04FM16 |
105.5 |
38 |
27 |
27 |
M16*1.5 |
|
CB-S5-04FM18 |
105.5 |
38 |
27 |
27 |
M18*1.5 |
|
CB-S5-04FM22 |
105.5 |
38 |
27 |
27 |
M22*1.5 |
|
PARTNO. |
L |
D |
HEX1 |
HEX2 |
T |
|
CB-S5-04-8L |
109.5 |
38 |
27 |
27 |
M14*1.5 |
|
CB-S5-04-10L |
109.5 |
38 |
27 |
27 |
M16*1.5 |
|
CB-S5-04-12L |
109.5 |
38 |
27 |
27 |
M18*1.5 |
|
CB-S5-04-15L |
113.5 |
38 |
27 |
27 |
M22*1.5 |
|
CB-S5-04-18L |
113.5 |
38 |
27 |
27 |
M26*1.5 |
|
CB-S5-04-10S |
109.5 |
38 |
27 |
27 |
M18*1.5 |
|
CB-S5-04-12S |
109.5 |
38 |
27 |
27 |
M20*1.5 |
|
CB-S5-04-14S |
113.5 |
38 |
27 |
27 |
M22*1.5 |
|
CB-S5-04-16S |
113.5 |
38 |
27 |
27 |
M24*1.5 |
|
CB-S5-04-20S |
115.5 |
38 |
30 |
30 |
M30*2 |
