Place of Origin:
Shanghai, China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-4

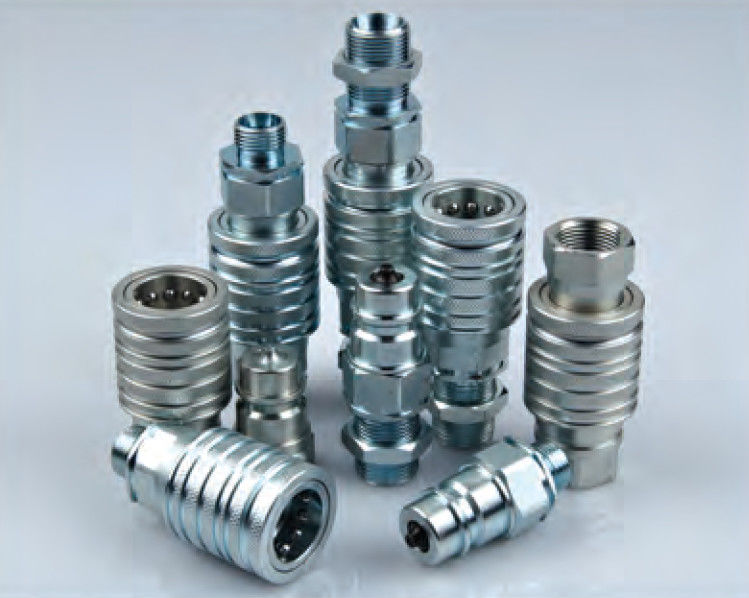

Applications: The ISO5675 Series brings to the industry a proven design for use on construction equipment, forestry Equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Specifications:
| Body Size(in) | 1/2 | ||||
| Rated Pressure(PSI) | 4000 | ||||
| Rated Flow(GPM) | 12 | ||||
| Temperature Range(std seals) | -20℃ to +120℃ | ||||
| Standard seal material | NBR | ||||
Features
|
PARTNO. |
LS |
￠D |
HEX1 |
T |
|
CB-S5-04SF3/8 |
66 |
38 |
27 |
3/8BSP NPT3/8 |
|
CB-S5-04SF1/2 |
66 |
38 |
27 |
1/2BSP NPT1/2 |
|
CB-S5-04SF3/4 |
69 |
38 |
34 |
3/4BSP NPT3/4 |
|
CB-S5-04SFM14 |
66 |
38 |
27 |
M14*1.5 |
|
CB-S5-04SFM16 |
66 |
38 |
27 |
M16*1.5 |
|
CB-S5-04SFM18 |
66 |
38 |
27 |
M18*1.5 |
|
CB-S5-04SFM22 |
66 |
38 |
27 |
M22*1.5 |
|
PARTNO. |
LP |
d |
C |
HEX2 |
T |
|
CB-S5-04PF3/8 |
61.5 |
20.5 |
27 |
27 |
3/8BSP NPT3/8 |
|
CB-S5-04PF1/2 |
44 |
20.5 |
27 |
27 |
1/2BSP NPT1/2 |
|
CB-S5-04PF3/4 |
64.5 |
20.5 |
34 |
34 |
3/4BSP NPT3/4 |
|
CB-S5-04PFM14 |
61.5 |
20.5 |
27 |
27 |
M14*1.5 |
|
CB-S5-04PFM16 |
61.5 |
20.5 |
27 |
27 |
M16*1.5 |
|
CB-S5-04PFM18 |
61.5 |
20.5 |
27 |
27 |
M18*1.5 |
|
CB-S5-04PFM22 |
44 |
20.5 |
27 |
27 |
M22*1.5 |
