Name: 4000PSI 0.75'' Steel Push And Pull ISO 5675 Couplers
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: CB-4
Availability: InStock

Home > products > Hydraulic Quick Couplings >

4000PSI 0.75'' Steel Push And Pull ISO 5675 Couplers

0.75'' ISO 5675 Couplers

4000PSI ISO 5675 Couplers

IATF16949 iso coupling

Place of Origin:

Shanghai, China

Brand Name:

carterberg

Certification:

IATF16949

Model Number:

CB-4

Request A Quote

4000PSI 0.75'' Steel Push And Pull ISO 5675 Couplers

Product Details

Material:

Steel

Standard:

ISO5675

Size:

3/8, 1/2, 3/4

Rated Pressure:

4000

Rated Flow:

Temperature:

-20to+120

Applications:

Hydraulic

Compatible With:

PAPKER 4250 Series, FASTER CPV-CNV Series

Highlight:

0.75'' ISO 5675 Couplers

4000PSI ISO 5675 Couplers

IATF16949 iso coupling

Payment & Shipping Terms

Minimum Order Quantity

Negotiation

Price

Negotiation

Packaging Details

carton

Delivery Time

7-20 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union

Supply Ability

5000~20000 pc/month

hydraulic-quick-couplings iso-series iso-7241-a

Get Best Price

PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa

Get Best Price

PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa NPT Standard

Get Best Price

Flat Face Hydraulic High Pressure Quick Coupler With Locking Sleeve 1/4"

Get Best Price

86-021-37214610

Contact Now

Product Description

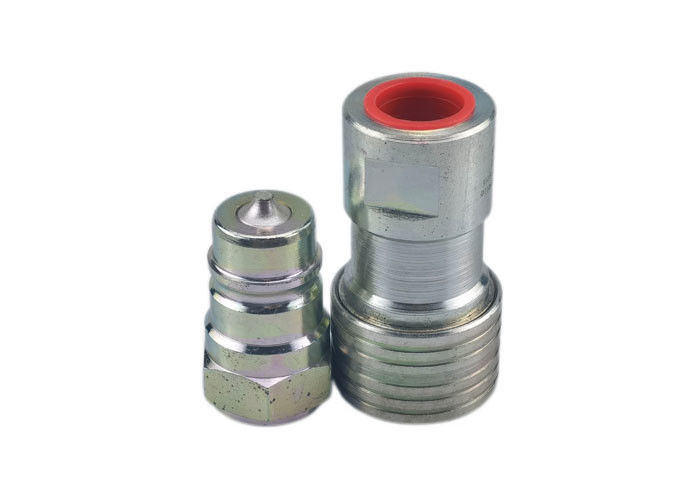

Steel PUSH AND PULLTYPE HYDRAULIC QUICK COUPLING ISO5675 Coupler

CB-4 Series brings to the industry a proven design for use on construction equipment, forestry equipment agricultural machinery, and oil tools.

Standard Materials

zinc-plated steel
Seals: NBR, Viton, EPDM

Features

Double acting sleeve for one handed push-to-Connect operation when coupler is clamp or bulkhead mounted.
Poppet valves available to prevent uncoupled leakage.
Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
Critical parts are hardened for durability.
Dependable ball-locking mechanism holds the mating halves together.
Socket and plug are precision machined from solid bar stock.
CB-4 series conforms to the standard of ISO5675.
Compatible with PAPKER 4250 Series, FASTER CPV-CNV Series.

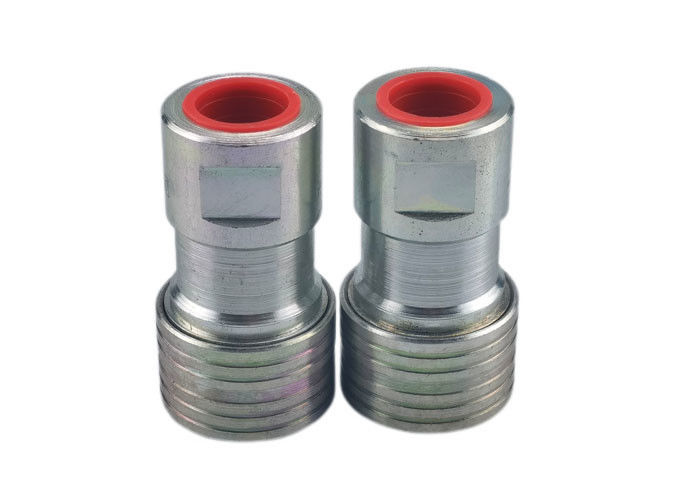

4000PSI 0.75'' Steel Push And Pull ISO 5675 Couplers 0

Body Size	PARTNO.	Thread	A	B	HEX
3/8"	CB-S3S-4FN-A	3/8-18	66	38	27
3/8"	CB-S3S-4FG-A	3/8-19	66	38	27
1/2"	CB-S4S-4FN-A	1/2-14	66	38	27
1/2"	CB-S4S-4FG-A	1/2-14	66	38	27
3/4"	CB-S6S-4FN-A	3/4-14	69	38	34
3/4"	CB-S6S-4FG-A	3/4-14	69	38	34

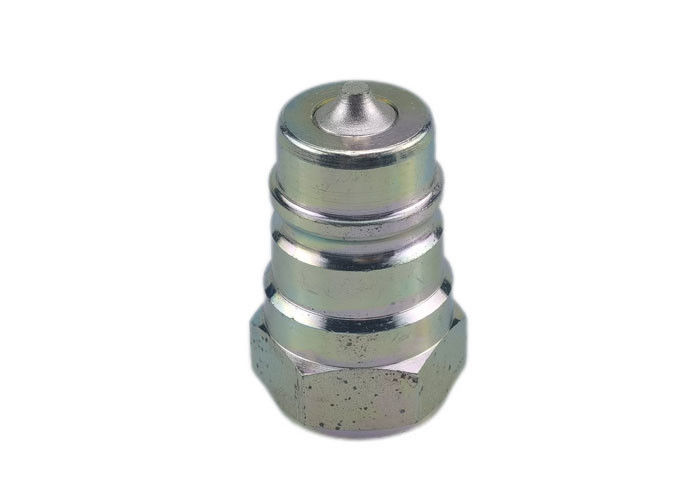

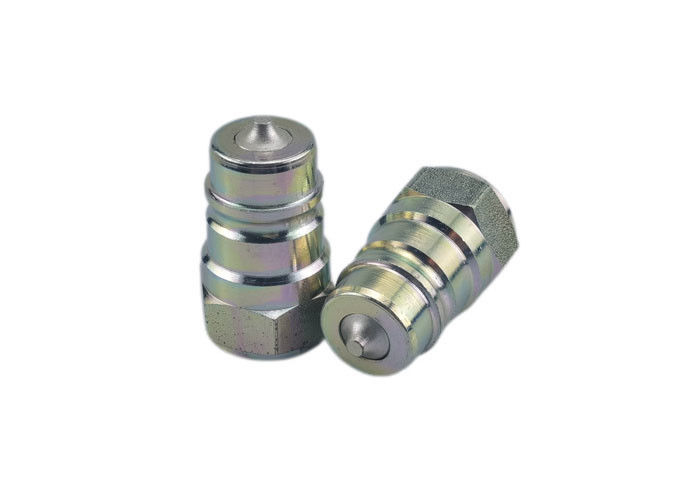

4000PSI 0.75'' Steel Push And Pull ISO 5675 Couplers 1

Body Size	PARTNO.	Thread	A	B	HEX
3/8"	CB-P3S-4FN-A	3/8-18	27	61,5	27
3/8"	CB-P3S-4FG-A	3/8-19	27	61,5	27
1/2"	CB-P4S-4FN-A	1/2-14	27	44	27
1/2"	CB-P4S-4FG-A	1/2-14	27	44	27
3/4"	CB-P6S-4FN-A	3/4-14	34	64,5	34
3/4"	CB-P6S-4FG-A	3/4-14	34	64,5	34
