Place of Origin:
Shanghai, China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-SPB-1F

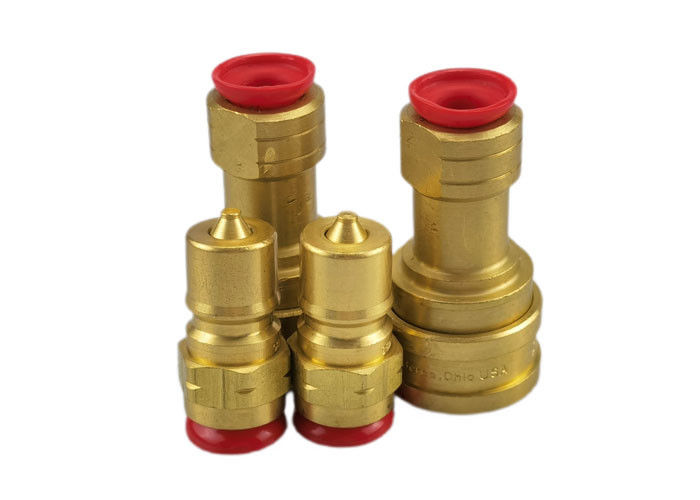

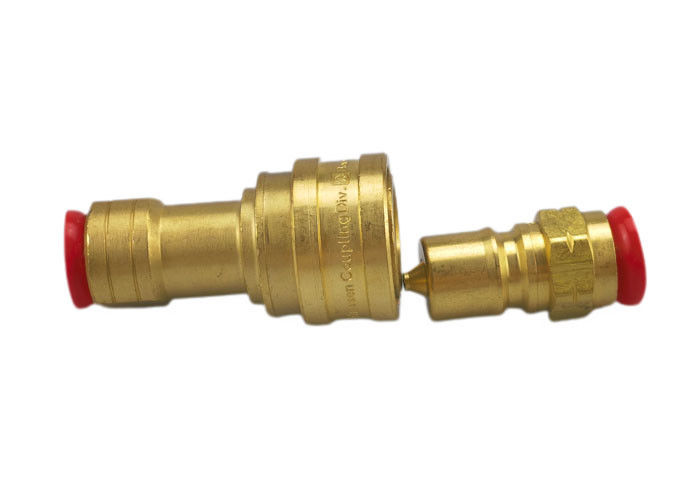

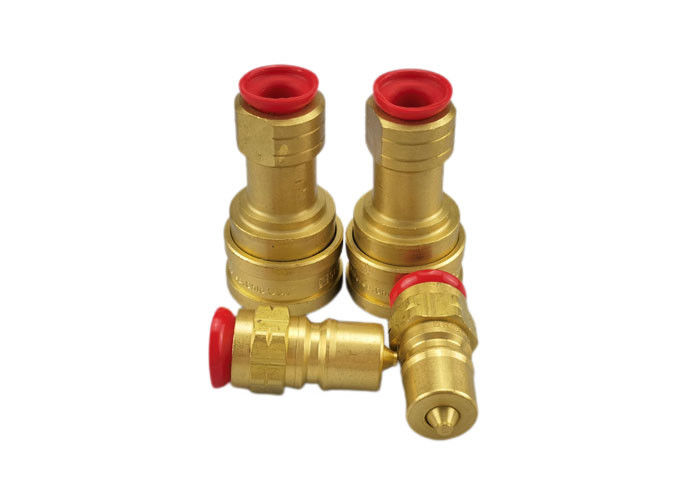

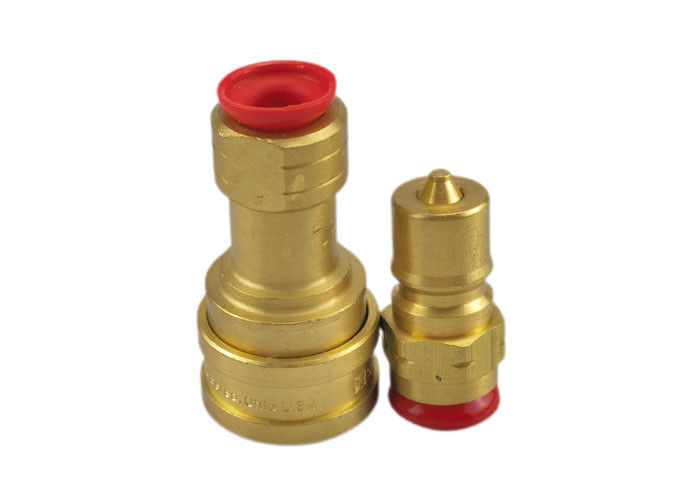

Medium-pressure High Performance Pneumatic And Hydraulic Brass Quick Coupling
Carterberg, one of the independent brands of PMC, represents diversified fluid connector series products, covering hydraulic quick couplings, pneumatic quick couplings and pneumatic couplings. Provide customers with high quality products, and OEM for international first-class brands.
CB-3 Series Quick Couplings are used across the spectrum of hydraulic applications. Primarily used with hydraulic fluid. CB-3 couplings are also used with chemicals, water, steam, and some gases.
Standard Materials
Features
| Body Size | PARTNO. | Thread | A | B | Across Flats |
| 1/8" | CB-S1B-1FG | 1/8-27 | 1.91 | 0.98 | 0.56 |
| 1/8" | CB-S1B-1FN | 1/8-27 | 1.91 | 0.98 | 0.56 |
| 1/4" | CB-S2B-1FG | 1/4-19 | 2.26 | 1.17 | 0.75 |
| 1/4" | CB-S2B-1FN | 1/4-18 | 2.26 | 1.17 | 0.75 |
| 3/8" | CB-S3B-1FG | 3/8-19 | 2.56 | 1.42 | 0.88 |
| 3/8" | CB-S3B-1FN | 3/8-18 | 2.56 | 1.42 | 0.88 |
| 1/2" | CB-S4B-1FG | 1/2-14 | 2.96 | 1.86 | 1.13 |
| 1/2" | CB-S4B-1FN | 1/2-14 | 2.96 | 1.86 | 1.13 |
| 3/4" | CB-S6B-1FG | 3/4-14 | 3.48 | 2.22 | 1.31 |
| 3/4" | CB-S6B-1FN | 3/4-14 | 3.48 | 2.22 | 1.31 |
| 1" | CB-S8B-1FG | 1-11 | 4.13 | 2.61 | 1.75 |
| 1" | CB-S8B-1FN | 1-11 | 4.13 | 2.61 | 1.75 |
| Body Size | PARTNO. | Thread | C | D | E | HEX |
| 1/8" | CB-P1B-1FG | 1/8-27 | 1.26 | 0.65 | 0.44 | 0.56 |
| 1/8" | CB-P1B-1FG | 1/8-27 | 1.26 | 0.65 | 0.44 | 0.56 |
| 1/4" | CB-P2B-1FG | 1/4-19 | 1.52 | 0.87 | 0.56 | 0.75 |
| 1/4" | CB-P2B-1FN | 1/4-18 | 1.52 | 0.87 | 0.56 | 0.75 |
| 3/8" | CB-P3B-1FG | 3/8-19 | 1.76 | 1.01 | 0.61 | 0.88 |
| 3/8" | CB-P3B-1FN | 3/8-18 | 1.76 | 1.01 | 0.61 | 0.88 |
| 1/2" | CB-P4B-1FG | 1/2-14 | 2.03 | 1.30 | 0.76 | 1.13 |
| 1/2" | CB-P4B-1FN | 1/2-14 | 2.03 | 1.30 | 0.76 | 1.13 |
| 3/4" | CB-P6B-1FG | 3/4-14 | 2.36 | 1.52 | 0.71 | 1.31 |
| 3/4" | CB-P6B-1FN | 3/4-14 | 2.36 | 1.52 | 0.71 | 1.31 |
| 1" | CB-P8B-1FG | 1-11 | 2.85 | 1.88 | 0.97 | 1.63 |
| 1" | CB-P8B-1FN | 1-11 | 2.85 | 1.88 | 0.97 | 1.63 |
