Place of Origin:
Shanghai, China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-SP-1F-SS

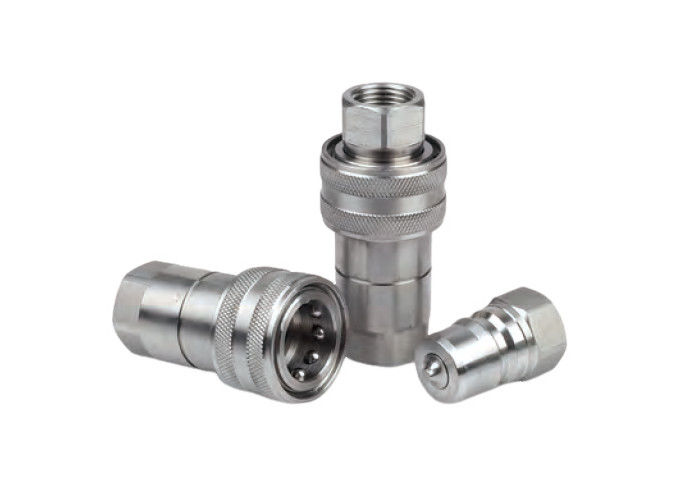

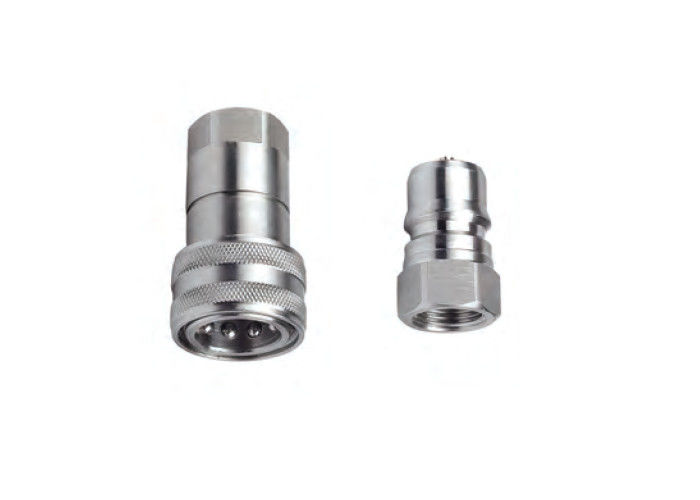

1/2'' CB-1 Series stainless steel 316 close type hydraulic quick coupling
The couplings are used in construction equipment, hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.These are used in construction quipment, Forestry equipment, agricultural machinery, oil tools, Oil equipment, steel mill machinery, and other demanding hydraulic applications
Features
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Dependable ball-locking mechanism holds the mating halves together.
4.Socket and plug are precision machined from solid bar stock.
5.The series conforms to the standard of ISO 7241-B.
6.Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series
Specifications:
| Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 3500 | 3000 | 3000 | 3000 | 3000 | 2000 |
| Rated Flow(GPM) | 1 | 3 | 6 | 12 | 28 | 50 |
| Temperature Range | -20℃ to +120℃ | |||||
| Stander seal material | VITON | |||||
| PARTNO. | LS | ￠D | HEX1 | A | T |
| CB-S1M-1F-SS | 50 | 24 | 17 | 10 | G1/8 NPT1/8 |
| CB-S2M-1F-SS | 58 | 28.5 | 19 | 13 | G1/4 NPT1/4 |
| CB-S3M-1F-SS | 65 | 35 | 24 | 13 | G3/8 NPT3/8 |
| CB-S4M-1F-SS | 73.4 | 42 | 30 | 17 | G1/2 NPT1/2 |
| CB-S6M-1F-SS | 92 | 54 | 36 | 22 | G3/4 NPT3/4 |
| CB-S8M-1F-SS | 103 | 65 | 41 | 23 | G1 NPT1 |
| PARTNO. | LP | d | C | HEX2 | A | T |
| CB-P1M-1F-SS | 31 | 10.8 | 19 | 14 | 10 | G1/8 NPT1/8 |
| CB-P2M-1F-SS | 36 | 14.2 | 22.8 | 19 | 13 | G1/4 NPT1/4 |
| CB-P3M-1F-SS | 40 | 19 | 25 | 24 | 13 | G3/8 NPT3/8 |
| CB-P4M-1F-SS | 46.5 | 23.5 | 28 | 27 | 17 | G1/2 NPT1/2 |
| CB-P6M-1F-SS | 56 | 31.5 | 36 | 36 | 22 | G3/4 NPT3/4 |
| CB-P8M-1F-SS | 63 | 37.8 | 35.5 | 41 | 23 | G1 NPT1 |
