Place of Origin:
Shanghai, China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-ISOA

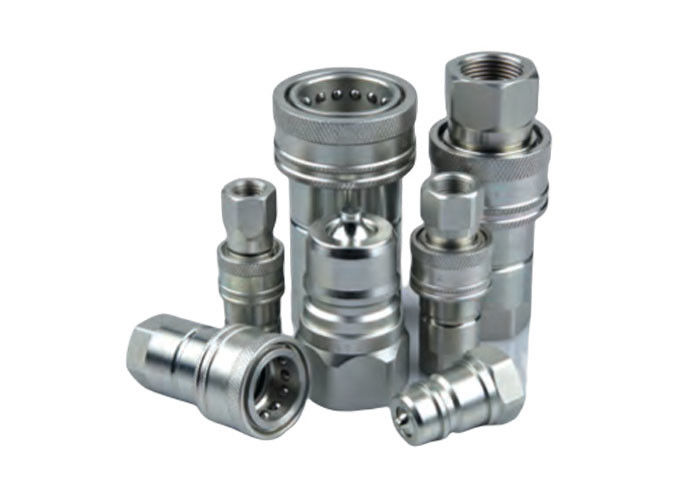

ISOA NEW CLOSE TYPE HYDRAULIC QUICK COUPLING STEEL
Applications: The ISOA Series bring to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, oil equipment steel mill machinery, and other demanding hydraulic applications.
Specifications:
| BODY SIZE | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature range(std seals) | Standard seal material |
| 1/4" | 5000 | 3 | -20℃~+120℃ | NBR |
| 3/8" | 5000 | 6 | ||
| 1/2" | 4000 | 12 | ||
| 3/4" | 4000 | 28 | ||
| 1" | 3000 | 50 |
ISOA Series couplings feature:
· New valve design, it can resistance damage from high flow and the pressure of impulse that providing advanced performance.
· Poppet valves available to prevent uncoupled leakage.
· Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
· Critical parts are hardened for durability.
· Dependable ball-locking mechanism holds the mating halves together.
· Socket and plug are precision machined from solid bar stock.
· New Chrome plating treatment provides advanced anti-rust performance
· LSQ-ISOA series conforms to the standard of ISO 7241-A
· Compatible with PARKER 6600 Series,FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series
| Body Size | PARTNO. | LS | Φ D | HS | A | T |
| 1/4" | CB-S2SF-ISOA | 50 | 26 | S19*6 | 13 | G1/4 NPT1/4 |
| 3/8" | CB-S3SF-ISOA | 60 | 31.5 | S22*6 | 16 | G3/8 NPT3/8 |
| 1/2" | CB-S4SF-ISOA | 68 | 39 | S27*6 | 18 | G1/2 NPT1/2 |
| 3/4" | CB-S6SF-ISOA | 80 | 48 | S34*6 | 20.5 | G3/4 NPT3/4 |
| 1" | CB-S8SF-ISOA | 99.5 | 53 | S41*6 | 20.5 | G1 NPT1 |
| Body Size | PARTNO. | LP | d | C | HP | A | T |
| 1/4" | CB-P2SF-ISOA | 38.5 | 11.8 | 15 | S19*6 | 13 | G1/4 NPT1/4 |
| 3/8" | CB-P3SF-ISOA | 39 | 17.3 | 19 | S22*6 | 16 | G3/8 NPT3/8 |
| 1/2" | CB-P4SF-ISOA | 44 | 20.5 | 29 | S27*6 | 18 | G1/2 NPT1/2 |
| 3/4" | CB-P6SF-ISOA | 55 | 29 | 29 | S34*6 | 20.5 | G3/4 NPT3/4 |
| 1" | CB-P8SF-ISOA | 66 | 34.3 | 35 | S41*6 | 20.5 | G1 NPT1 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
