Place of Origin:
Shanghai, China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-2

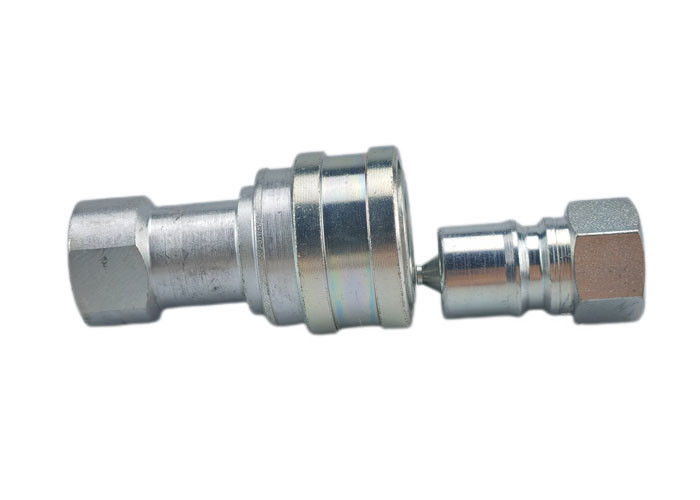

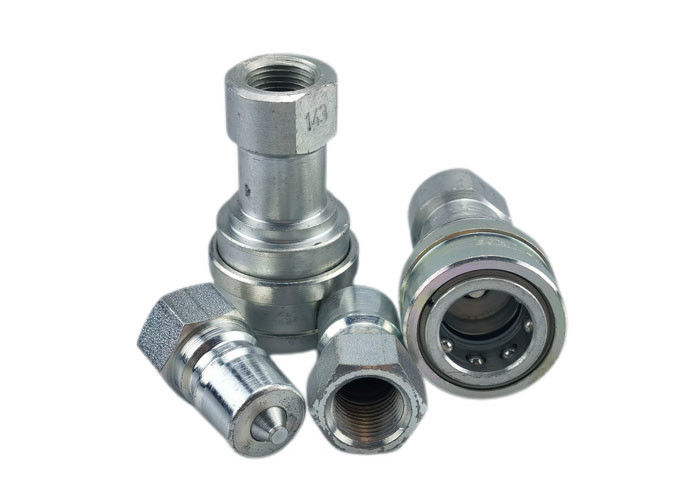

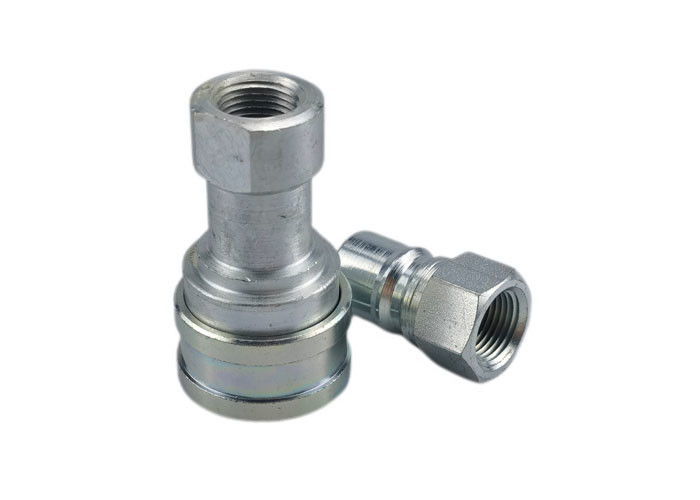

Ultra Pressure 10000PSI hydraulic quick connect coupling High Pressure Quick Coupler
CB-2-A Series is a high pressure hydraulic quick connect coupling designed to operate at pressures up to 10,000 psi. Its ball lock mechanism makes it a true quick connect coupling, as opposed to thread-to-connect couplings that are typically used in high pressure hydraulics. Body size is 1/4".
Standard Materials
Features
| Body Size | PARTNO. | Thread | A | B | Hex |
| 1/4" |
CB-S2S-2MN-A CB-S2S-2FN-A |
1/4-18 1/4-18 |
2.69 2.64 |
1.18 1.18 |
0.88 0.88 |
| 3/8" |
CB-S3S-2MN-A CB-S3S-2FN-A |
3/8-18 3/8-18 |
2.69 2.69 |
1.18 1.18 |
0.88 0.88 |
| Body Size | PARTNO. | Thread | C | D | Hex |
| 1/4" |
CB-P2S-2MN-A CB-P2S-2FN-A |
1/4-18 1/4-18 |
2.59 2.54 |
0.97 0.97 |
0.88 0.88 |
| 3/8" |
CB-P3S-2MN-A CB-P3S-2FN-A |
3/8-18 3/8-18 |
2.59 2.59 |
0.97 0.97 |
0.88 0.88 |
